VVDI2 and VVDI Prog Program Porsche Paramera Key

It’s a good tutorial of Porsche Paramera key programming using VVDI Prog to read BCM and Xhorse VVDI2 key programmer to program a new key.

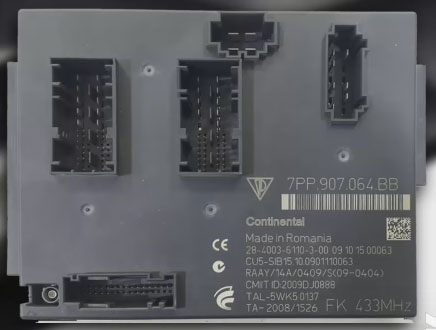

Porsche BCM:
Porsche BCM
Tools needed:
VVDI PROG programmer
VVDI2 key programmer
(both made by the Xhorse)
Two main steps of Paramera key programming:
  1. Read BCM data
  2. Program a dealer key
III. Write the key
3 steps for making a new key to Paramera… Here you go.
Step 1 VVDI Prog read BCM

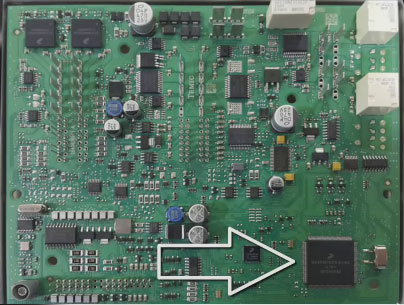

Disassemble the BCM

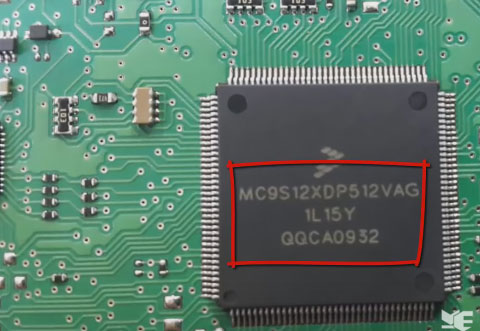

Find out the mc9s12xd512vag chip
Disassemble the BCM
mc9s12xd512vag chip
Run VVDI Prog software
Select type: 4-immobilizer, brand: porsche, type: BCM-1L15Y
Select type
Click on Connection Diagram

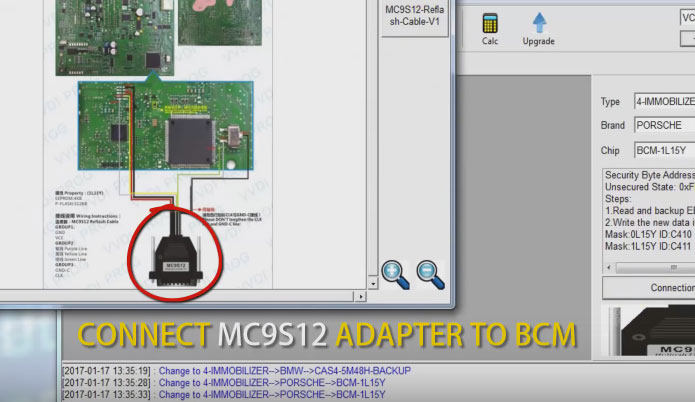

Connect the MC9S12 adapter to the BCM
Connect the MC9S12 adapter

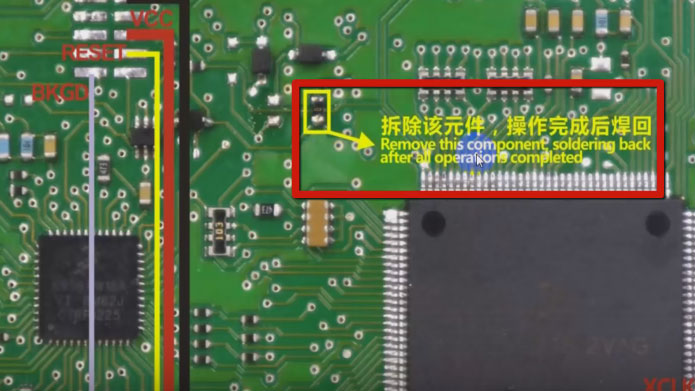

Remove the component and solder back after the operation is complete
Remove the component

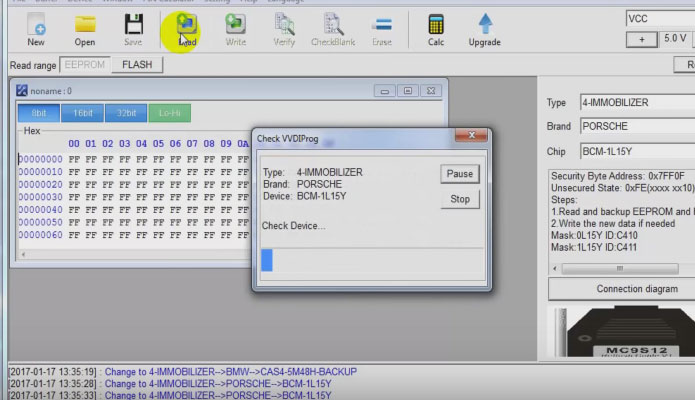

Read BCM data
Then save the bin file
Step 2 Xhorse VVDI2 Key Programmer Porsche prepare dealer key

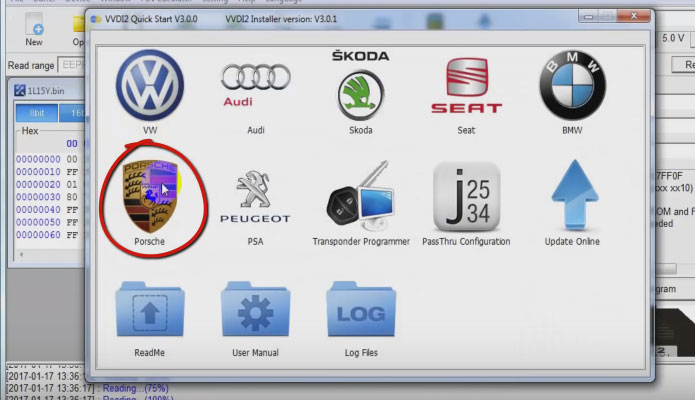

Open VVDI 2 Quick Start
Go to vvdi porsche

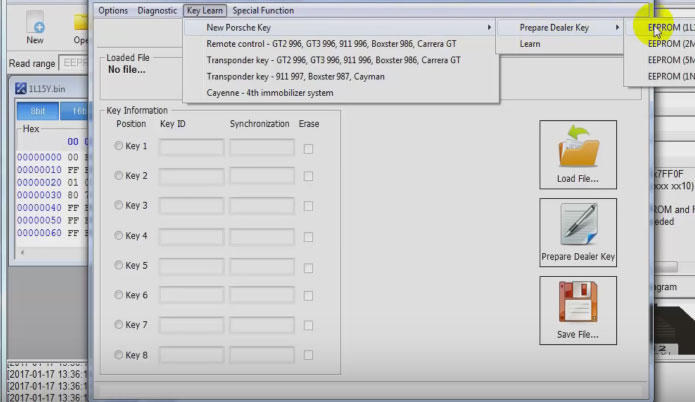

Select Key Learn-> new porsche key->prepare dealer key-> EEPROM 01L15Y
Select Key Learn
Load file: open the bin file (read by vvdi prog)
open the bin file
Select key 3

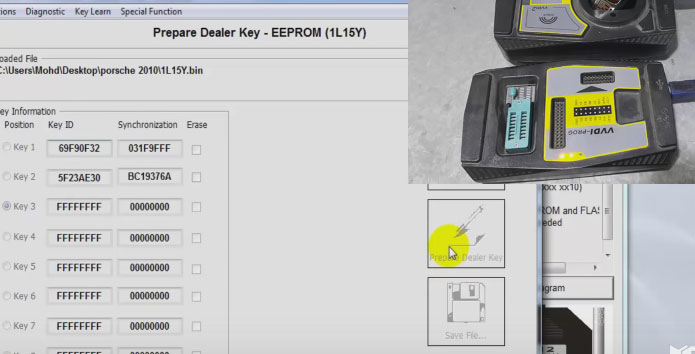

Prepare dealer key

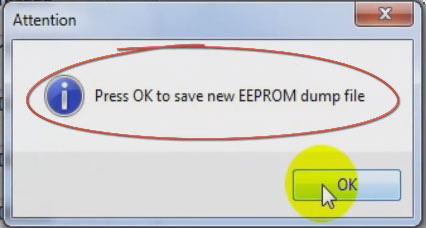

Click on OK to save the new EEPROM dump file

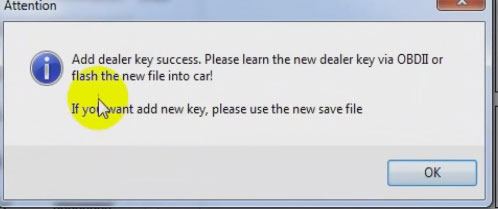

Add dealer key successfully! Please learn the new dealer key via OBDII or flash the new file to the car. If you want to add a new key, please use the new save file!
Add dealer key successfully!
Step 3 VVDI programmer add a new key
Back to VVDI-Prog ecu programmer

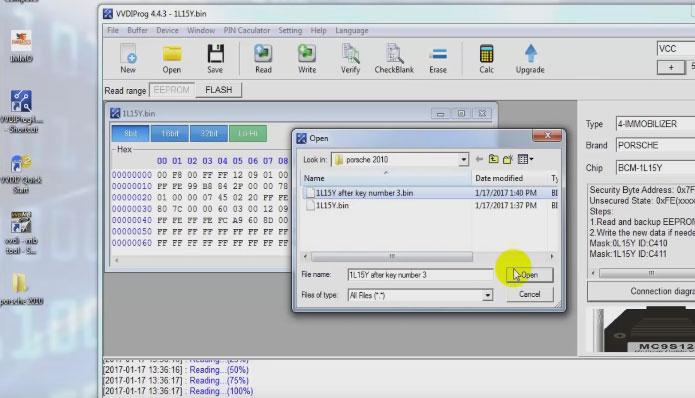

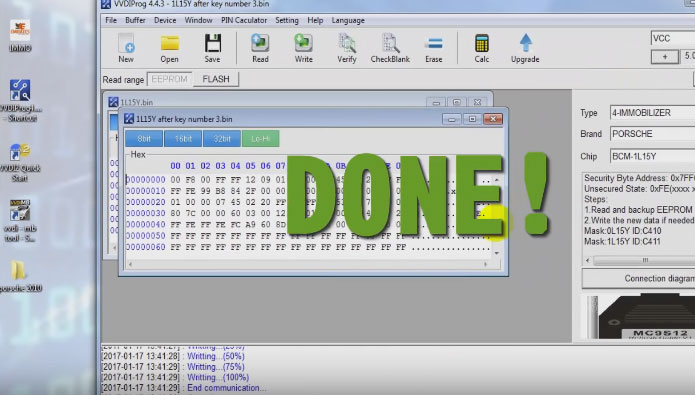

Open the new bin file
Open the new bin file

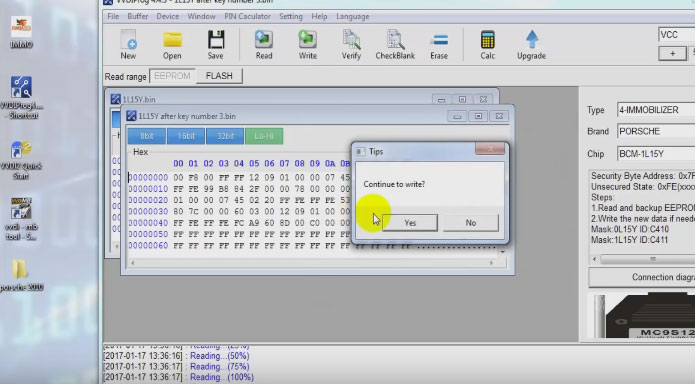

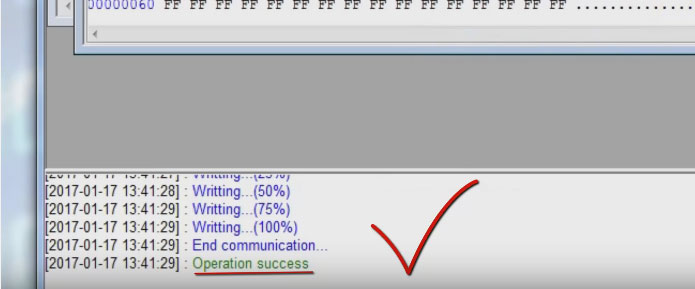

Operation success!
Operation success
