How to Register and Update Xhorse VVDI Key Tool Plus Pad Tablet?

Like other Xhorse tools, VVDI Key Tool plus pad is required to register an account, bind the pad with serial number ro use for the first time.  You can update software, app, firmware or database via WiFi connection after registration.









Register the Key Tool Plus Pad

Power on the pad

Select “Quick Login (Register)”, fill in your phone number, send and input the verification code, tap “Login”.

Xhorse Vvdi Key Tool Plus Registration Bind Machine Update 01



Then come to Bind device

Enter your account user name, device serial number and verification code, then tap “Bind”.

Note: after the device is bound to the account, it will share its bonus points within the account.

After binding the machine successfully, press Start to use.

Xhorse Vvdi Key Tool Plus Registration Bind Machine Update 02

Xhorse Vvdi Key Tool Plus Registration Bind Machine Update 03



To synchronize the device.

The current device needs to be synchronized, later it will automatically take you to the Update center, after that please complete the device synchronization for normal usage.

Xhorse Vvdi Key Tool Plus Registration Bind Machine Update 04



And you will have activation list.

Xhorse Vvdi Key Tool Plus Registration Bind Machine Update 05



Go to Update VVDI Key Tool Plus Pad.

In the home menu, choose a language, for example “Chinese” (because I use the red version).

Current available language: Chinese, English, Thai, French, Polish, Hindi (more language will be developed in the feature)

Xhorse Vvdi Key Tool Plus Registration Bind Machine Update 06



Agree the Disclaimer.

Complete the initialization.



Tap “Set” -> System setting.

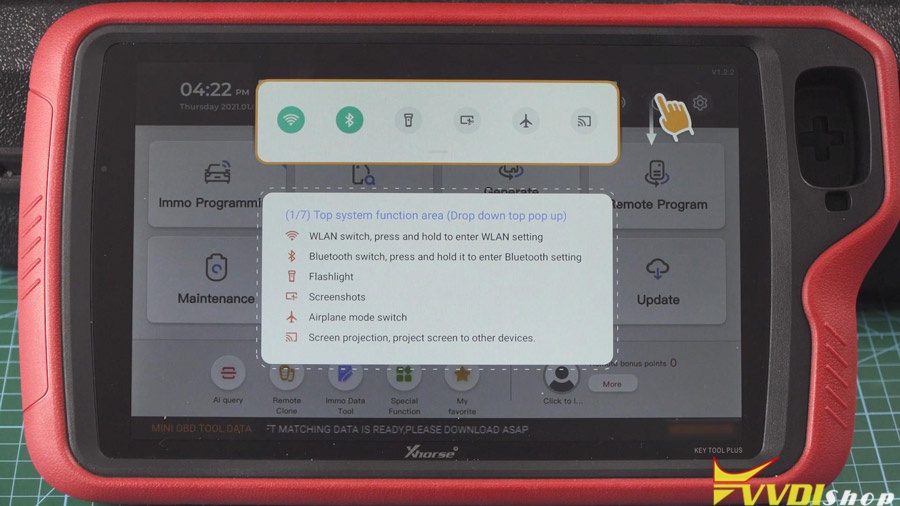

Slide down the screen, click WIFI;

Tap “Setting”, then “Network & internet”, then Wi-Fi, fill in the Wifi password, wait until it is connected.

Xhorse Vvdi Key Tool Plus Registration Bind Machine Update 07

Xhorse Vvdi Key Tool Plus Registration Bind Machine Update 08

Xhorse Vvdi Key Tool Plus Registration Bind Machine Update 09

Xhorse Vvdi Key Tool Plus Registration Bind Machine Update 10

Xhorse Vvdi Key Tool Plus Registration Bind Machine Update 10 Xhorse Vvdi Key Tool Plus Registration Bind Machine Update 11

Back to home menu to enter “Update”.

Xhorse Vvdi Key Tool Plus Registration Bind Machine Update 12



Tap “One-key-update” at the right upper corner.

It will prompt “This device is available with the following languages, please choose a database language”. Let’s take English for example.

Xhorse Vvdi Key Tool Plus Registration Bind Machine Update 13

App update, firmware update, IMMO programming database, remote database etc.

Xhorse Vvdi Key Tool Plus Registration Bind Machine Update 14

Xhorse Vvdi Key Tool Plus Registration Bind Machine Update 15

Alright, job is done.
