How to use Xhorse VVDI remote key to copy chip and generate remote

With Xhorse VVDI2 key programmer and wireless universal remote key, you will be able to copy chip and generate remote. Here we take Xhorse VVDI remote key Hyundai universal type as an example.
vvdi remote key

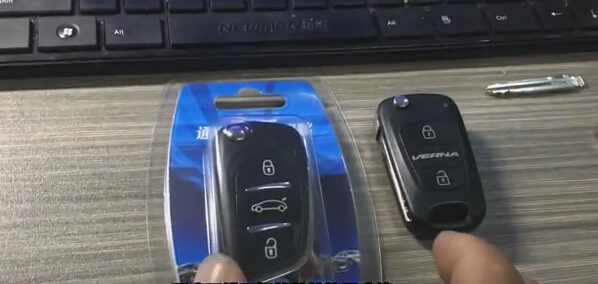

(Left: Xhorse remote key; Left: Original Hyundai key)

Step 1: Correct Chip Data

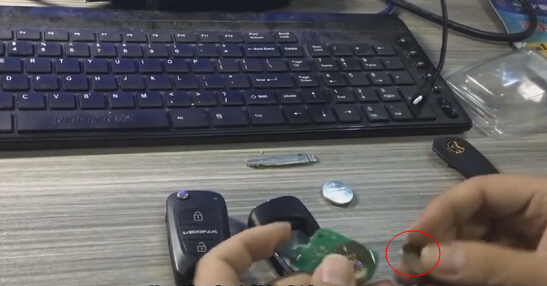

Install battery for wireless universal remote key.
– take out the pcb on the remote controller
– install the battery
install-battery

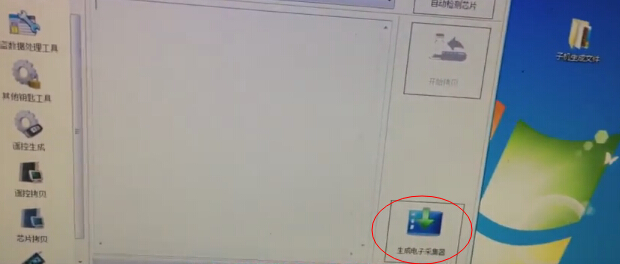

Generate wireless universal remote into chip signal collector via VVDI2 v1.2.2 software; VVDI2 automatically detect the chip
vvdi2



auto-detect-chip
Place remote key into VVDI2 programmer
Place remote key into VVDI2 programmer
Auto detect chip type

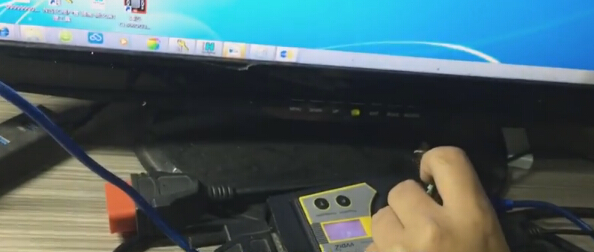

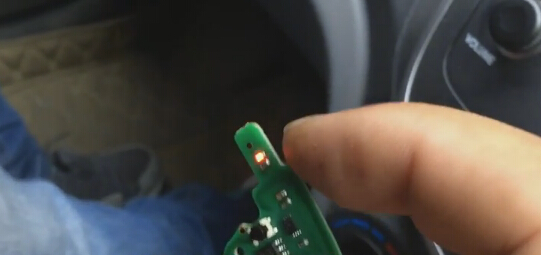

Press the remote control buttons, LED will keep flashing, it means that it’s into correction status
Press the remote control buttons
Signal acquisition success. LED indicator will flash rapidly.
Data correction is completed, ready to decode and copy
Data correction is completed

Step 2: Copy and Decode Chip

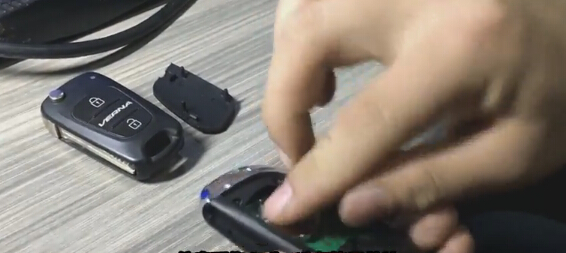

Put the chip with a battery installed into the remote control
re-install-remote

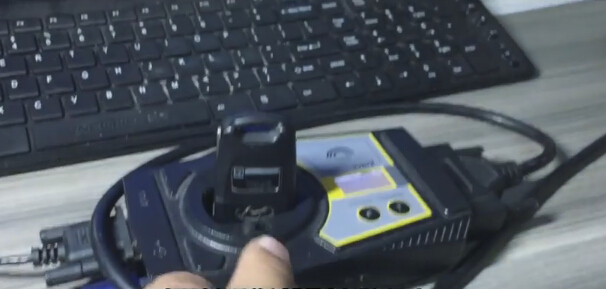

Put the original car key into VVDI2 key programmer for identification
Put the original car key into VVDI2

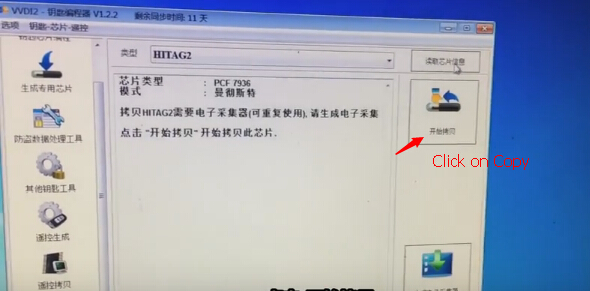

Click on Start Copy in VVDI 2 interface
start-copy
To collect information in the car and put the collector into VVDI2 (because we have collected data in Step 1, it’s ok to put the Xhorse remote collector into vvdi2)
put the Xhorse remote collector into vvdi2
Put the original key into vvdi2 key programmer again
Connect to the network, to start decoding online

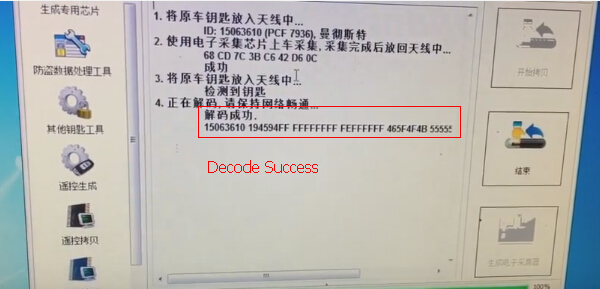

Decode chip success
decode-success

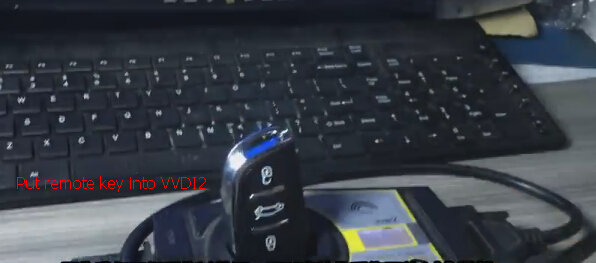

Put Xhorse remote key collector into VVDI2

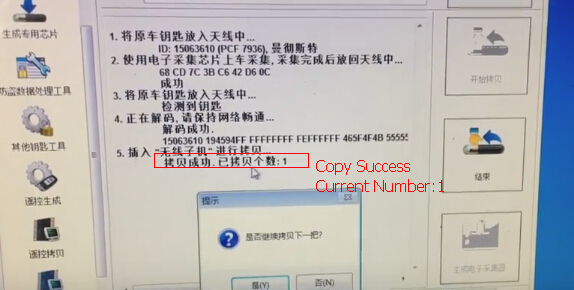

Copy success.
If VVDI2 software prompt you to copy next remote, click YES to continue or NO if you do not need.
copy-success
Try to start the car with the new remote key.

Step 3: Generate Remote

We find that remote control does not work properly, ready to generate remote.
remote-not-working
Put the new remote key into vvdi2 programmer
Select Genearte Remote function
Select region, make and model
generate remote
Select Generate remote-wireless
generate remote wireless
Success
Use special equipment to program the remote, i.e OBDSTAR Key Master or Xtool X100 Pad etc.
Xhorse wireless universal remote can copy a chip after regeneration as remote control, new equipment –Xhorse VVDI Key Tool remote generator will add this function.
Done!
