How to install Xhorse VVDI 2 Comannder software and driver

Original Xhorse VVDI2/VVDI II VAG Vehicle Diagnostic Interface key programmer is available in vvdishop.com. Here is the step-by-step instruction on installing VVDI 2 software and driver.
Operating system: Windows XP
Language: Chinese/English
Main Steps:
  1. Install VVDI2 software
  2. Install VVDI 2 driver

1.Install VVDI 2 software

Open VVDI2 software folder
Install VVDI2-Insatller.exe setup
VVDI2-Insatller.exe

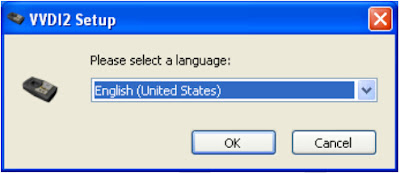

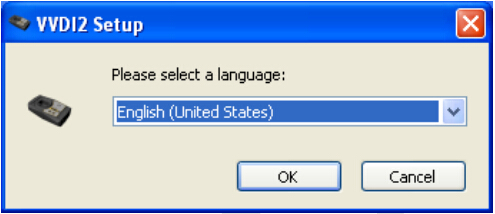

Select software language

software language

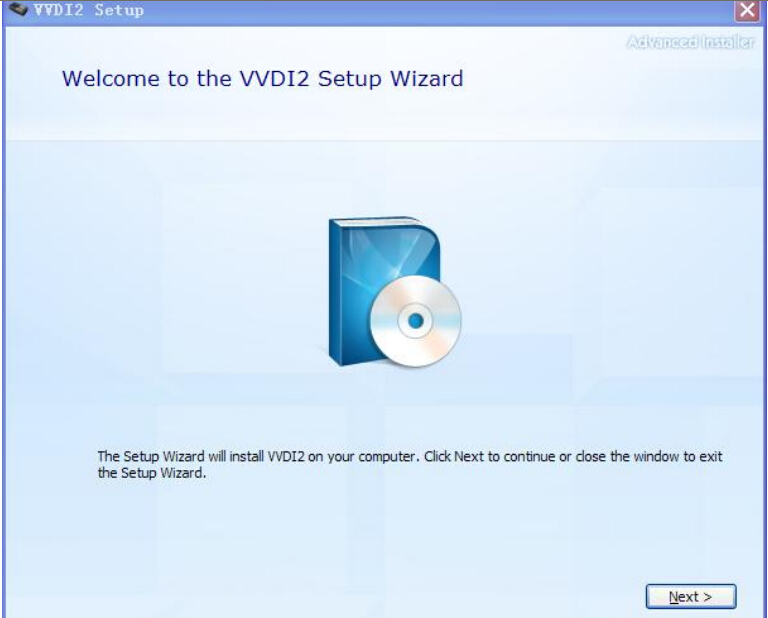

Install VVDI2 Setup Wizard, click “Next

VVDI2 Setup Wizard

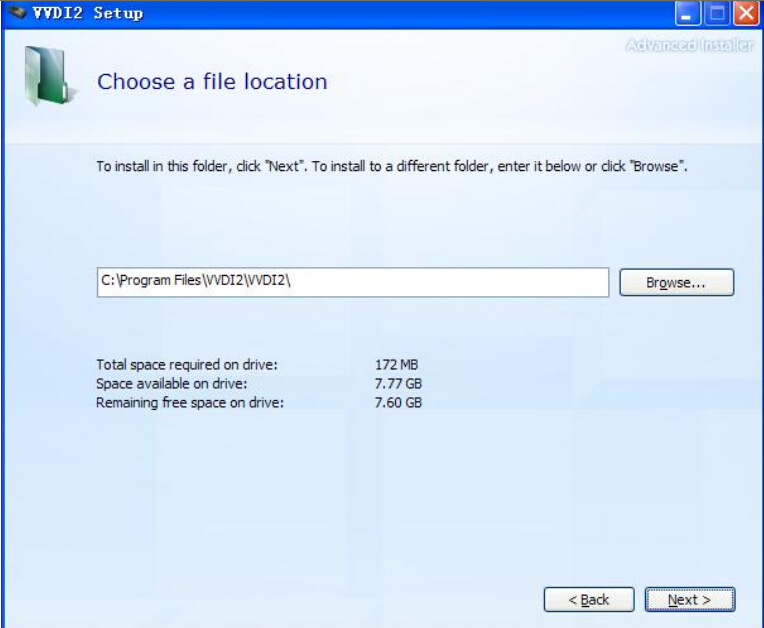

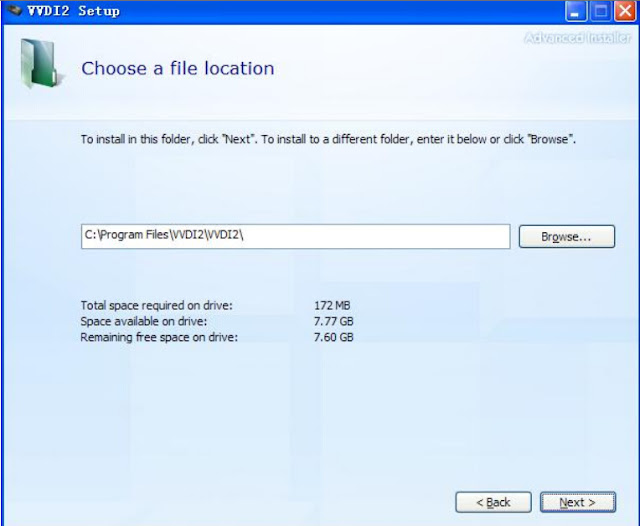

Save file to C: Program Files VVI2VVDI2 , click Next

C: Program Files VVI2VVDI2

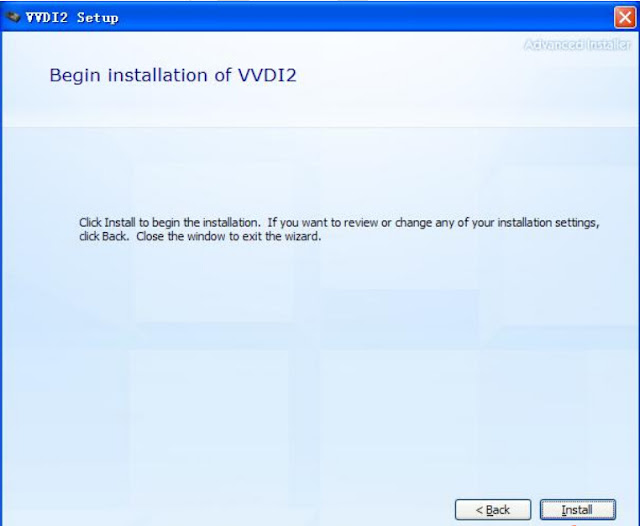

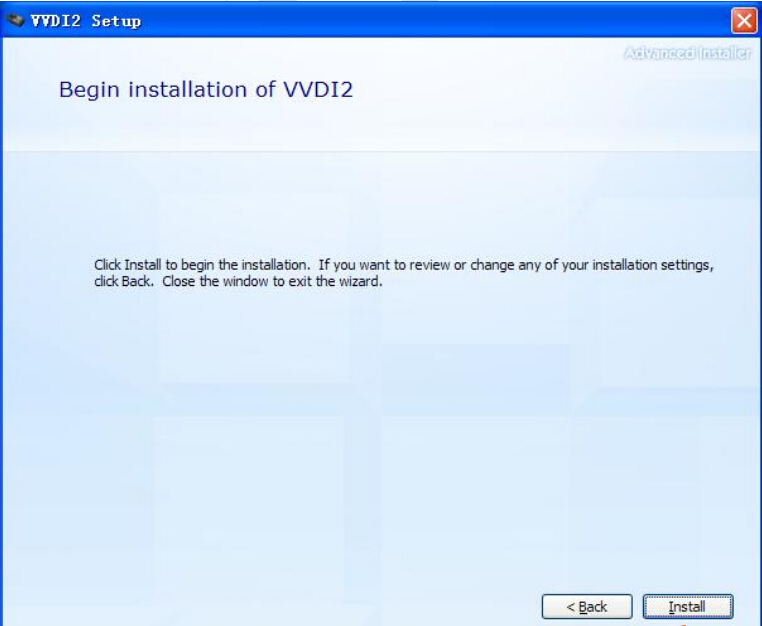

Click “Install

Click “Install”
Install VVDI Device FDTI CDM Driver
NOTE: If you install VVDI2 software (any version) for the first time, you need to select “Next”, otherwise, select “Cancel

 select “Next”
Device drivers are installed. Click “Finish

Click “Finish”

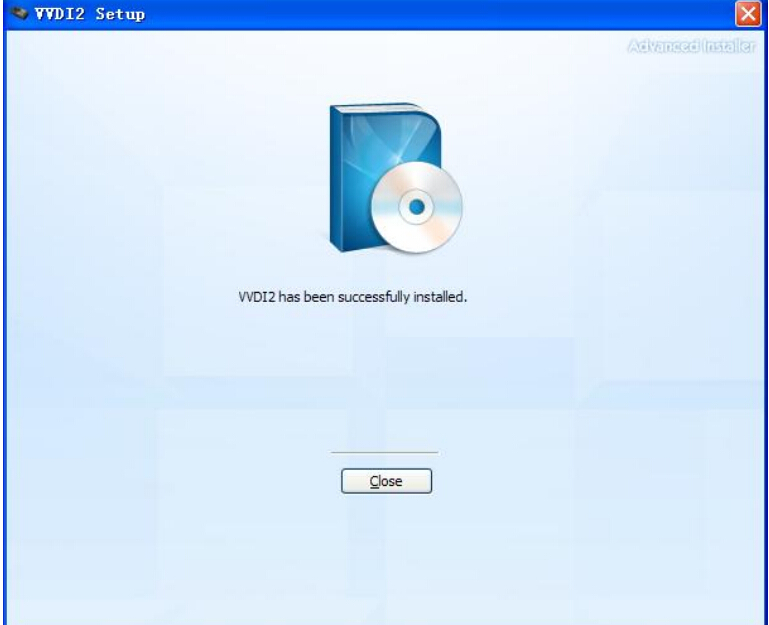

VVDI2 software has been successfully installed. Click “Close

  1. Install VVDI2 driver

Generally, VVDI2 driver will be installed automatically. If driver installation failed or programs cannot connect to VVDI2 key programmer, you need install driver manually.

Manual Install Driver

Open My Computer-> Manager-> Device Manager

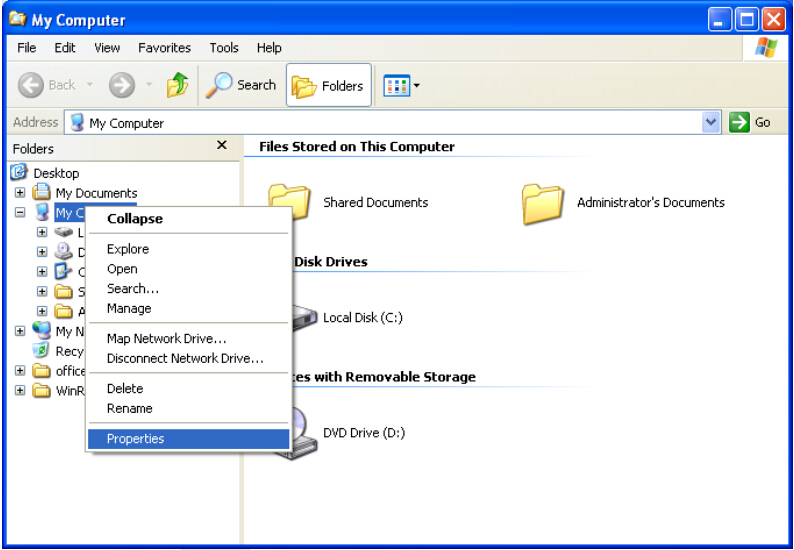

Open windows explorer, right click “My computer” and select “Properties

select “Properties”
Open “System properties

System properties

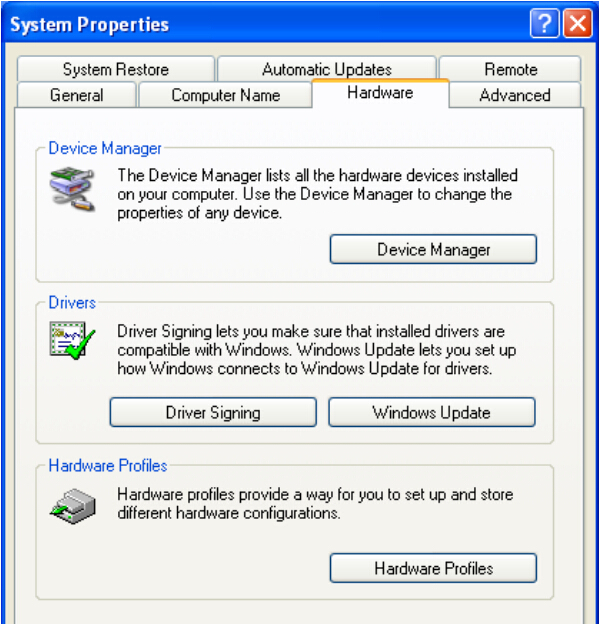

Select “Hardware”-> “Device Manager”, open Device Manager

Device Manager
Install Bus driver: Disconnect other USB cable from PC (Mouse and keyboard should keep connect)

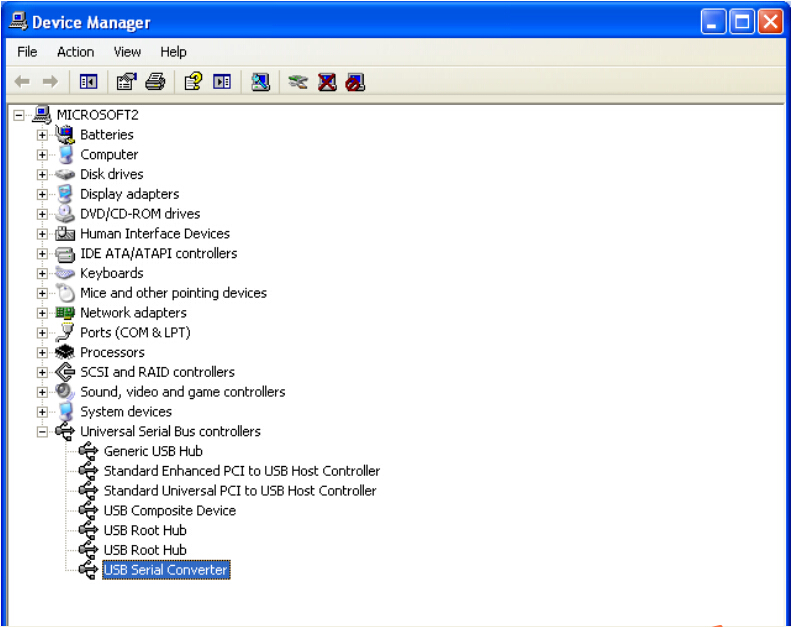

VVDI 2 install with other version drivers: In select “Universal Serial Bus controllers”-> “USB Serial Converter”, double click on it, get properties window:
Click Driver tab.: “Driver Date” should be 3/18/2011, “Driver Version” should be 2.08.14.0. If driver date and driver version are set right, do not install driver again. If not set correctly, install driver with following steps.

Driver Date
Select “Driver”-> “Update Driver”. Open “Hardware Update Wizard

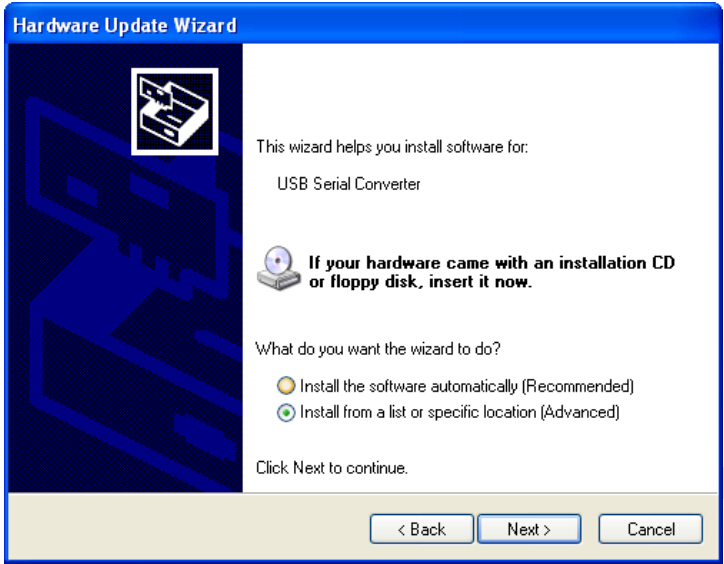

Select “Install from a list or specific location (Advanced)”, click “Next
“Install from a list or specific location (Advanced)

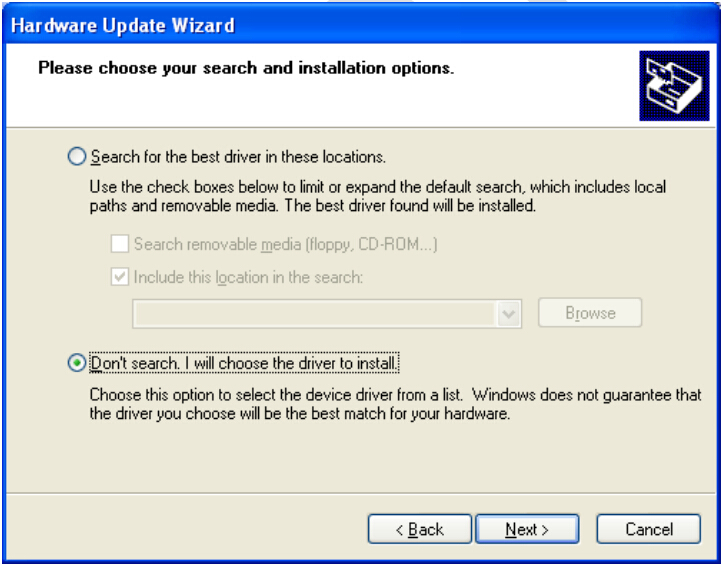

Select “Don’t search. I will choose the driver to install”. Click “Next” Sometimes you will get directly, at this situation, go to next 2 steps.

Don’t search. I will choose the driver to install

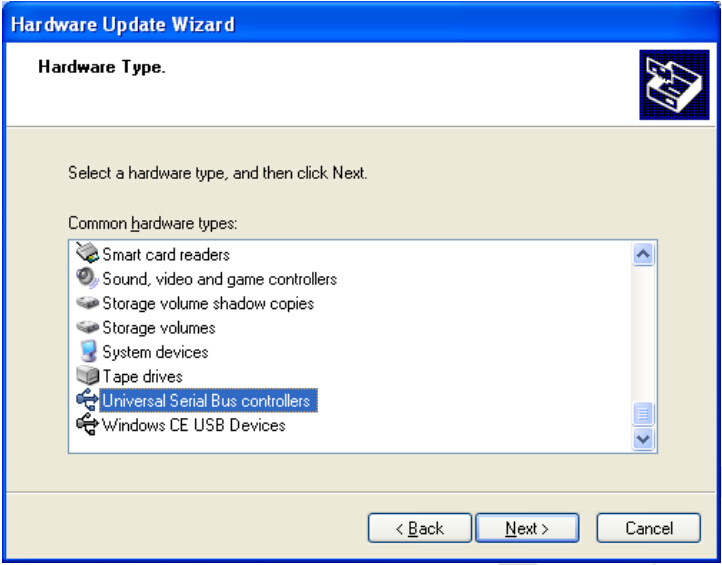

Select “Universal Serial Bus controllers”, click “Next

Universal Serial Bus controllers

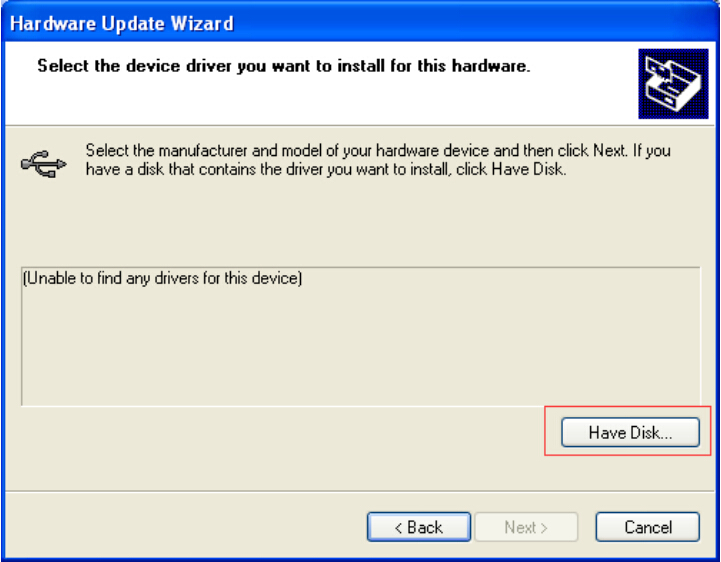

Select “Hard Disk….”, get install from disk window

Hard Disk
Input absolute path for USB driver folder in install directory (Browse…and choose install directory, or you can find the path from Start->Programs->VVDI2->USB Drivers). Press OK and wait complete.
Sometimes system will ask again for “Are you sure to install this drivers?”, click “Continue”

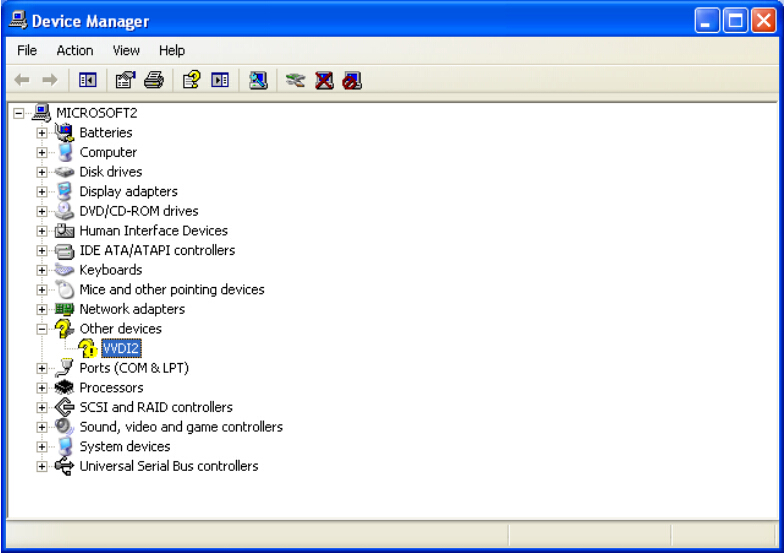

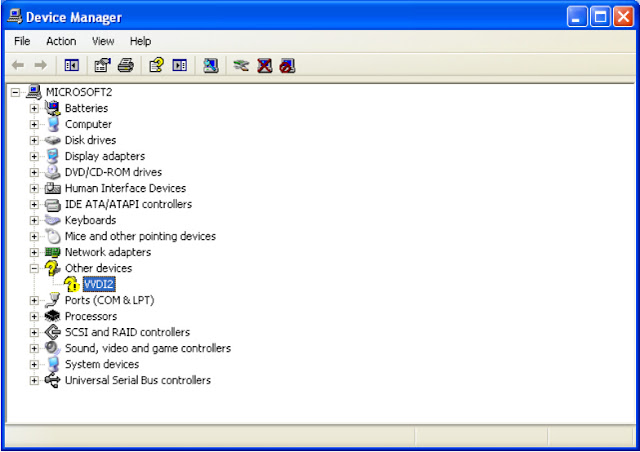

VVDI 2 is not recognized: you can find VVDI2 (yellow mark) in “Other devices” list from Device
Manager. Double click get properties window.
Then install driver accord VVDI2 install with other version drivers.

 VVDI2 driver

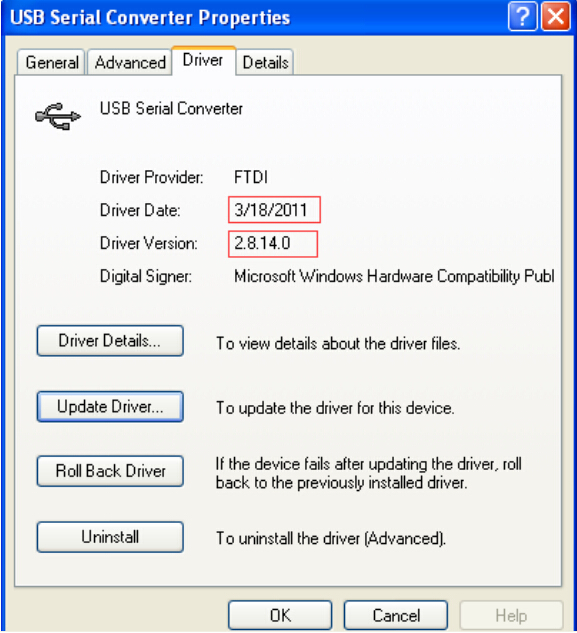

Verify Bus Driver: Open properties window after install driver. Click Driver tab.
Check “Update Date”=3/18/2011
“Driver Version”=2.8.14.0.

driver-version
VVDI2 software and drivers installation completed.
