How to update Xhorse VVDI2 software & firmware

VVDI2  key programmer is released by Xhorse company which supports both software and firmware update. Here are detail VVDI II software& firmware update instruction provided.

Operating system: Windows XP
Language: Chinese/ English
Xhorse VVDI2 Online Update Tool software can update VVDI II to newest firmware and download newest software.

Firmware Update

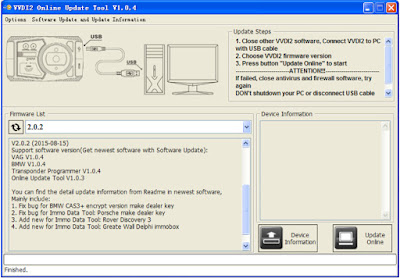

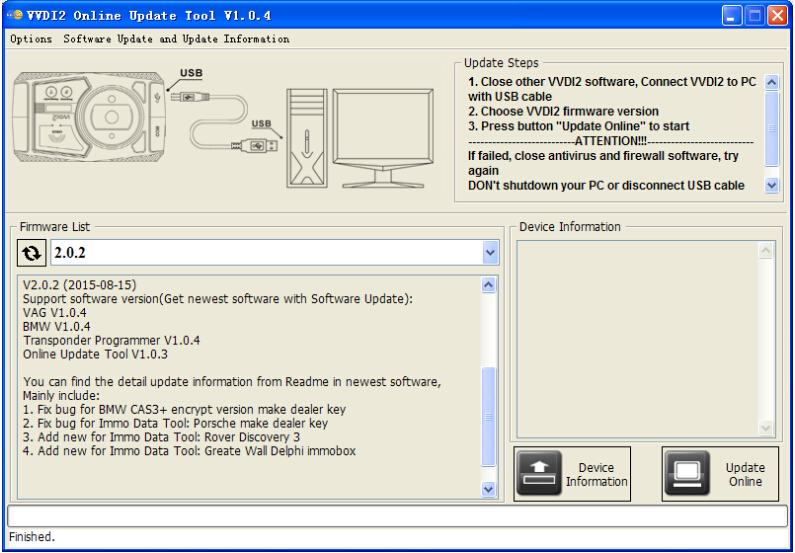

VVDI2 Update Online Tool main program. The program will read the newest software version.
Update VVDI2 firmware:
  • Close other VVDI2 programs, connect VVDI2 to PC via USB cable
  • Choose VVDI firmware version from Firmware List
  • Press button Update Online, wait the progress end
  • If failed to get firmware list or “communicate with server error!” message, before update your device, close anti-virus and firewall programs, try again. Change your internet provider once failed again
  • DO NOT shutdown your PC or disconnect USB cable while update device
Refresh Firmware List
Update Online Tool will connect to server automatically and download the newest firmware information. You can press flash picture button if there’s no display.
After you get information success, will display current support firmware list, the software support by specify firmware and the mainly include update information.
Device Information
After connect VVDI2 interface to PC and install USB drivers, press “Device Information” button, will show you VVDI2 Serial Number, current firmware version in VVDI2, authorize information etc.
Update Online
After connect VVDI 2 to PC and install USB drivers, choose firmware version you want from firmware list. Press “Update Online” button, wait progress finish (about 2 minutes).
Internet connection is required.

Software Update

Internet connection is required.

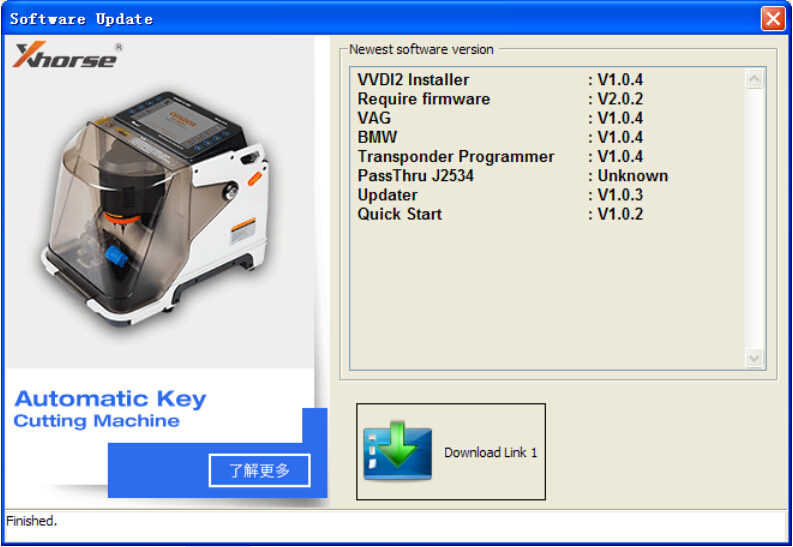

Click “Menu->Software Update->Software Update” to check VVDI2 latest available software version, the software version requires firmware version support etc
Select “Download Link”, the system will download the latest software.

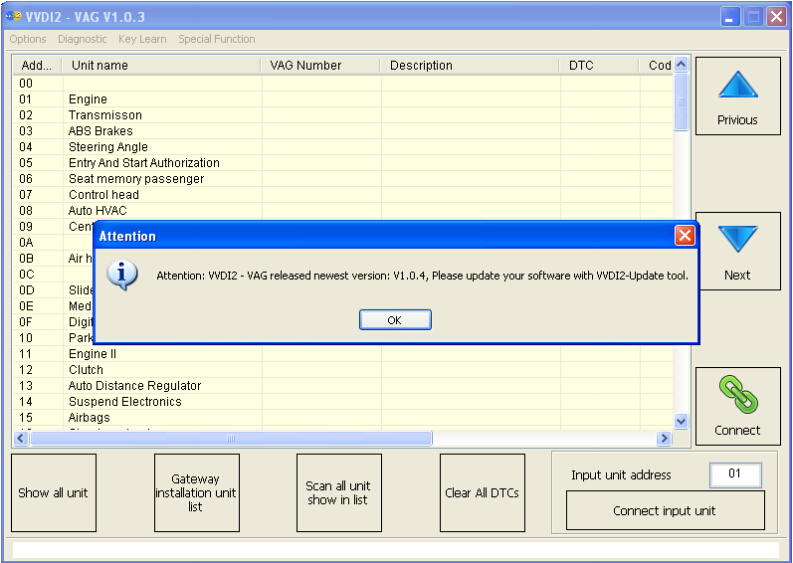

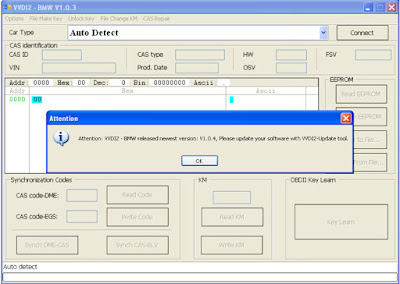

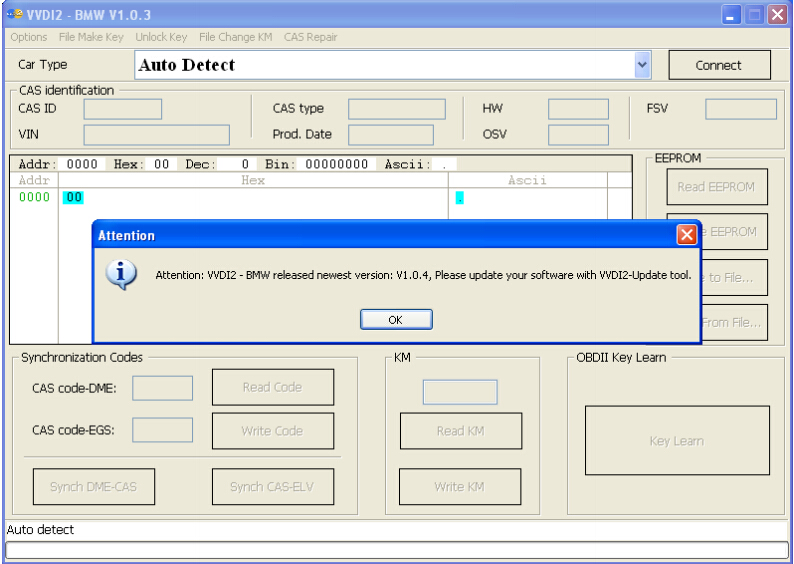

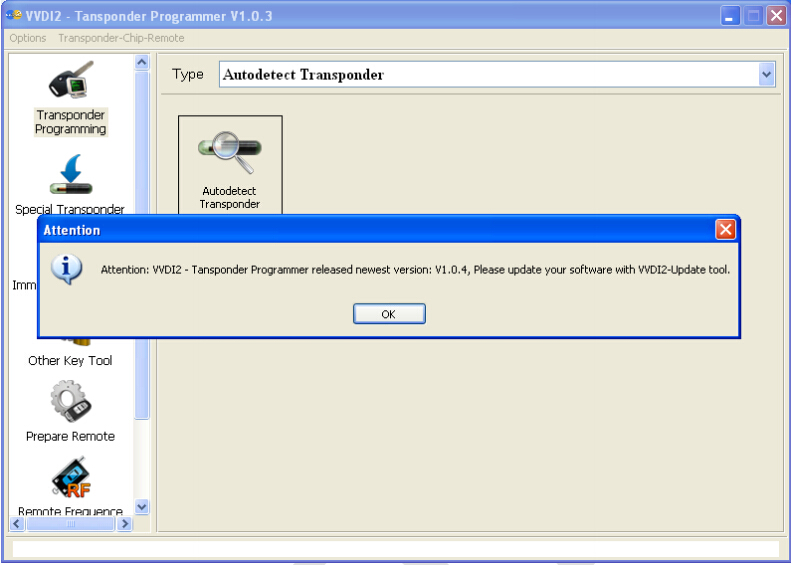

When you use VAG, BMW, Transponder Programmer programs, if you are displayed following windows, which means your tool have newest software released.  Please download newest software with Update Online.
