VVDISHOP here will show how to add a spare ID48 remote key to a 2011 VW Jetta using Xhorse VVDI Key Tool MIDI.
Procedure:
Step 1: Generate Remote

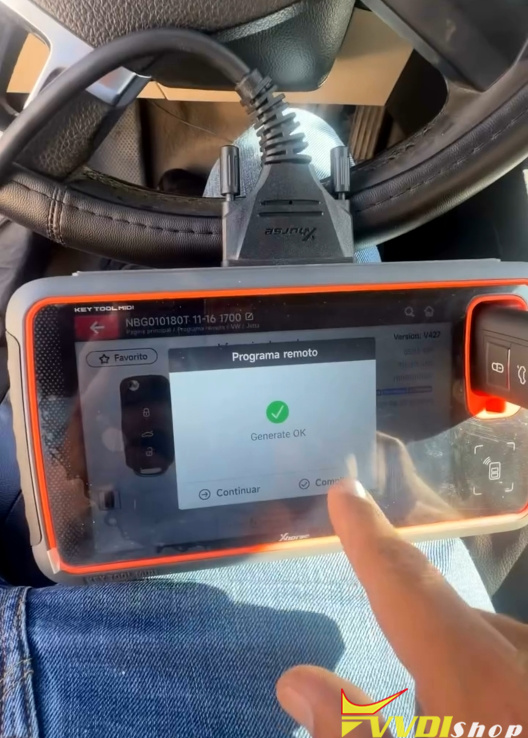

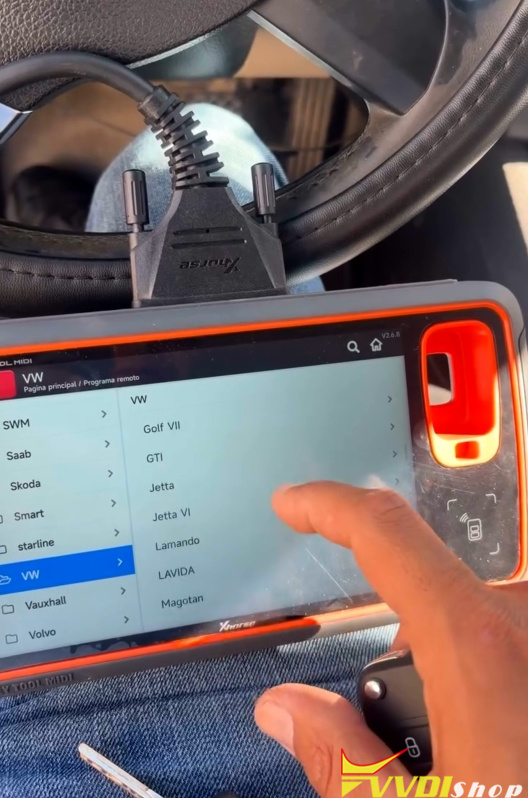

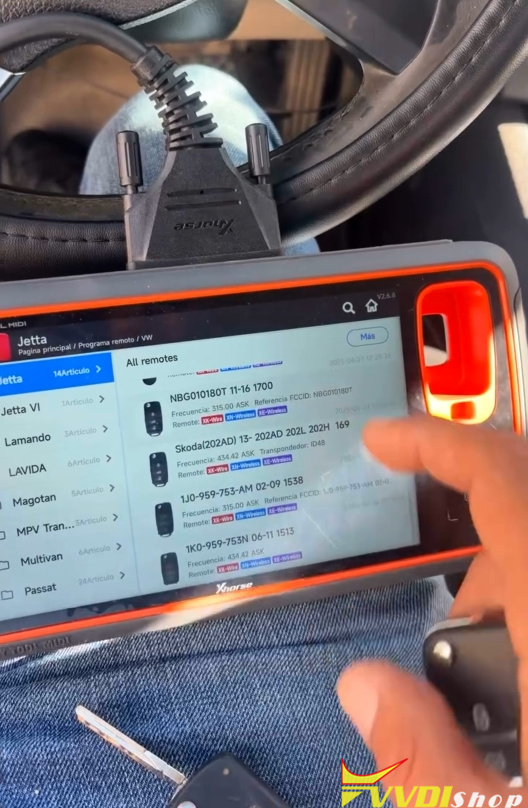

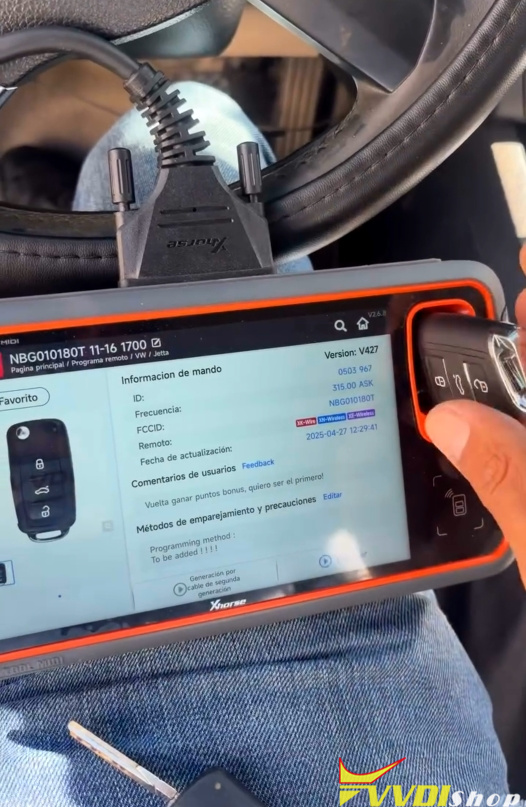

Generate Xhorse remote under the proper remote program.
Step 2: Generate Transponder

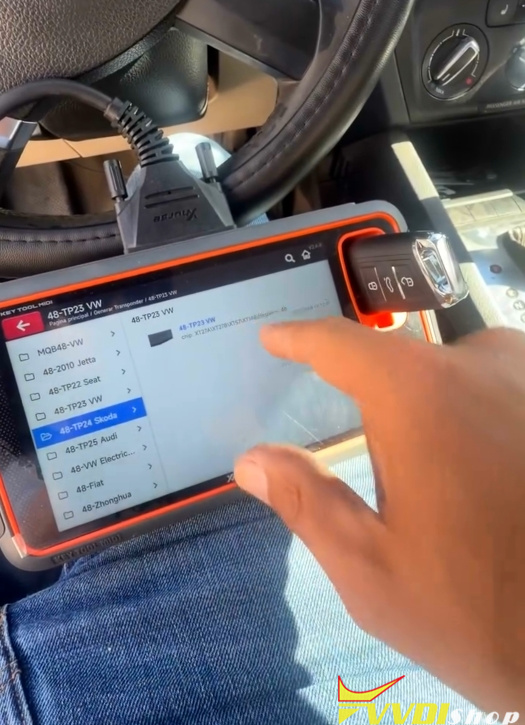

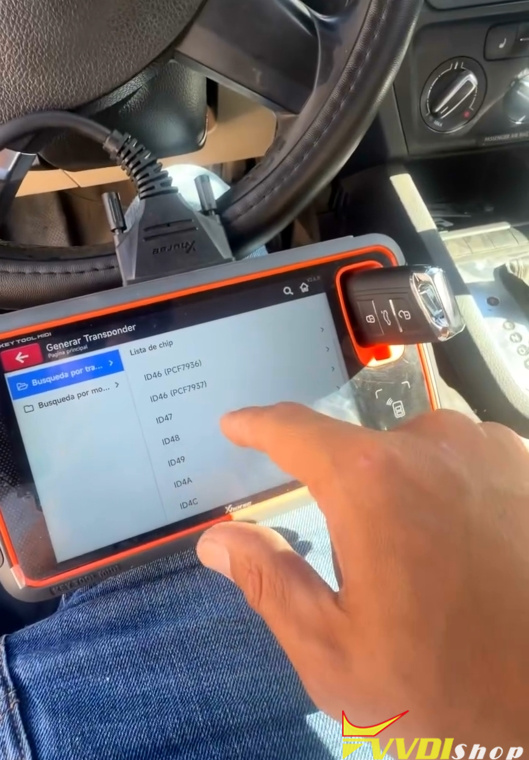

Go to Generate Transponder function

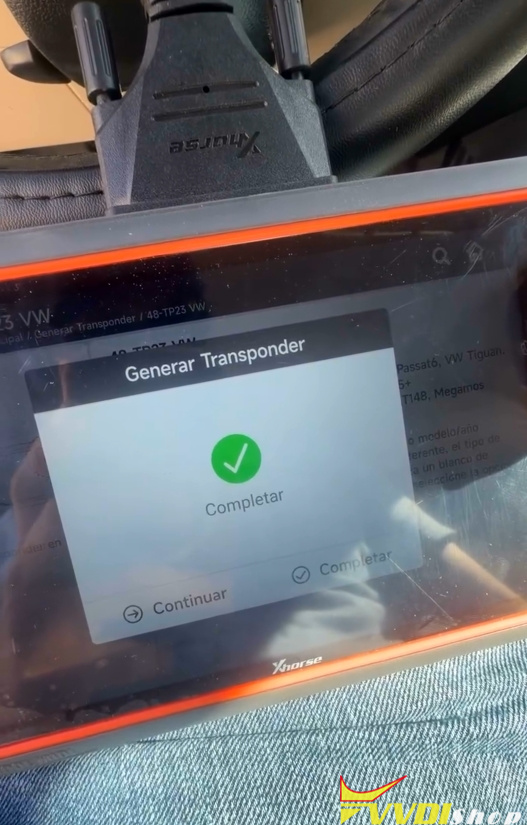

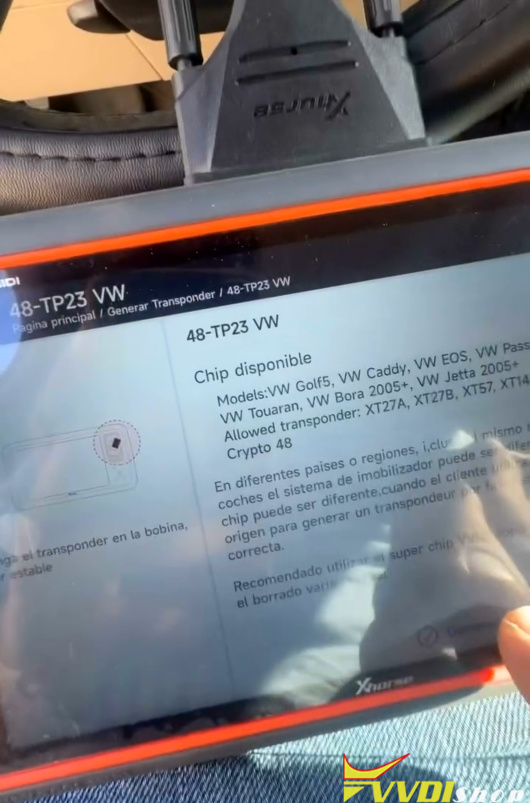

Generate an ID48 (48 TP23 VW) transponder using the Xhorse ID48 or Super Chip transponder.
Step 3: Program remote

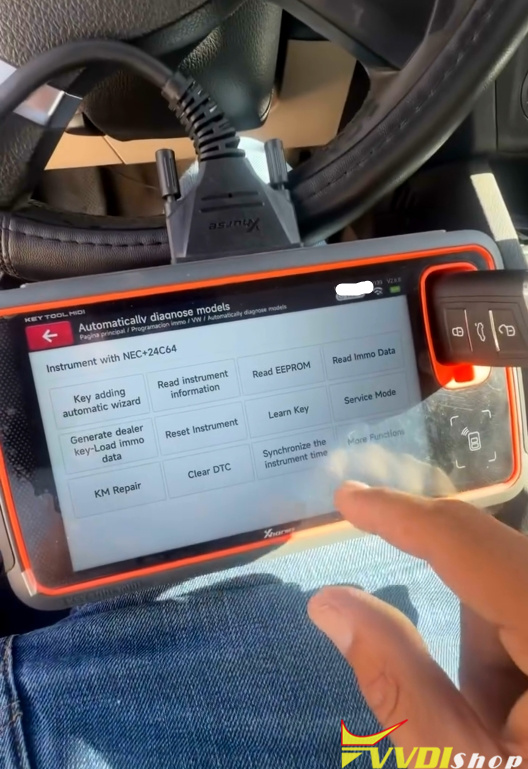

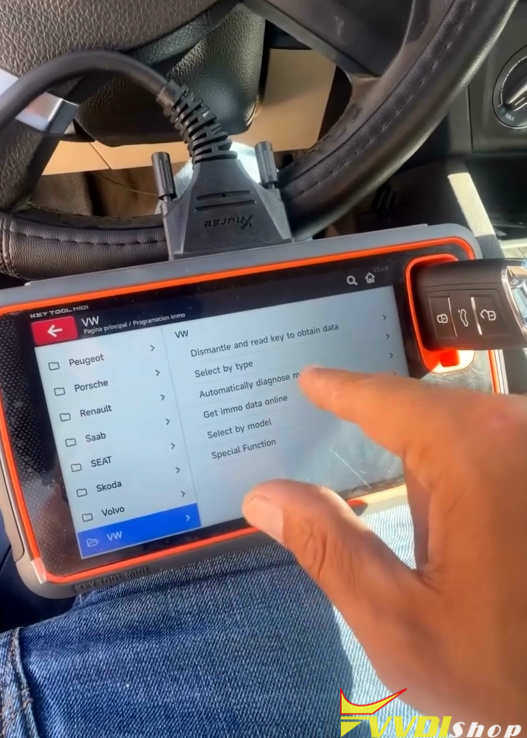

Go to IMMO Programming- VW- Automatically diagnose mode

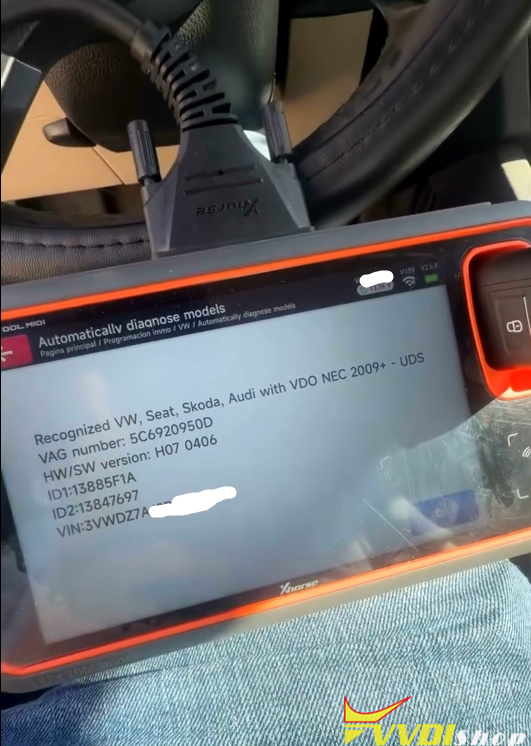

Detect vehicle information. It’s a VDO NEC 2009+ UDS type.
Read EEPROM.

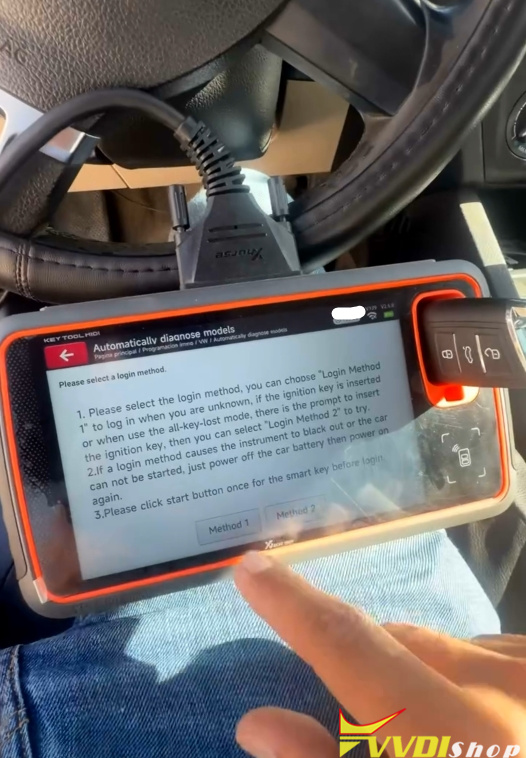

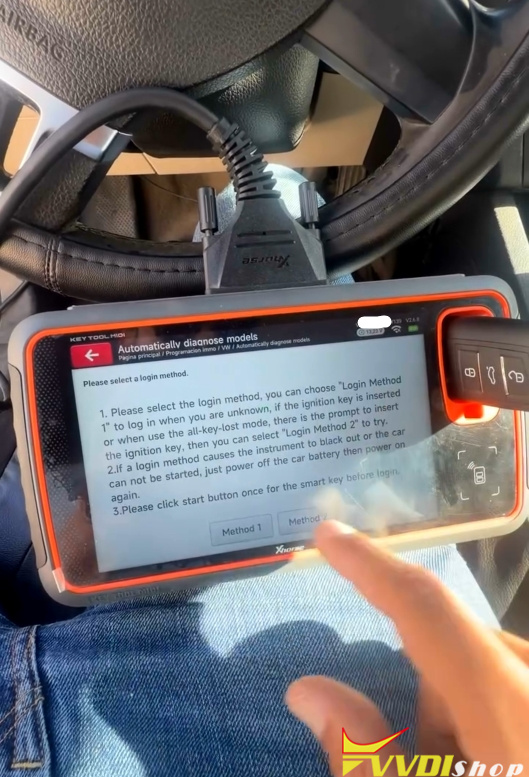

Choose login Method 1.

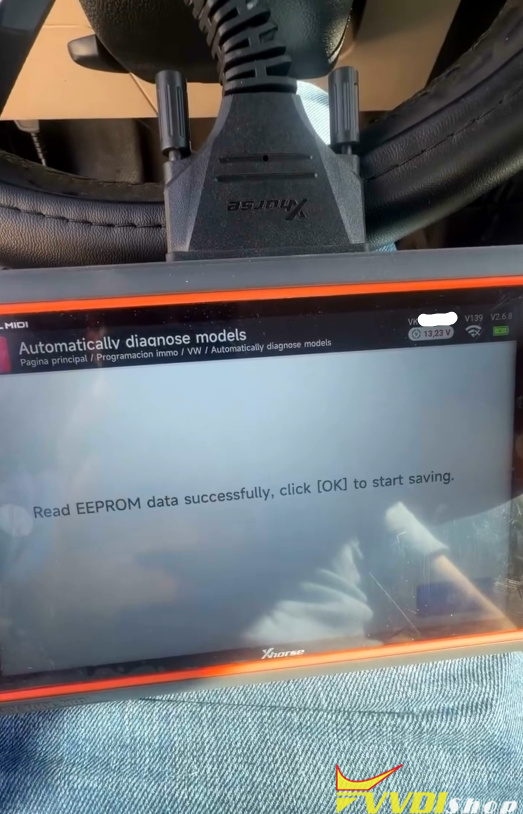

Read EEPROM data successfully.
Read IMMO Data.
Select Login method 1.

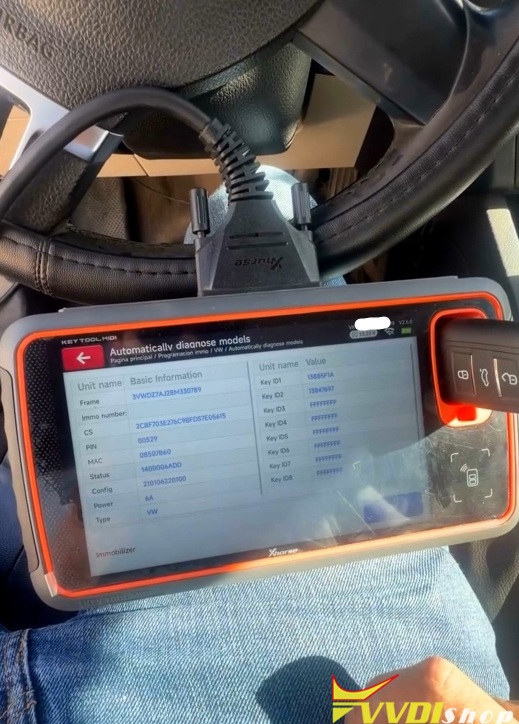

Read CS PIN etc immo data.
Save immo data.
Select Generate dealer key- load immo data.

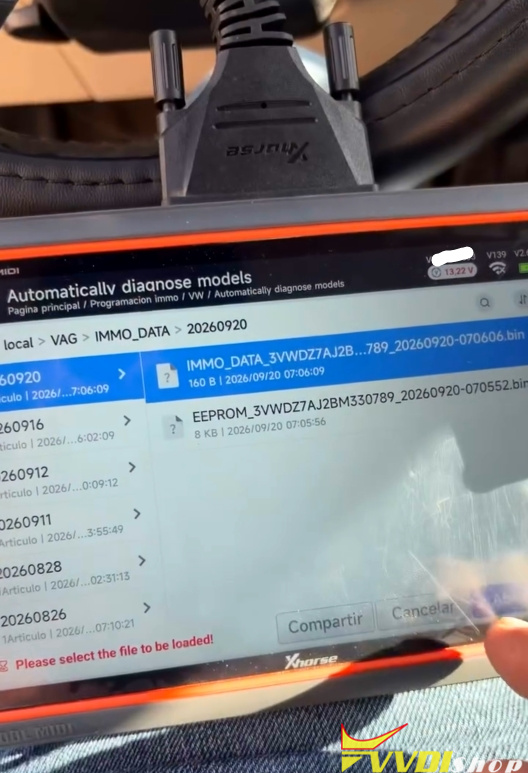

Load the saved immo data to generate dealer key.

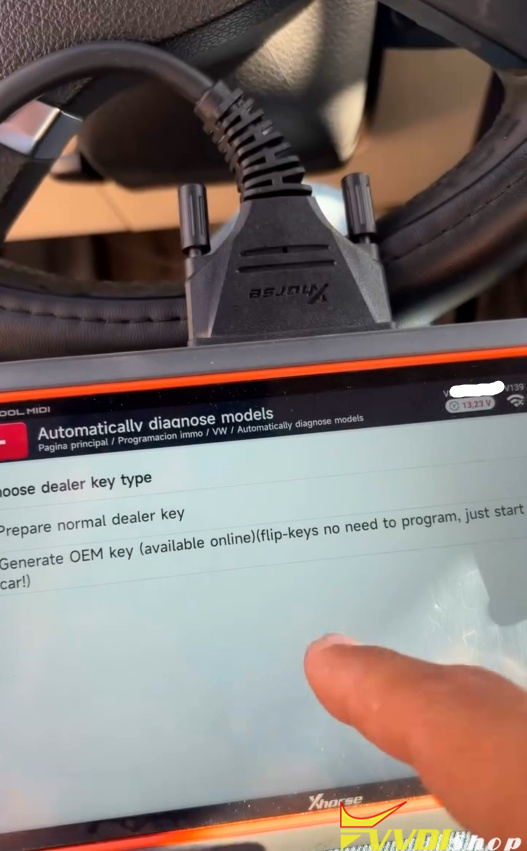

Select Generate OEM key.

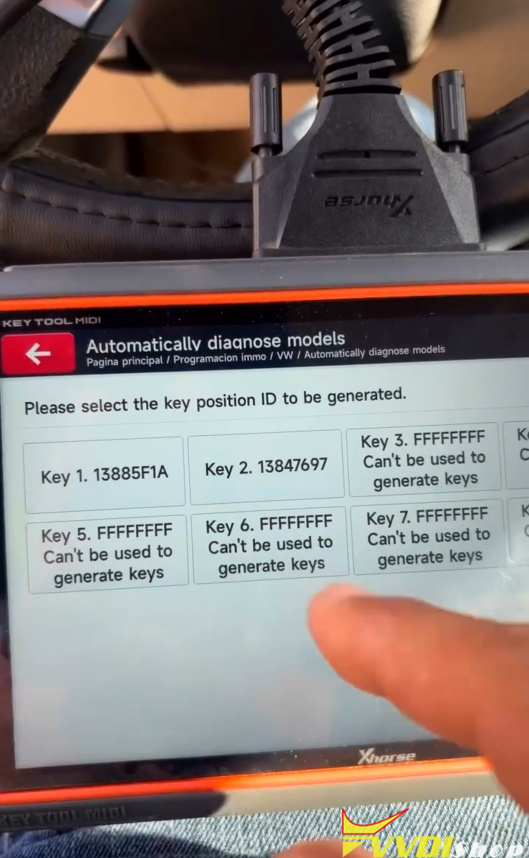

Select key ID to be generated.

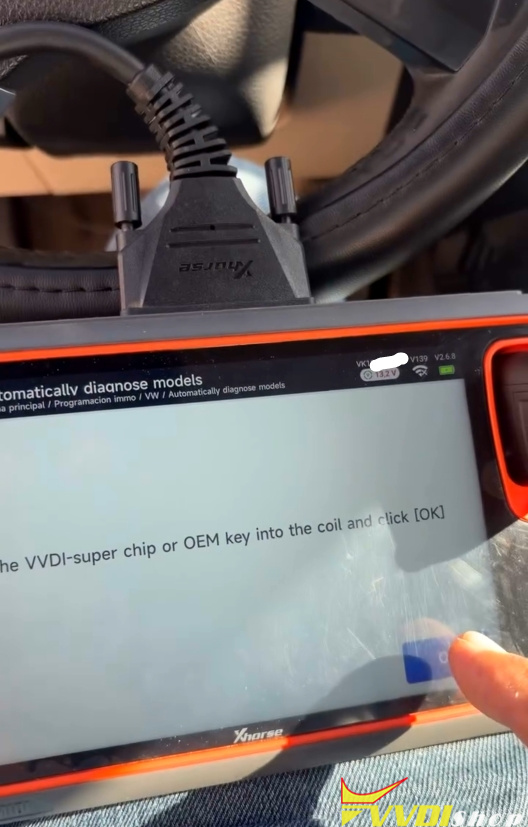

Place a VVDI super chip ot OEM key into the coil.

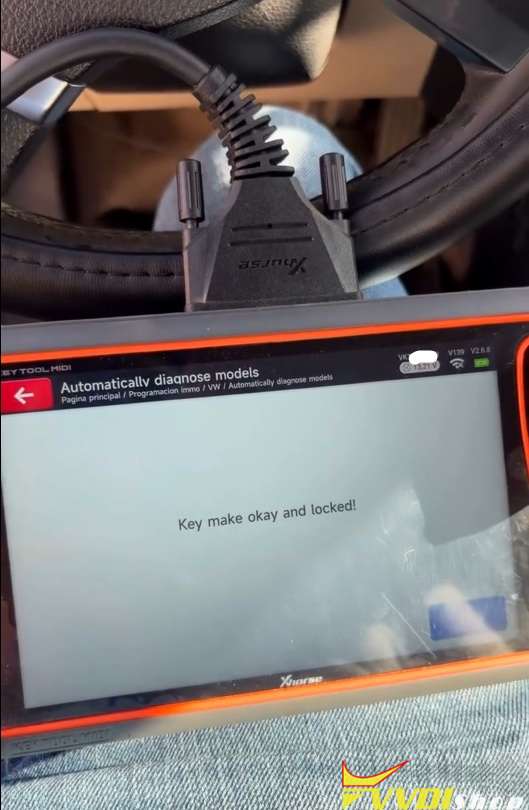

Generate dealer key successfully.
Step 4: Program remote control

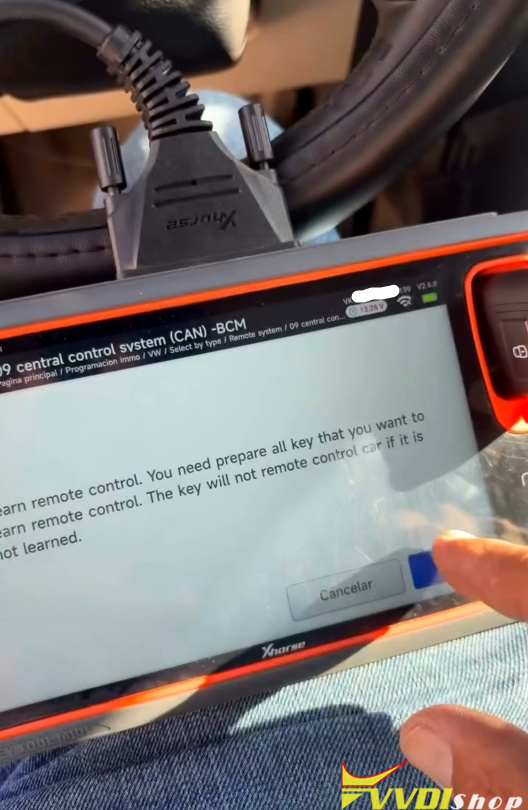

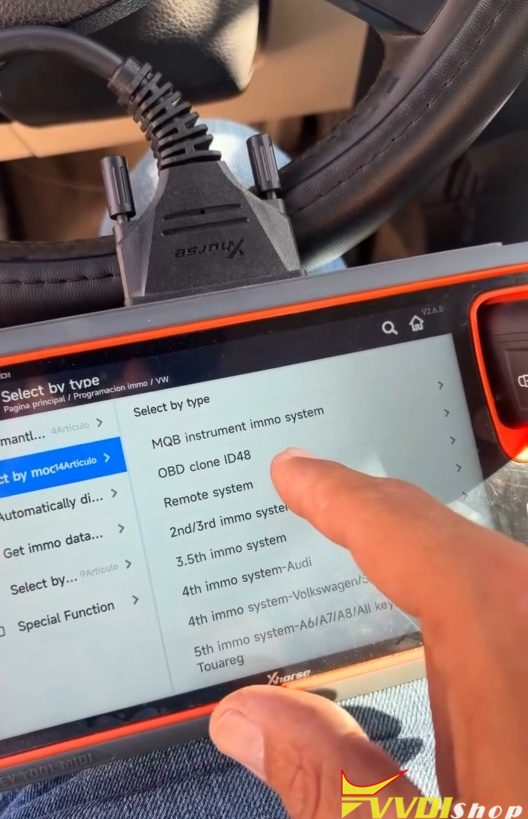

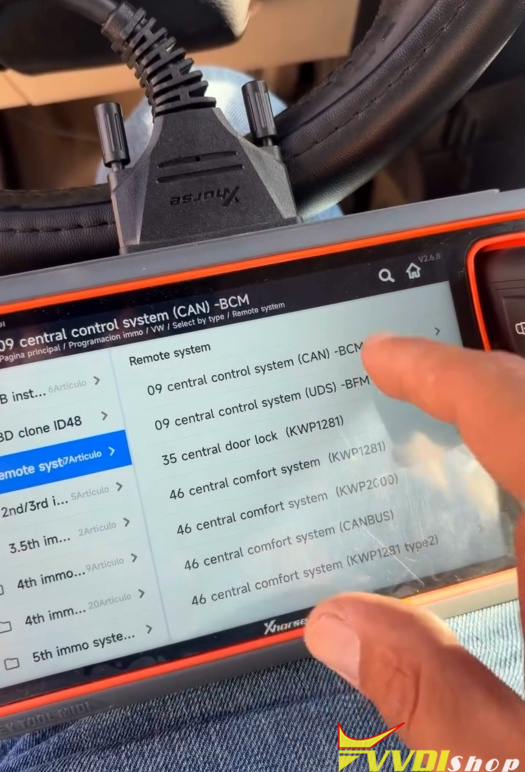

Go to IMMO Programming- VW- select by type- Remote System- 09 contral control system (CAN)-BCM.
Follow Key Tool MIDI prompts to program remote control until successful.
Add a VW Jetta 2011 remote key successfully.
