Xhorse VVDI Remote Renew Cable Wiring Pinout

Which vvdi device is compatible with remote renew function? How to make your own remote renew cable?



1.The old VVDI Key Tool has remote renew function and renew cable.

VVDI Mini Key Tool and VVDI Key Tool Max can renew remotes, a renew cable is required.

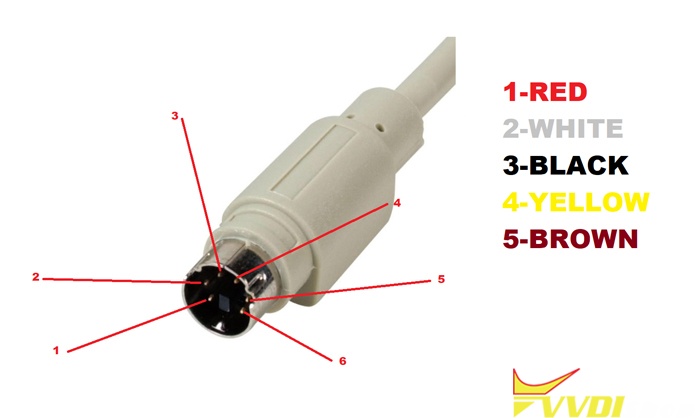

2.You can make your own cable. Here’s the wiring pinout to vvdi remote renew cable (You are at your risk.)

Typical PS2 mouse cable
15-20cm long

vvdi-remote-renew-cable-1

Vvdi Renew Cable 1

Vvdi Renew Cable 2

Vvdi Renew Cable 3

Vvdi Renew Cable 4

Vvdi Renew Cable 5

vvdi-remote-renew-cable-2
