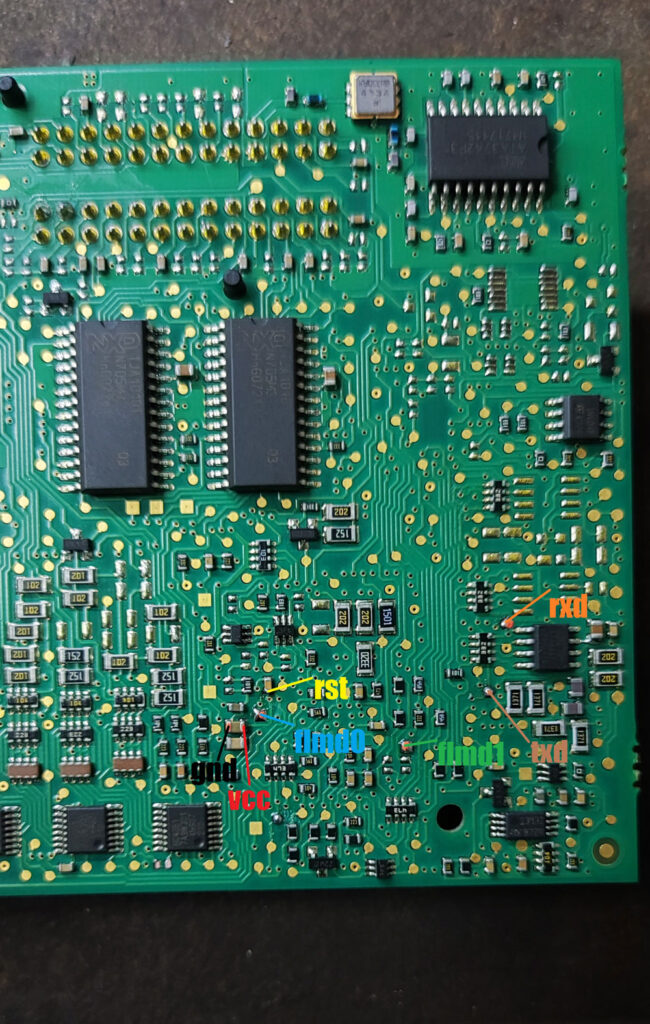

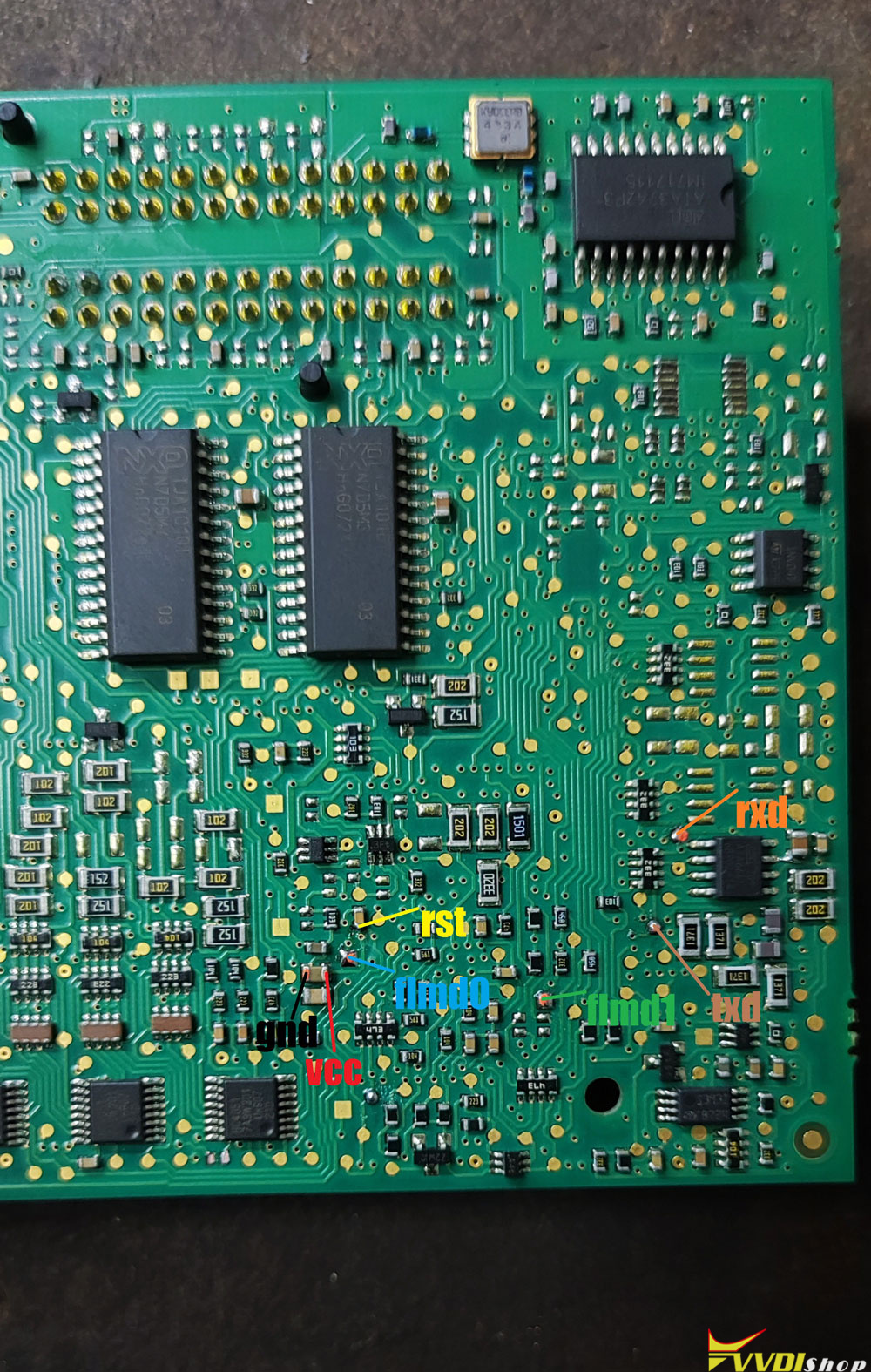

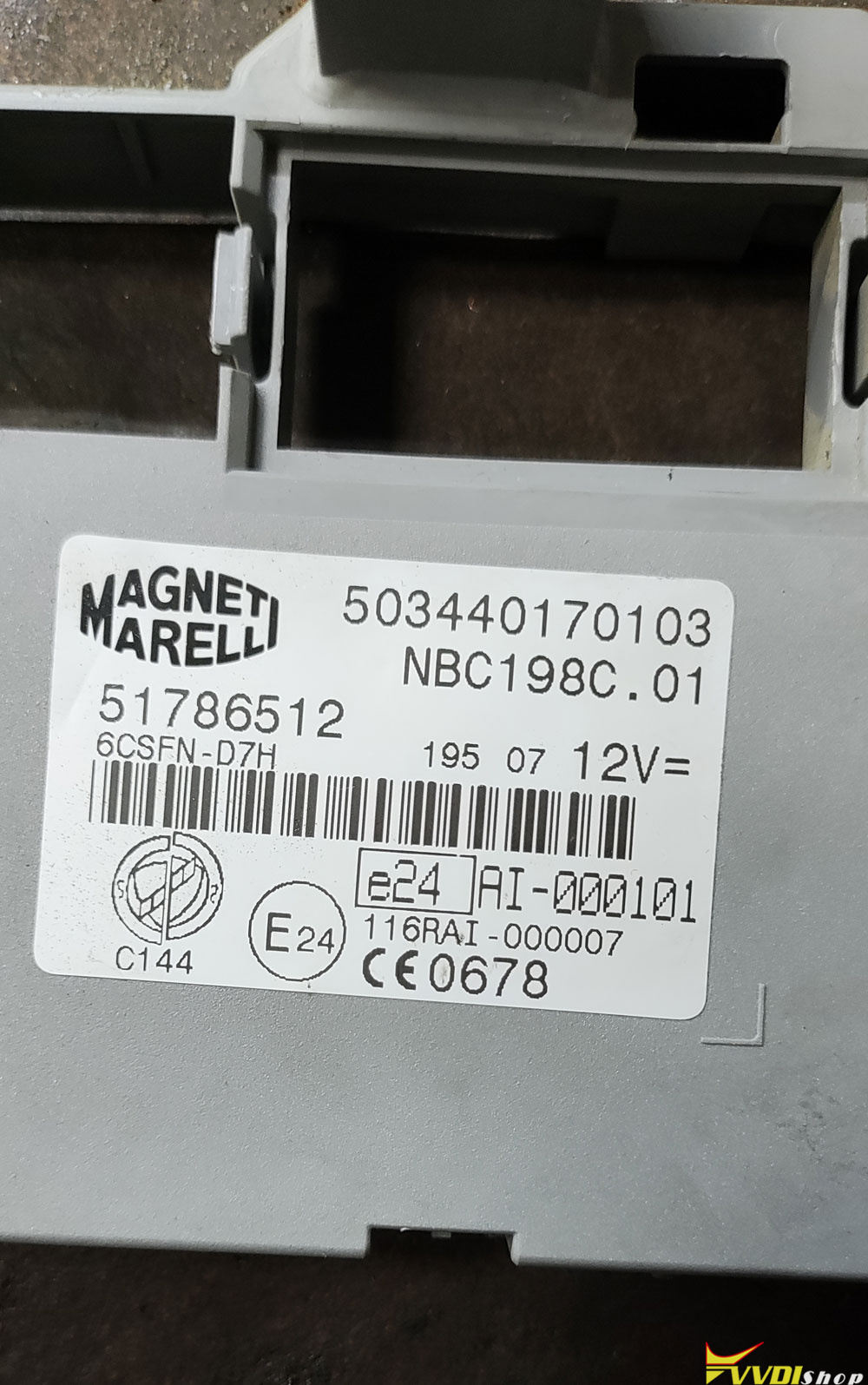

This is a tutorial pinout for BCM fiat (bravo/doblo etc….). It is color wire diagram for Xhorse VVDI Prog.

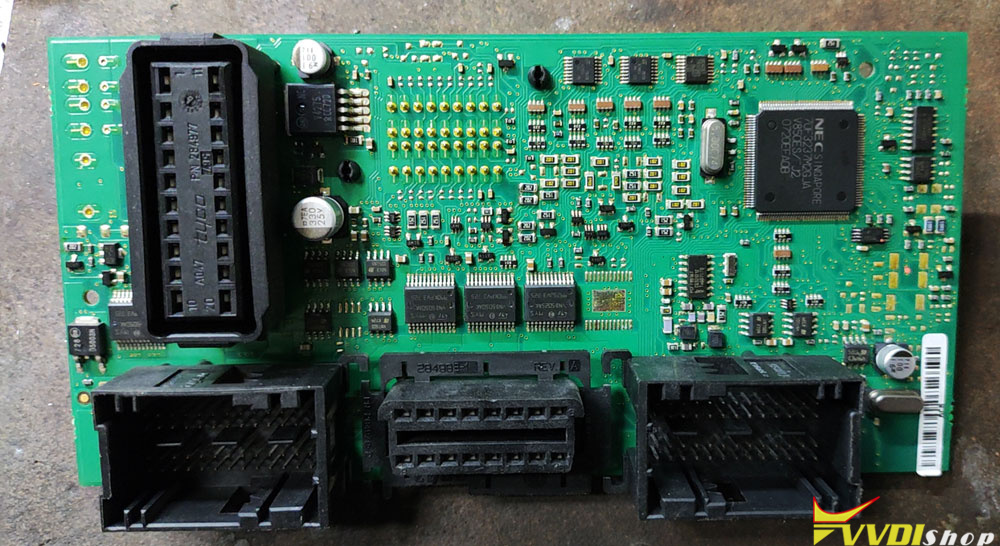

For reading flash D70f3237.
When do this job it is advised to remove eeprom when reading/writing flash; EEPROM ST95160 read in external programmer.
Credit to DK member.
