Xhorse VVDI Mini Prog Function Overview

What is Xhorse VVDI Mini Prog? It is a professional smart programming device featuring solder-free program.

Today, I’ll show you its standard configuration and how its working interfaces looks like.

Now, I have the original package of Mini Prog in my hand. So you can see from its outer package, it’s just like a pen, that’s why we sometimes call it a programming pen.

Xhorse Vvdi Mini Prog Standard Configuration And Function Overview 01





Open this box and we can see the standard configuration of Mini Prog.



 Standard Configuration of Mini Prog

Item Image Remark
Mini prog Xhorse Vvdi Mini Prog Standard Configuration And Function Overview 02 It comes with pin header one.
3 Pin headers Xhorse Vvdi Mini Prog Standard Configuration And Function Overview 03 They are used to read the data on modules.
EEPROM adapter Xhorse Vvdi Mini Prog Standard Configuration And Function Overview 04 /
DB15 cable Xhorse Vvdi Mini Prog Standard Configuration And Function Overview 05 It is used for connecting Mini pro to EEPROM adapter.
USB cable Xhorse Vvdi Mini Prog Standard Configuration And Function Overview 06 It is used for charging.





This is Mini prog. The color is a little bit from what we can see on the cover page, but it’s still Okay and it’s very lightweight and very comfortable to hold.

Look at the front side of the mini prog. There are 3 buttons. The first one is on and off button, we can start the device, and the second is the menu button to control the device, and there is a led button, you can turn the light on.

Xhorse Vvdi Mini Prog Standard Configuration And Function Overview 07





This is the led screen, showing the working status of mini products.

Xhorse Vvdi Mini Prog Standard Configuration And Function Overview 08



Now, I’m going show you the working interfaces of Mini Prog.



To operate Mini Prog, you have to download xhorse app on your smartphone, and access xhorse app, choose “MINI PROG” button, then click “select” >> “VP02766511”, and then choose the language you want.

Xhorse Vvdi Mini Prog Standard Configuration And Function Overview 09

Xhorse Vvdi Mini Prog Standard Configuration And Function Overview 10

Xhorse Vvdi Mini Prog Standard Configuration And Function Overview 11

Function Overview:



  1. EEPROM and FLASH



“EEPROM and FLASH” can read EEPROM from different manufacturers.

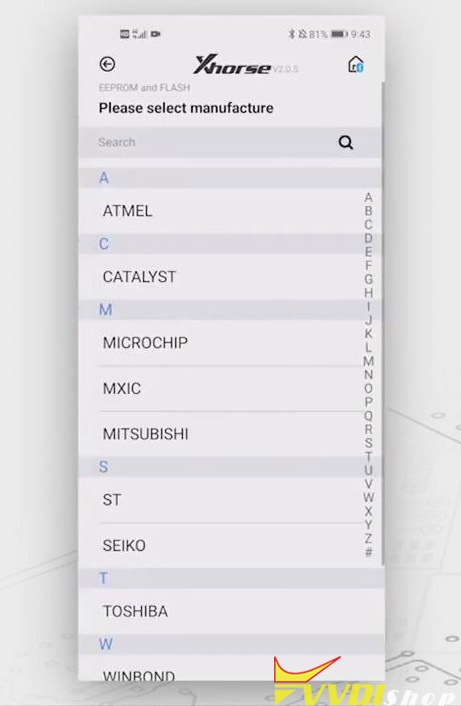

Here, we choose “ATMEL”>>“AT24CXX” >>“AT24C1024(pressure)”, and it will show which adapter you should use.

Xhorse Vvdi Mini Prog Standard Configuration And Function Overview 12

Xhorse Vvdi Mini Prog Standard Configuration And Function Overview 13

Xhorse Vvdi Mini Prog Standard Configuration And Function Overview 14

Xhorse Vvdi Mini Prog Standard Configuration And Function Overview 15

This is pin header 3. Connect the header to the Mini Prog, then you can directly read and write data.

Xhorse Vvdi Mini Prog Standard Configuration And Function Overview 16



  1. Immo



Now, click “Immo” button, then we can see it supports several cars like BMW, Benz, Land Rover, Porsche and Volvo.

Let’s click “BMW”>>“BMW”again, we’ll see that we can read these many modules.

Let’s choose “CAS4+(5M48H)-BACK(ADAPTER)”, we’ll see the info. about the operations, namely, which adapters you should use and the connection diagram, usually you need to clip the adapter to the module.

Xhorse Vvdi Mini Prog Standard Configuration And Function Overview 17

Xhorse Vvdi Mini Prog Standard Configuration And Function Overview 18

Xhorse Vvdi Mini Prog Standard Configuration And Function Overview 19

  1. Instrument



As for “Instrument”, so far, it supports “HONDA”, “HYUNDAI” and “KIA”. Let’s choose “KIA”>>“K5MB91F067BS(ADAPTER)”, and it will show info. of the adapter and the connection diagram.

Xhorse Vvdi Mini Prog Standard Configuration And Function Overview 20

Xhorse Vvdi Mini Prog Standard Configuration And Function Overview 21

  1. ECU



About the “ECU”, it has the same interfaces as other modules.



Let’s click “BMW”>>“BMW” again >>“E_ENGINE_MEVD1724(N20)”, then we can the info. of the adapter and the connection diagram.

Xhorse Vvdi Mini Prog Standard Configuration And Function Overview 22

Xhorse Vvdi Mini Prog Standard Configuration And Function Overview 23

  1. Read ECU with CAN

The last icon, “Read ECU with CAN”, you can read ECU without dismantling.

Select “AUDI”>>“AUDI” again>>“EDC17CP54”, then the info. of the adapter and the connection diagram can be seen.

Xhorse Vvdi Mini Prog Standard Configuration And Function Overview 24

Xhorse Vvdi Mini Prog Standard Configuration And Function Overview 25

Xhorse Vvdi Mini Prog Standard Configuration And Function Overview 26
