Xhorse Key Tool Plus Program BMW 320D 2013 FEM/BDC All Key Lost

Purpose: Using Xhorse VVDI Key Tool Plus Pad to program a key for BMW 320D 2013 FEM/BDC when all key lost on bench.



Preparation

Remove FEM/BDC from BMW, connect it with FEM platform & Key Tool Plus.

Vvdi Key Tool Plus Program Bmw 320d 2013 Fem Bdc All Key Lost (1)



Read key info

Go to Key Tool Plus tablet,

IMMO programming >> Europe >> BMW >> Select from system >> FEM/BDC IMMO system >> Key function >. Start programming



Read key information >> Continue >> Continue

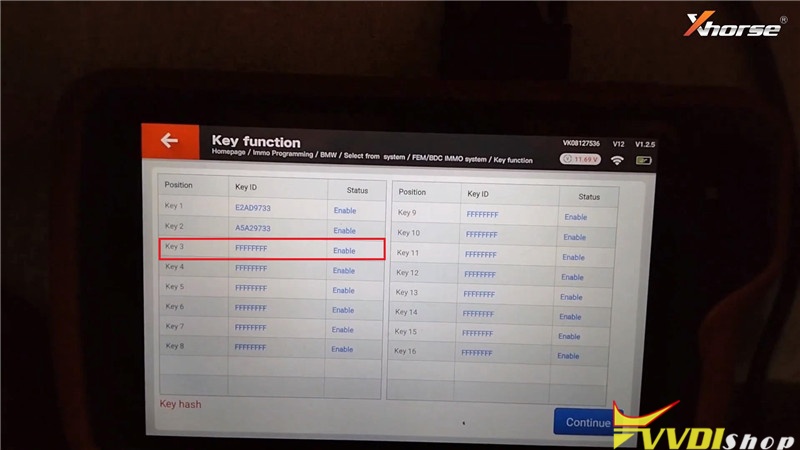

The Key 3 position is blank.

Note: prepare dealer key and reset KM require programming FEM/BDC, enable key and disable key no need programming FEM/BDC!

Vvdi Key Tool Plus Program Bmw 320d 2013 Fem Bdc All Key Lost (2)

Vvdi Key Tool Plus Program Bmw 320d 2013 Fem Bdc All Key Lost (3)

Vvdi Key Tool Plus Program Bmw 320d 2013 Fem Bdc All Key Lost (4)

Program FEM/BDC

Programming FEM/BDC system >> Process Wizard mode >> Begin



Open FEM/BDC module, read EEPROM dump via programmer.

To view the 95128/95256 chip position, press

OK >> OK

Vvdi Key Tool Plus Program Bmw 320d 2013 Fem Bdc All Key Lost (5)

Vvdi Key Tool Plus Program Bmw 320d 2013 Fem Bdc All Key Lost (6)

Vvdi Key Tool Plus Program Bmw 320d 2013 Fem Bdc All Key Lost (7)

Vvdi Key Tool Plus Program Bmw 320d 2013 Fem Bdc All Key Lost (8)

Whether to use Xhorse Key Tool Plus prog function to write service mode data? Yes



Remove the EEPROM, connect it to Key Tool Plus via EEPROM adapter.



Make sure the adapter and chip connected, press “Continue”.



Read successfully, rename and press “OK”.



Make sure the adapter and chip connected, press “Continue”.



Please restore FEM/BDC system, provide +12v and connect OBD,

Press “Yes” to continue.

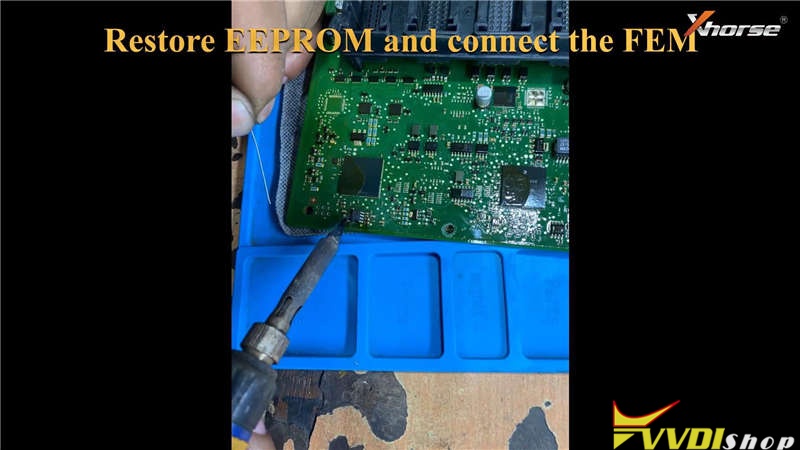

Restore EEPROM and connect the FEM.

Vvdi Key Tool Plus Program Bmw 320d 2013 Fem Bdc All Key Lost (9)

Vvdi Key Tool Plus Program Bmw 320d 2013 Fem Bdc All Key Lost (10)

Vvdi Key Tool Plus Program Bmw 320d 2013 Fem Bdc All Key Lost (11)



Open FEM/BDC shell, write the original EEPROM data read in the step2 to 95128/95256 chip, press “Yes” to continue.



Remove the EEPROM, connect it again to Key Tool Plus via EEPROM adapter.



Make sure the adapter and chip connected, press “Continue”.



Restore EEPROM and connect the FEM.



Write successfully, please restore FEM/BDC system, power and connect OBD.

Continue after finish.

Press “OK”.



Do you want to verify the write coding? Press “Yes”.



FEM/BDC programming success, you can make new dealer key from the main window!

OK >> Exit

Vvdi Key Tool Plus Program Bmw 320d 2013 Fem Bdc All Key Lost (12)

Vvdi Key Tool Plus Program Bmw 320d 2013 Fem Bdc All Key Lost (13)

Vvdi Key Tool Plus Program Bmw 320d 2013 Fem Bdc All Key Lost (14)



Program key

Go to “Prepare dealer key with ignition switch” >> Select a blank key position: Key 3

Note:

For all key lost, read ISN from ECU;

For adding key, read ISN from working key.

Vvdi Key Tool Plus Program Bmw 320d 2013 Fem Bdc All Key Lost (15)

Vvdi Key Tool Plus Program Bmw 320d 2013 Fem Bdc All Key Lost (16)

Known ISN >> Input ISN value >> OK



Insert a new key to ignition switch, turn on or put it close to emergency start position.

Press “OK”.



Key learn success!



Go to read key information again, Key 3 is with data now.

Vvdi Key Tool Plus Program Bmw 320d 2013 Fem Bdc All Key Lost (17)

Vvdi Key Tool Plus Program Bmw 320d 2013 Fem Bdc All Key Lost (18)

Vvdi Key Tool Plus Program Bmw 320d 2013 Fem Bdc All Key Lost (19)

Vvdi Key Tool Plus Program Bmw 320d 2013 Fem Bdc All Key Lost (20)

Key programming has done!



This is BMW 320D 2013 FEM/BDC all key lost key programming via VVDI Key Tool Plus successfully!
