Xhorse VVDI Key Tool Plus Adds ID47 Key for Honda Jazz RS 2019

Xhorse VVDI Key Tool Plus can program a new remote key for Honda Jazz RS 2019 successfully. Here we go to demonstrate how to operate.



Tools

Xhorse VVDI Key Tool Plus Pad

An original working key

A Xhorse XSKF01EN Smart Remote

Xhorse Vvdi Key Tool Plus Adds Id47 Key For Honda Jazz Rs 2019 (1)

Procedure

After connecting Key Tool Plus with OBD, let’s check the original key first.



  1. Read & Generate Remote

Put the working key into Key Tool Plus coil key hole, press

Transponder clone >> Read transponder

It is ID47 chip(PCF7938).

Xhorse Vvdi Key Tool Plus Adds Id47 Key For Honda Jazz Rs 2019 (2)



Go back to main page, put XS remote into key hole instead, press

Remote program >> Asia >> Honda >> All remotes >> Fit/CR-V KeylessGo ID47 433M >> Generate



It is writing key, please wait until 100%…



Burn success.

Xhorse Vvdi Key Tool Plus Adds Id47 Key For Honda Jazz Rs 2019 (3)

Xhorse Vvdi Key Tool Plus Adds Id47 Key For Honda Jazz Rs 2019 (4)

Xhorse Vvdi Key Tool Plus Adds Id47 Key For Honda Jazz Rs 2019 (5)



  1. Program New Key

Go back to main page, press

IMMO programming >> Asia >> Honda >> Fit >> Smart key system(button type)(2018-) >> Start programming >> Add smart key

Xhorse Vvdi Key Tool Plus Adds Id47 Key For Honda Jazz Rs 2019 (6)

Xhorse Vvdi Key Tool Plus Adds Id47 Key For Honda Jazz Rs 2019 (7)



Follow the prompts to operate:



Turn off ignition switch, press “OK”.

Switch ignition on, press “OK”.



Confirm key number, press “OK”.



Take all smart keys out of the car, press “OK”.

Put a programmed smart key inside the car, press “OK”.

Take all smart keys out of the car, press “OK”.

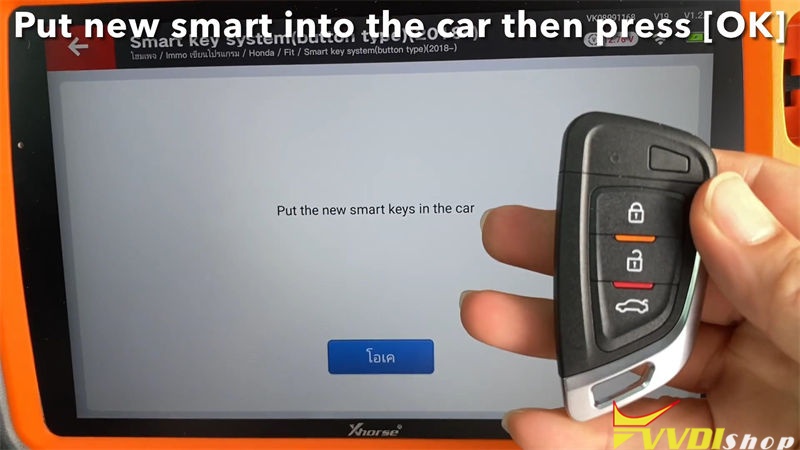

Put the new smart keys in the car, press “OK”.



Identifying key…

Now you can see the LED light on remote is blinking.

Xhorse Vvdi Key Tool Plus Adds Id47 Key For Honda Jazz Rs 2019 (8)

Xhorse Vvdi Key Tool Plus Adds Id47 Key For Honda Jazz Rs 2019 (9)

Xhorse Vvdi Key Tool Plus Adds Id47 Key For Honda Jazz Rs 2019 (10)

Xhorse Vvdi Key Tool Plus Adds Id47 Key For Honda Jazz Rs 2019 (11)



Turn off ignition switch.

Switch ignition on.

Turn off ignition switch.

Turn ignition on.



Whether indicator light is out? Yes



Turn off ignition switch.

Switch ignition on.

Turn off ignition switch.

Switch ignition on.

Confirm key number, press “OK”.



Smart keys registration completed!

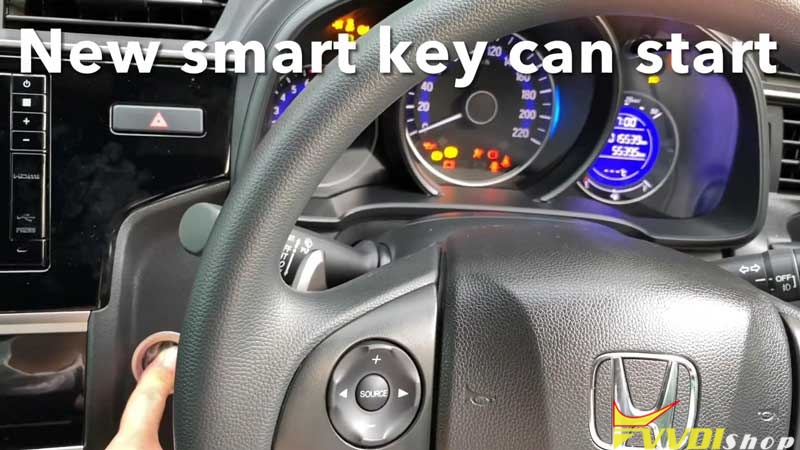

Let’s test the new key, the remote works fine, and it can start the car.

Done!

Xhorse Vvdi Key Tool Plus Adds Id47 Key For Honda Jazz Rs 2019 (12)

Xhorse Vvdi Key Tool Plus Adds Id47 Key For Honda Jazz Rs 2019 (13)

Xhorse Vvdi Key Tool Plus Adds Id47 Key For Honda Jazz Rs 2019 (14)

Xhorse Vvdi Key Tool Plus Adds Id47 Key For Honda Jazz Rs 2019 (15)

This is a tutorial of how to use VVDI Key Tool Plus Key Programmer to add a ID47 remote for Honda Jazz RS 2019.
