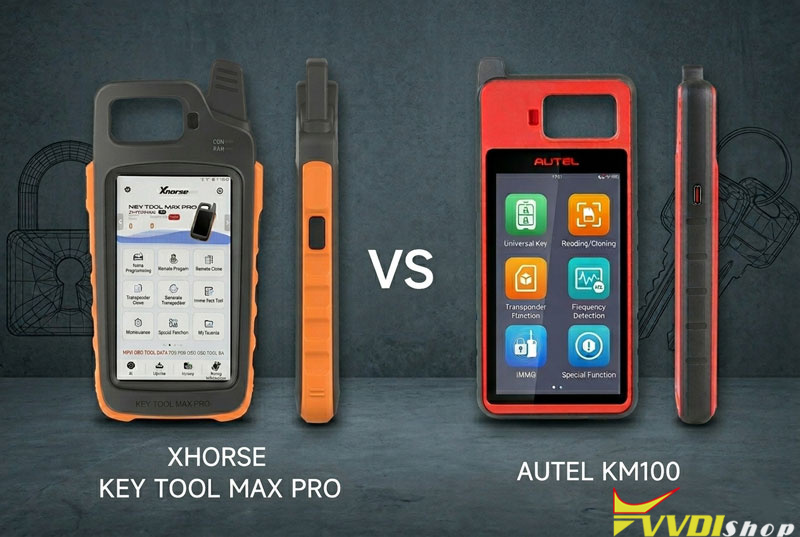

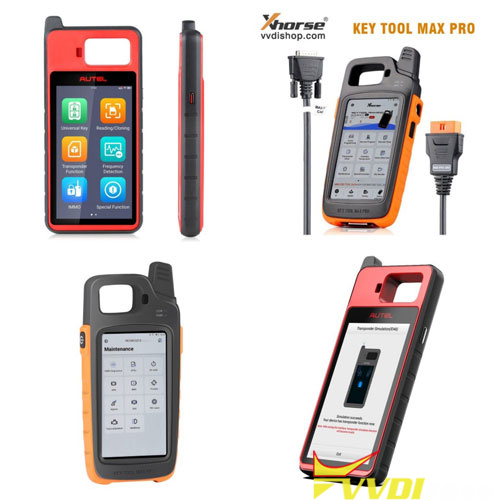

I’ve used both the Autel KM100 and Xhorse VVDI Key Tool Max Pro in real locksmith work, not just demos or bench testing.In actual use, they don’t really compete directly.
KM100 is more of a guided, routine key programming tool.
Xhorse is more of a flexible system for complex or unusual immobilizer situations.
It’s less about which is better, and more about what kind of job you are dealing with.
Quick Practical Difference
In daily workshop work, the difference becomes obvious pretty quickly.
KM100 is predictable. You follow the steps, and it usually just works for standard jobs.
Key Tool Max PRO gives you more control, but also more responsibility on the technician side.
Simple way to look at it:
KM100 = structured workflow, low thinking required
Key Tool Max PRO= manual logic, more edge-case handling
Who Actually Uses What
KM100 is mostly used by:
- Beginner locksmiths
- Mobile techs doing routine key programming
- Shops that want fast turnaround without complexity
Xhorse Key Tool Max Pro is more common with:
- Experienced locksmiths
- Technicians dealing with mixed or modified systems
- People who already understand immobilizer logic
KM100 reduces decision-making.
Key Tool Max PRO increases flexibility.
Real Workshop Case
One example: Volkswagen Golf with a mixed module setup (Jetta-style comfort configuration).
This is where the difference shows up clearly.
With KM100, the process followed the normal programming path, but stopped when the configuration didn’t match expected data.
With Key Tool Max PRO, the approach was more manual. RF generation and transponder handling could be separated, which allowed the job to continue.
Same vehicle, different outcome based on tool flexibility.
Strengths vs Limitations
Autel KM100
Strengths:
- Very smooth guided workflow
- Fast for standard key jobs
- Stable and predictable
- Easy to train new users
Limitations:
- Not flexible in edge cases
- Fixed programming logic
- Error messages are not always clear
- Limited workaround options
Xhorse Key Tool Max Pro
Strengths:
- High flexibility in key generation
- Better for non-standard immobilizer systems
- More control over programming steps
- Frequent feature updates
Limitations:
- More complex workflow
- Requires experience to use properly
- Updates can be inconsistent at times
- Cloud-based file handling adds extra steps
Final Take
No real winner here.
KM100 = faster for routine work.
Key Tool Max PRO = better when things get complicated.
Most techs don’t pick one.
They just use both depending on the job.
