Program 2022 Volvo XC60 all keys lost with Xhorse VVDI Key Tool Plus successfully.

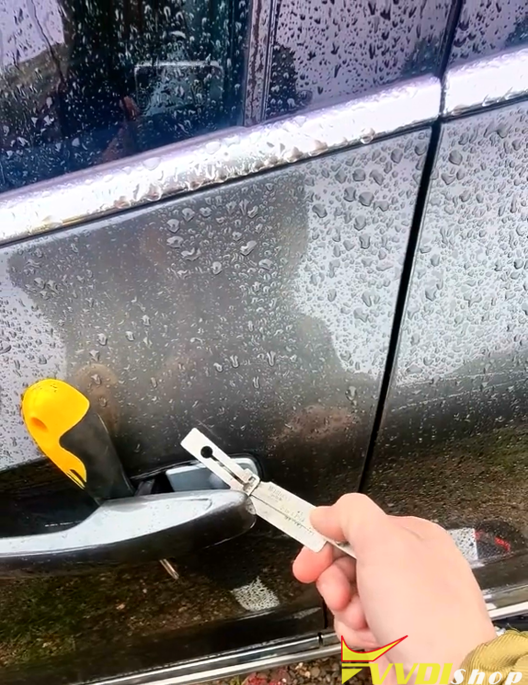

Decode lock with Lishi auto pick.

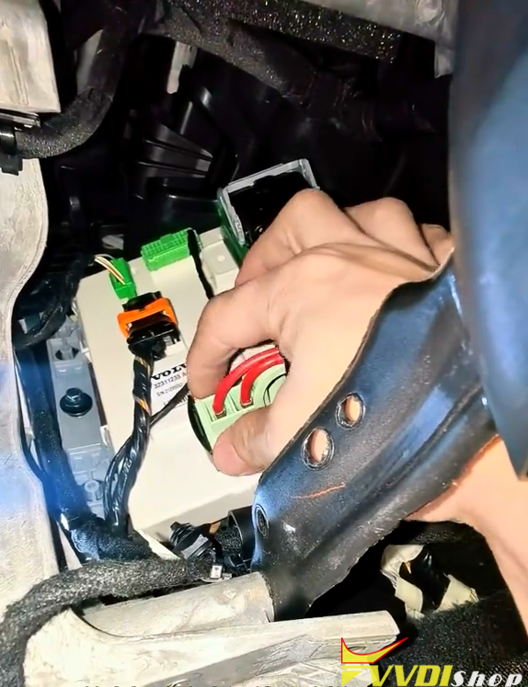

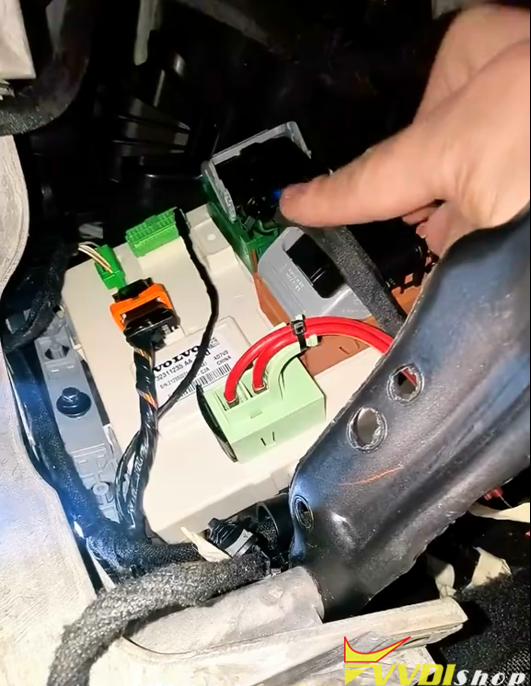

Remove CEM module under the instrument on the driver’s side.

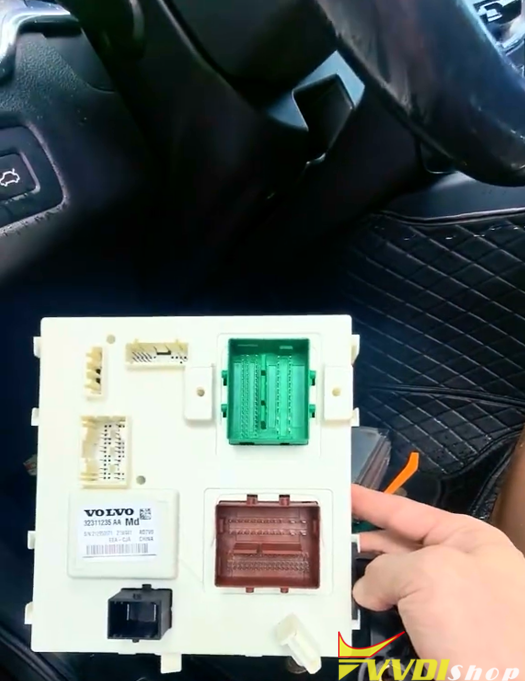

Disassemble the CEM module and read data with key tool plus.

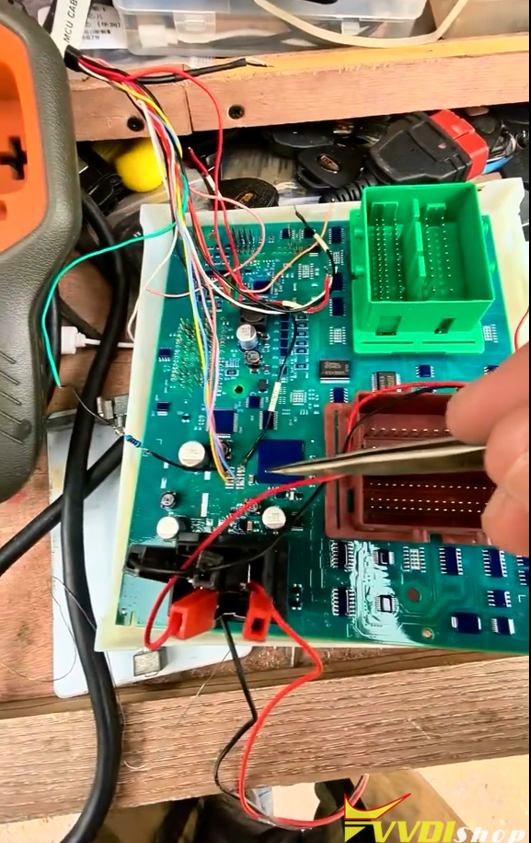

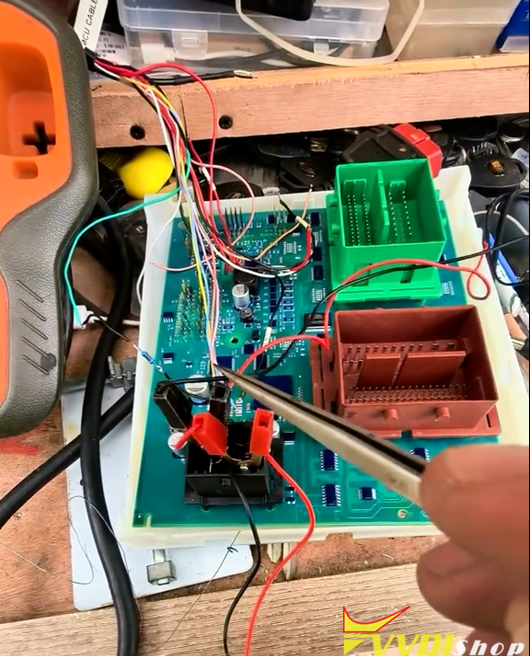

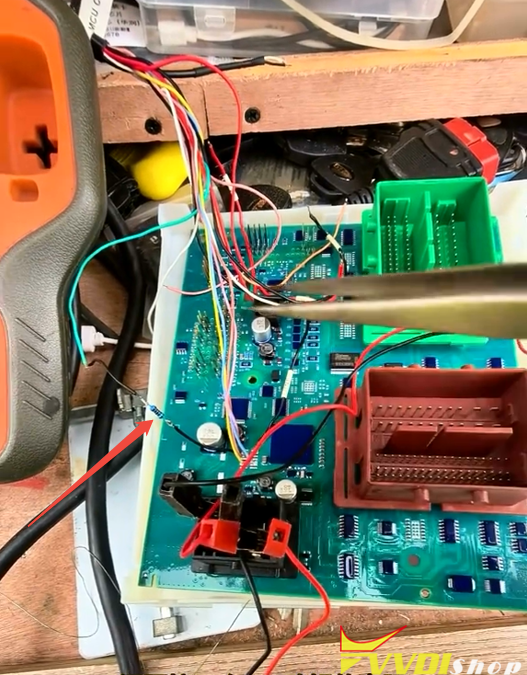

Connect 6 wires on the CEM circuit board. Also requires soldering a 100 ohm resistor on the green wire.
After you finish reading the CEM data, it’s best to tidy up all the solder joints.
Then program key via CEM dump.
Images attached:
