Xhorse VVDI-Prog read and flash EZS MC9S12 very fast within 2 minutes. Here is the Audi A6L/Q7 J158 MC9S12 pin out to VVDI Prog.

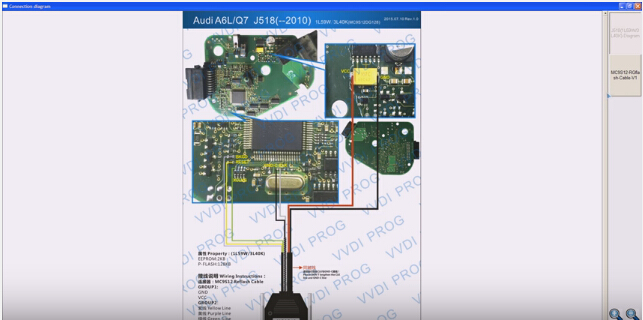

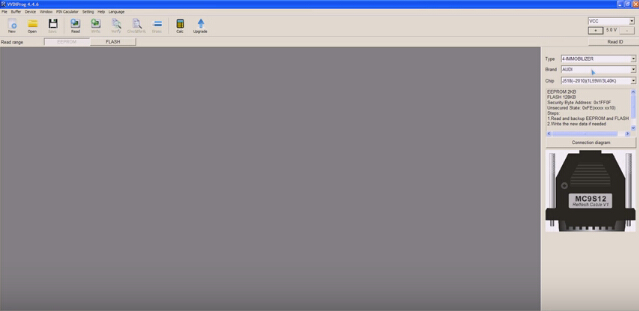

First select type, brand and chip, it will prompt to connect with MC9S12 adapter.
Audi A6L/Q7 J158 (–2010) 1L59W/3L40K(MC9S12DG128) full pinout

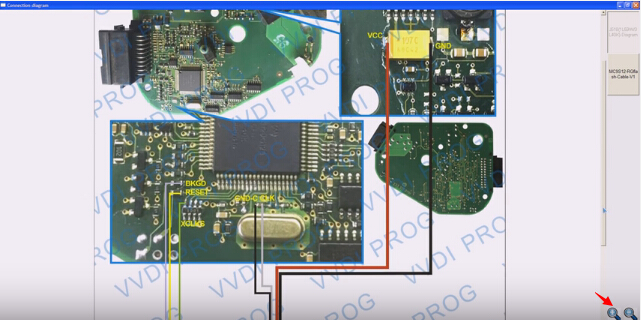

Follow the pinout to solder and connect ezs well with vvdi prog programmer.

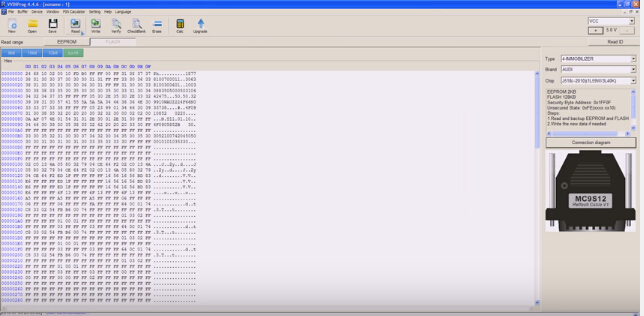

Click read to read ezs data

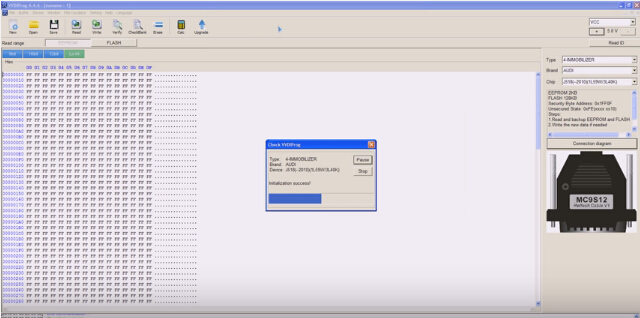

Read data very fast, start flashing data
