Some people reported that xhorse vvdi key tool max pro would not charge even changing different power adapters.
Here are the suggestions.
There is a 5-volt stabilitron and the device itself was designed to be charged with a 5-volt charge (not a smart one), and since the people try to charge it with any charger (smart one), which changes the input voltage from internal resistance, it burns out this stabilitron and shortens it.
1. Do not use a fast charge brick.
For example don’t use those Samsung wall adapters, output is based off of the fast charging platforms for Samsung Devices.
Has to be low amp, and not variable volt/amp like fast charge samsung.
2. Use original charger cable, if failed try change another power adapter or port. Or try differnet cubes but use the original cable.
3. [Xhorse engineer solution] Connect another end of the usb cable to laptop/computer. Connect USB to computer for power supply. It charges great.

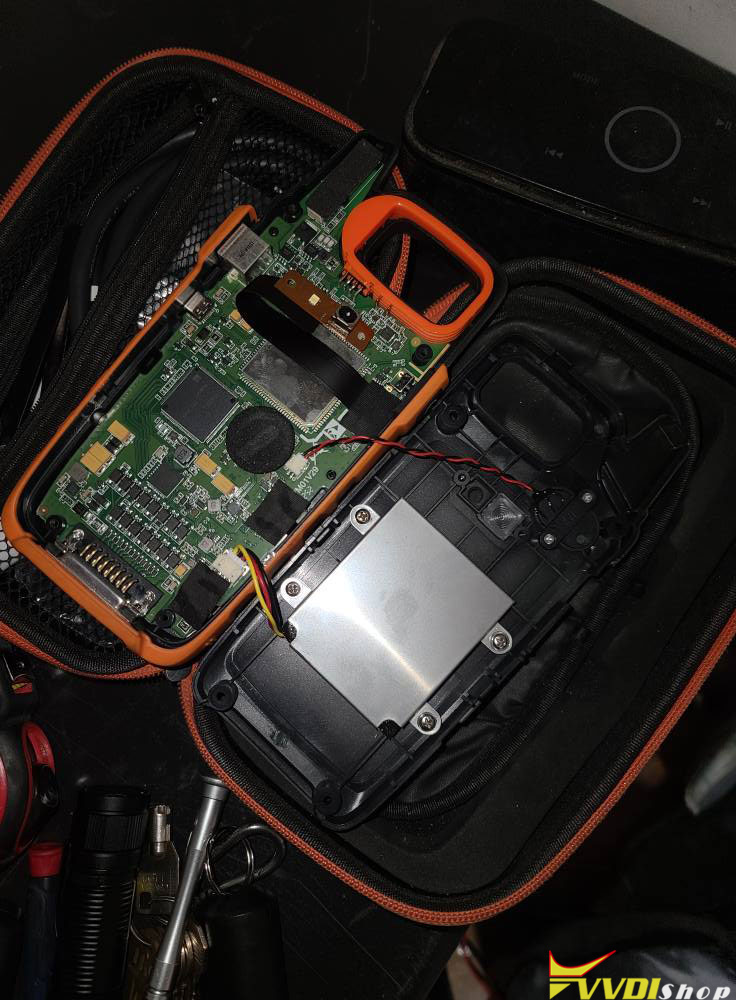

If all failed, replace this diode on key tool max pro main board, or send back to replace. It’s a smaj 6.0CA or SMBJ8.0A.
