VVDI PROG & VVDI MB: Quick Mercedes Vito W639 AKL Tutorial

If you’re a locksmith or auto key specialist facing an “all keys lost” job on a Mercedes Vito 2008 (W639), this guide is for you. I’ll walk you through the full process using the Xhorse VVDI toolchain – a reliable and efficient method we use daily. No guesswork, just clear steps.



Tools You Will Need:

Xhorse VVDI PROG Programmer – for reading the EIS data

Xhorse VVDI MB BGA Tool – for key programming

Xhorse Key Cutting Machine – for cutting the blade

BENZ HC08 Adapter Board – for W639 EIS reading

EIS Removal Tool Set

Lock Pick Set (optional, for non-destructive entry)



Step 1: Entry & Blade Decoding

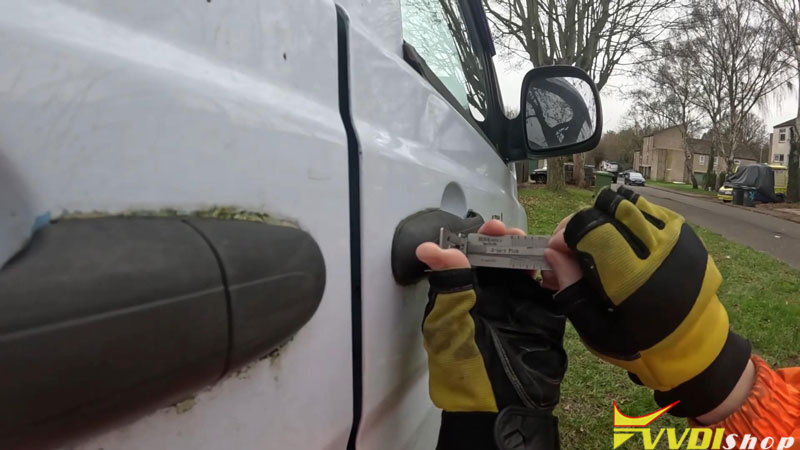

1. We started by gaining access to the vehicle using a lock pick. Once inside, we decoded the door lock to get the mechanical cut code.
2. Decode result: Positions 1, 2, 3, 5.
3. This code was sent to cut a new blade using the Xhorse Key Cutting Machine. Having a physical blade ready early speeds up the whole job.



Step 2: Removing the EIS (Ignition Switch)

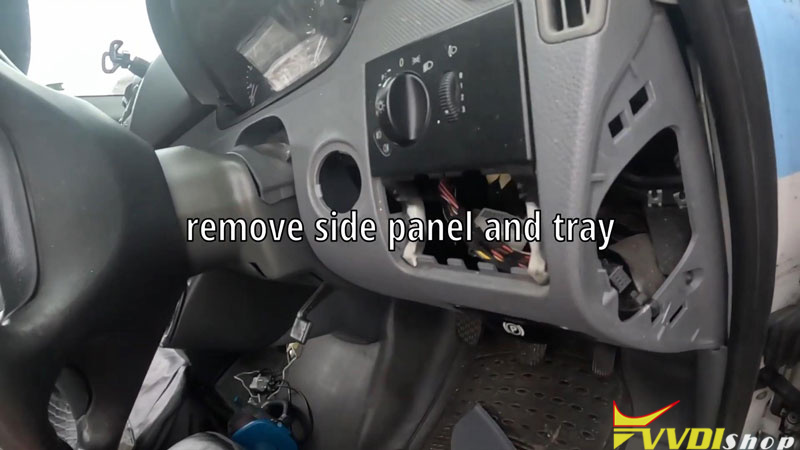

With the door open, we targeted the EIS. Using a dedicated EIS removal tool, we accessed it through the dash tray – the easiest route on this model.

Tip: Handle the EIS carefully. It holds all the vehicle’s key data.



Step 3: Reading EIS Data with Xhorse VVDI PROG

Here’s where the VVDI PROG shines.

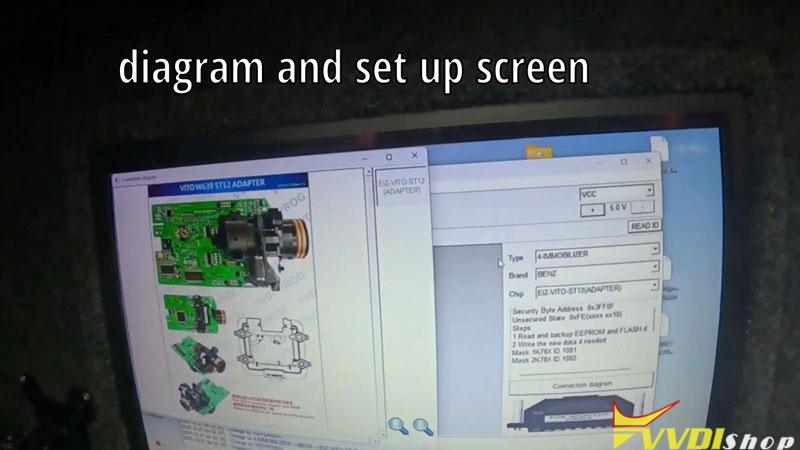

1. Connect the EIS to the programmer using the BENZ HC08 Adapter Board.
2. Read the switch data in seconds.
3. Save the file securely.



This step extracts the vehicle’s “key fingerprint.” Without this data, you can’t program a new key.

Step 4: Preparing & Writing the Key with Xhorse VVDI MB

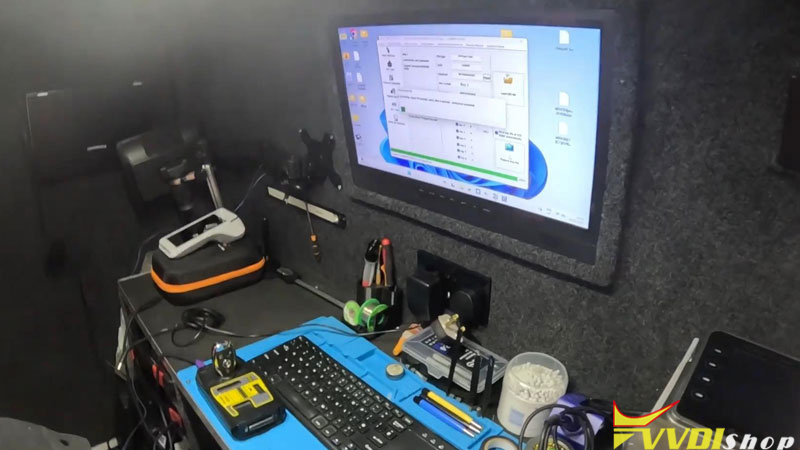

Next, we switched to the VVDI MB Tool.

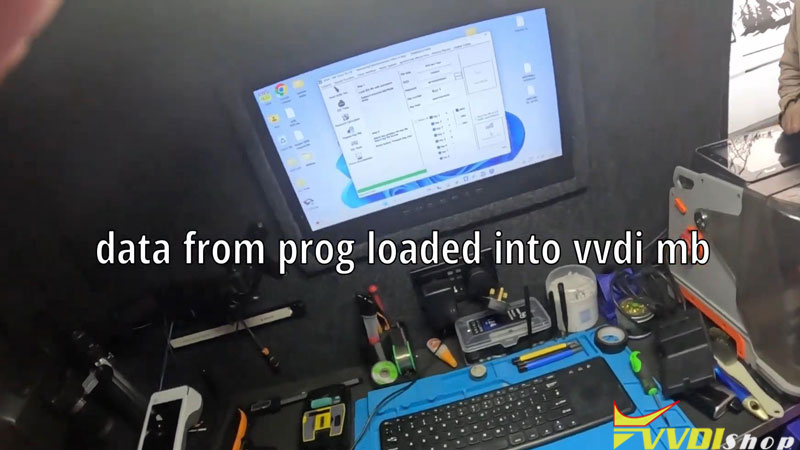

1. Upload the saved EIS file via the “Prepare Key File” function.
2. The system generates individual key files – fast and cloud-based.
3. Select the key slot (we used slot 8 for this client).
4. Write the file to a blank Mercedes key.

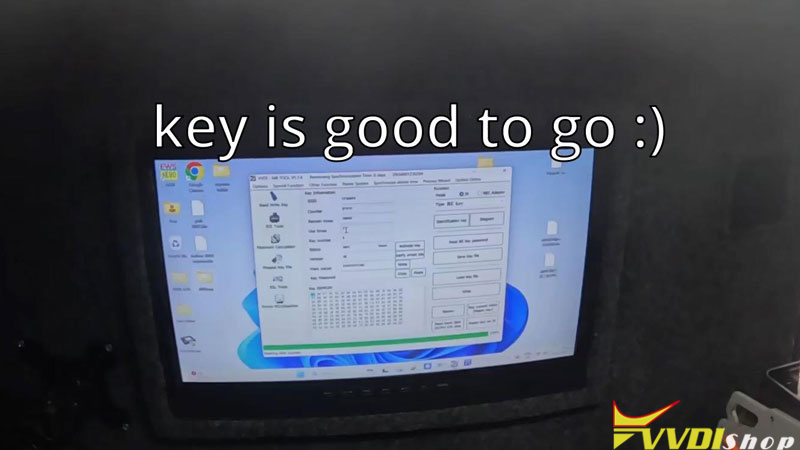

The tool confirms everything: key number, SSD data, and usage counter. It’s all integrated and foolproof.

Step 5: Testing & Finishing Up

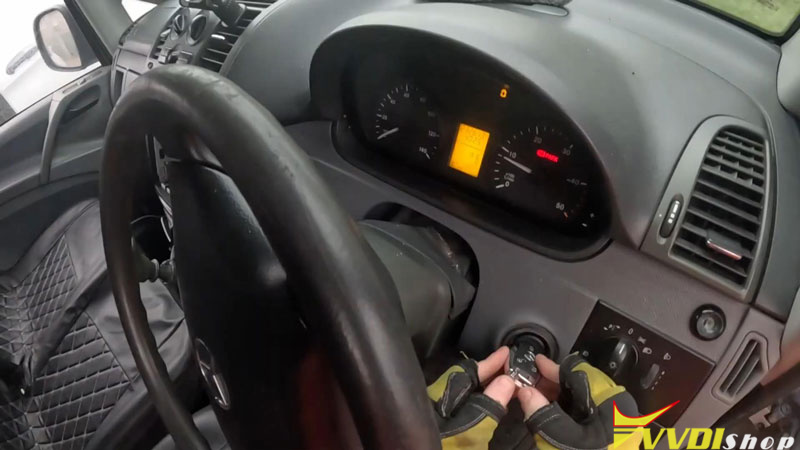

We reinstalled the EIS, reconnected all plugs, and tested the new key.
Result: The van started immediately – both the blade and transponder worked perfectly.

Why This Method is a Game-Changer

Using Xhorse VVDI PROG + VVDI MB turns a complex “all keys lost” job into a streamlined process:

• No diagnostics needed
• Fast reading and writing
• Reliable results
• Works on Vito, Sprinter, and similar Mercedes models
