Xhorse VVDI Prog Pinout to VAG MQB 3Q0 ELV

Here comes the VAG 3Q0 ELV (electronic steering column lock) pinout to Xhorse VVDI Prog programmer.



Xhorse Vvdi Prog 3Q0 ELV Pinout 2

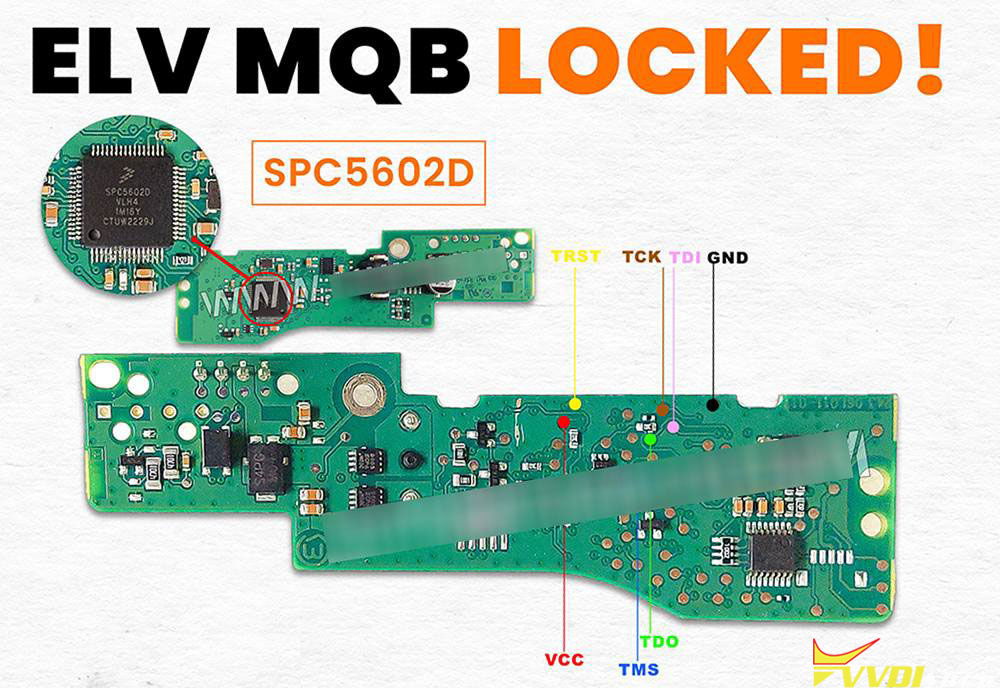

ELV MQB Locked

SPC5602D

Xhorse Vvdi Prog 3Q0 ELV Pinout 3

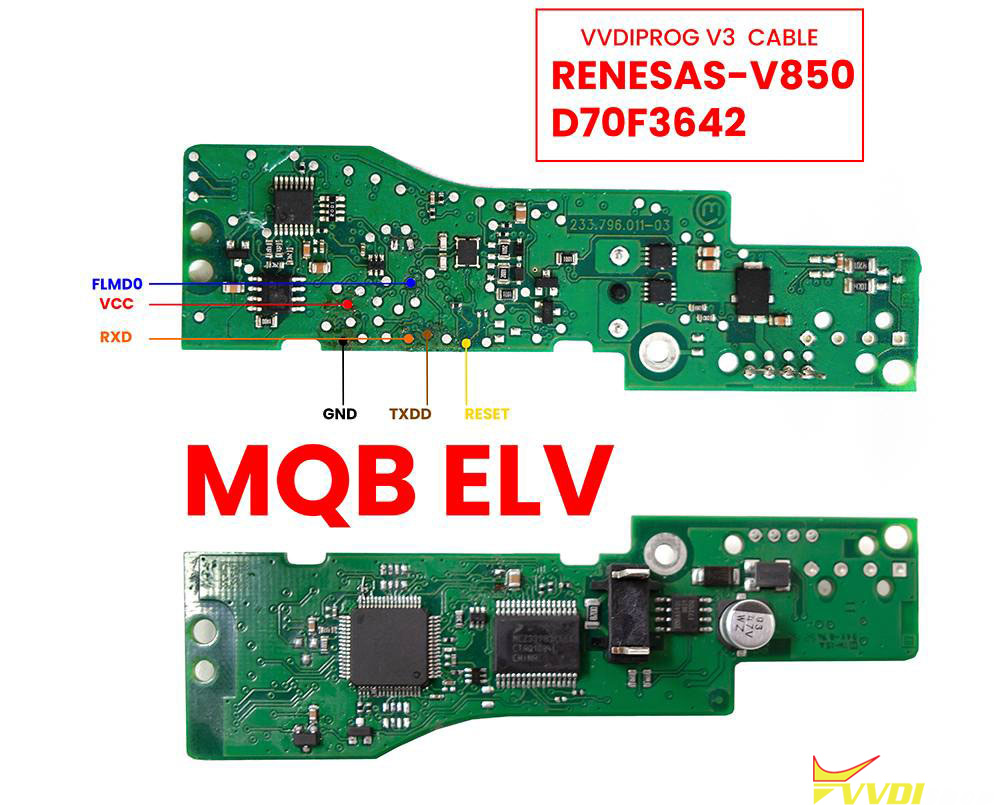

Renesas V850 D70F3642 pinout to vvdi prog.

Vvdi Prog 3q0 ELV Pinout 4

Xhorse multi prog also works ok for elv 3Q0. 3Q0 elv with sw version 0032 have mcu unsecured so you can read easy, rest of them 5q0, 5k0 etc have all mcu secured and need device to bypass security.

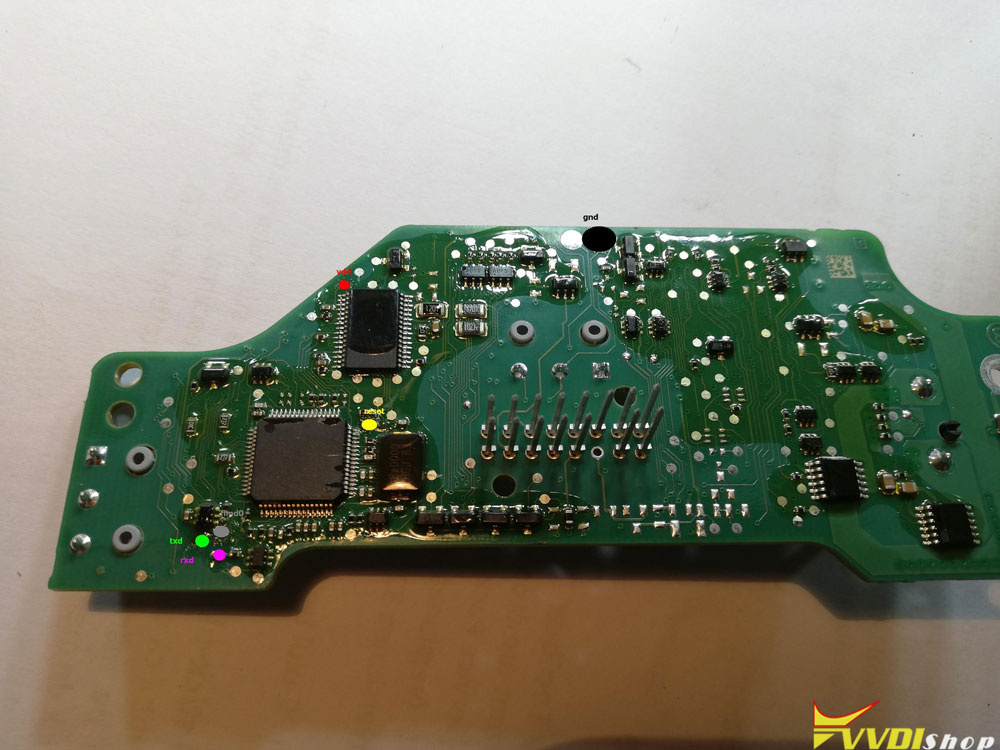

Xhorse Vvdi Prog 3Q0 ELV Pinout 1
