Good news! Xhorse VVDI Key Tool Plus VAG MQB49/5C and 5C add key function is ready.
Compatible device:
Xhorse VVDI Key Tool Plus (only key tool plus does this at present)
MQB license activation
Key Features & Vehicle Compatibility
This update significantly expands your service range for Volkswagen, Skoda, Audi, and Porsche. Here is what’s included in the new rollout:

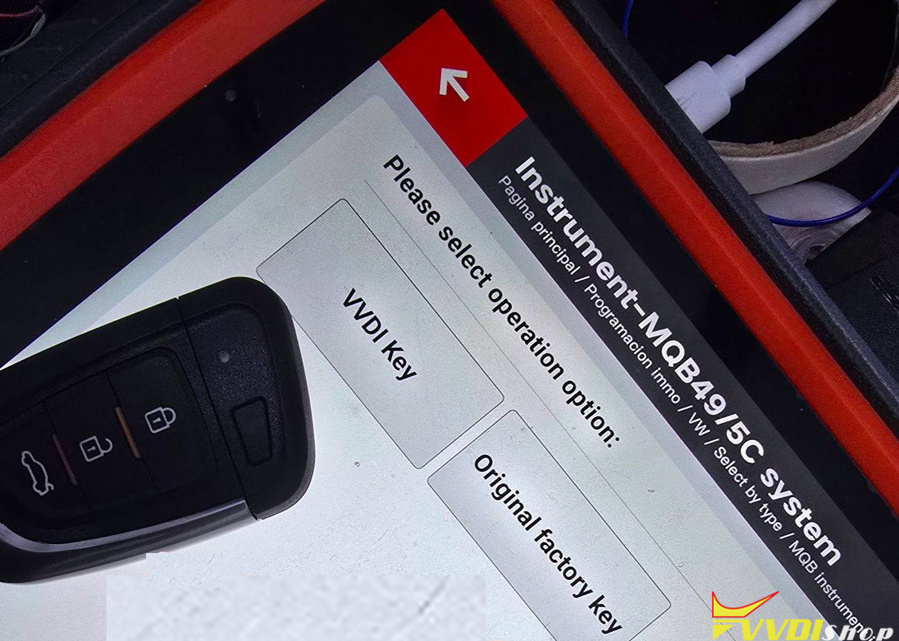

- 5C System Support: Fully compatible with Xhorse VVDI Smart Keys and original keys, whether they are locked or unlocked.
- 5D System Support: Currently supports original keys.

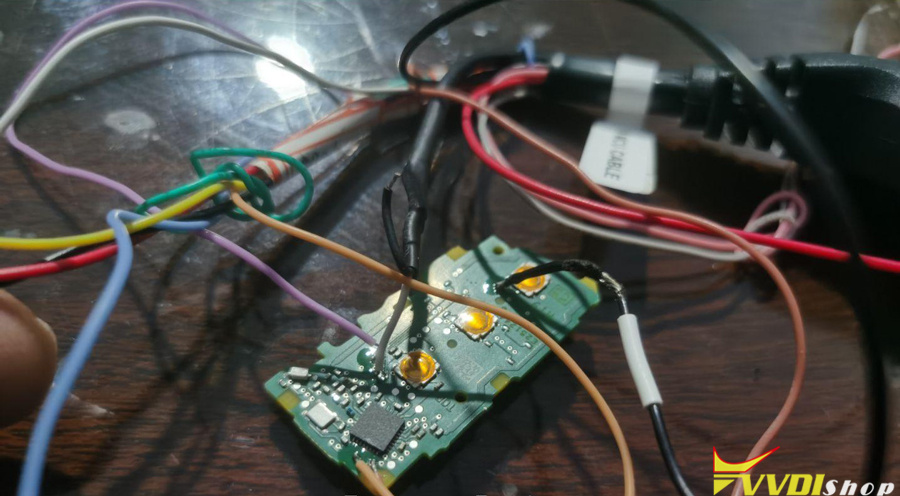

- Reading Methods: The VVDI KEY TOOL PLUS currently supports soldered reading. A solder-free adapter solution is expected to be supported in the near future.
Technical Requirements
To access these new features, ensure your hardware meets the following specifications:
Device: KEY TOOL PLUS (Advanced Version).
Firmware: Must be updated to version V.143 or higher.
Update IMMO database to V142 and PROG database to V187 and newer to update VAG 5C and 5D function.
Why Update Your Xhorse Tools?
1. Cost Savings: This is a 100% free upgrade—no hidden tokens or licensing fees for 5C/5D programming.
2. Stay Ahead of the Curve: Support the latest key models from major European brands, ensuring you never have to turn a customer away.
3. Future-Proofing: While currently focused on the KEY TOOL PLUS, Xhorse is actively working on expanding support to more devices.

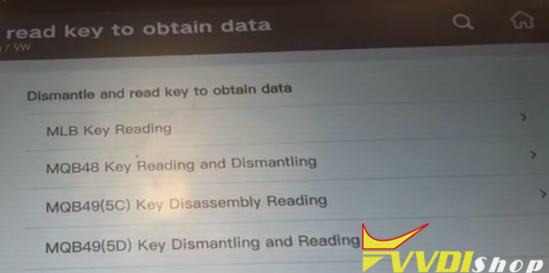

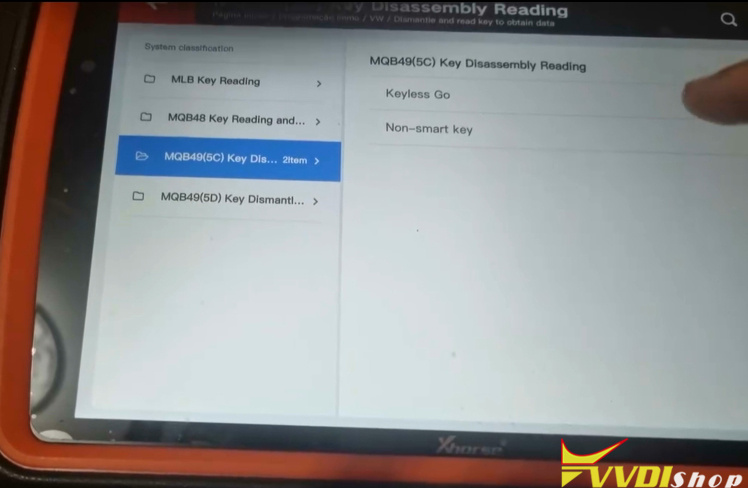

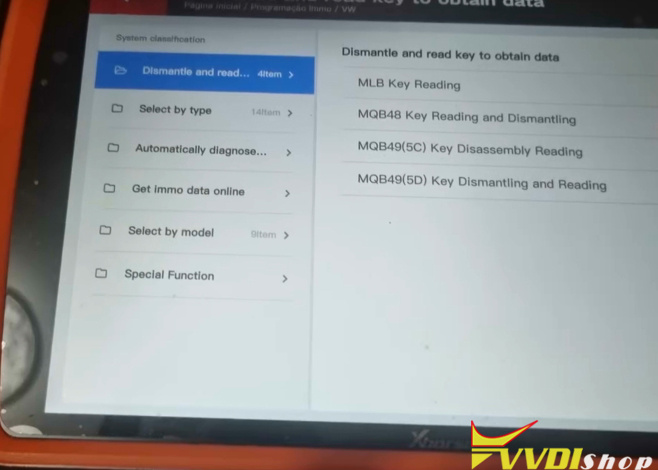

Menu path: IMMO Programming- VW- Select by type- MQB instrument- read key to obtain data – MQB49 (5C) key disassembly reading or MQB49 (5D) key dismantling and reading.

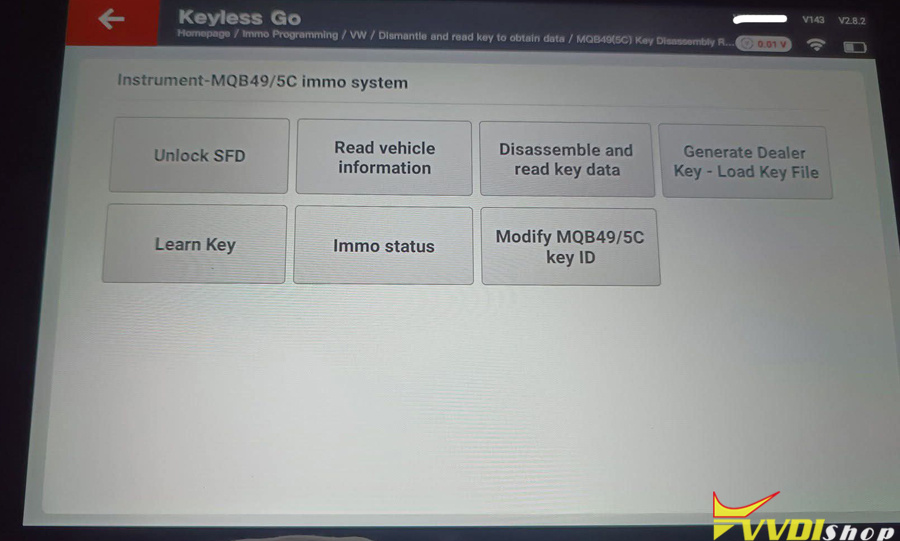

Main steps:

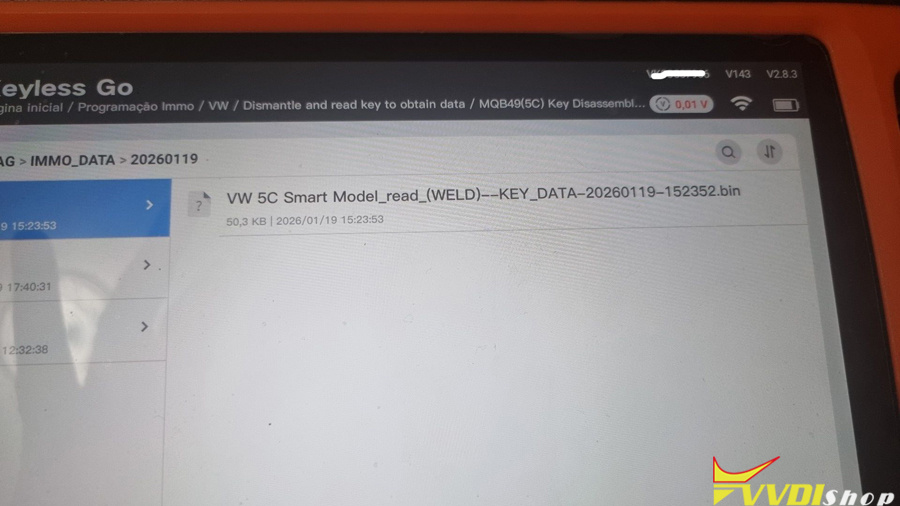

Read original key data

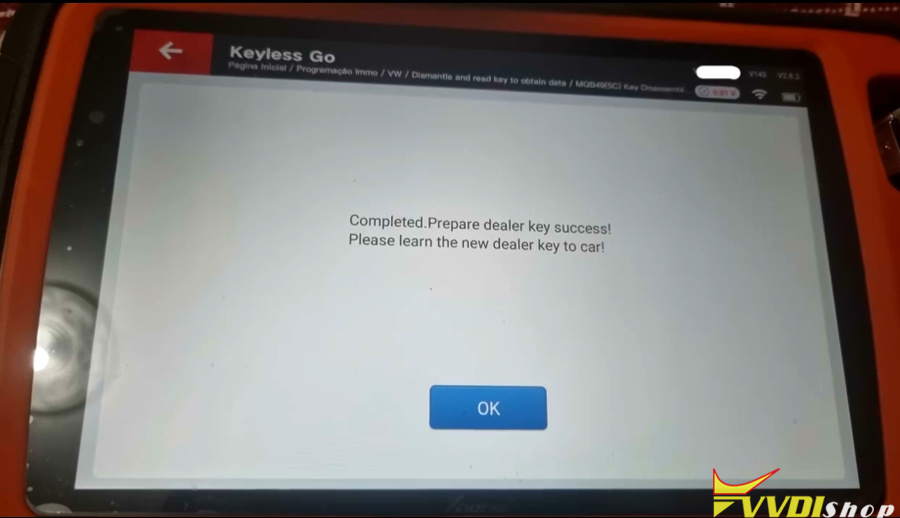

Generate dealer key by uploading key file.
Learn key
For some 2023+ models you may also need to unlock SFD gateway before learning key in car.
NOTE:
Xhorse will release solder free adapter for MQB49 5C and 5D soon.
