Xhorse Multi Prog Read Can-Am Commander ME17.8.5 ECU on Bench

September 9, 2025 VVDISHOP Xhorse ECU programmer 0

User report:

Read Can-Am Commander Bosch ME17.8.5 (TC1792) ECU with Xhorse Multi Prog on bench successfully.

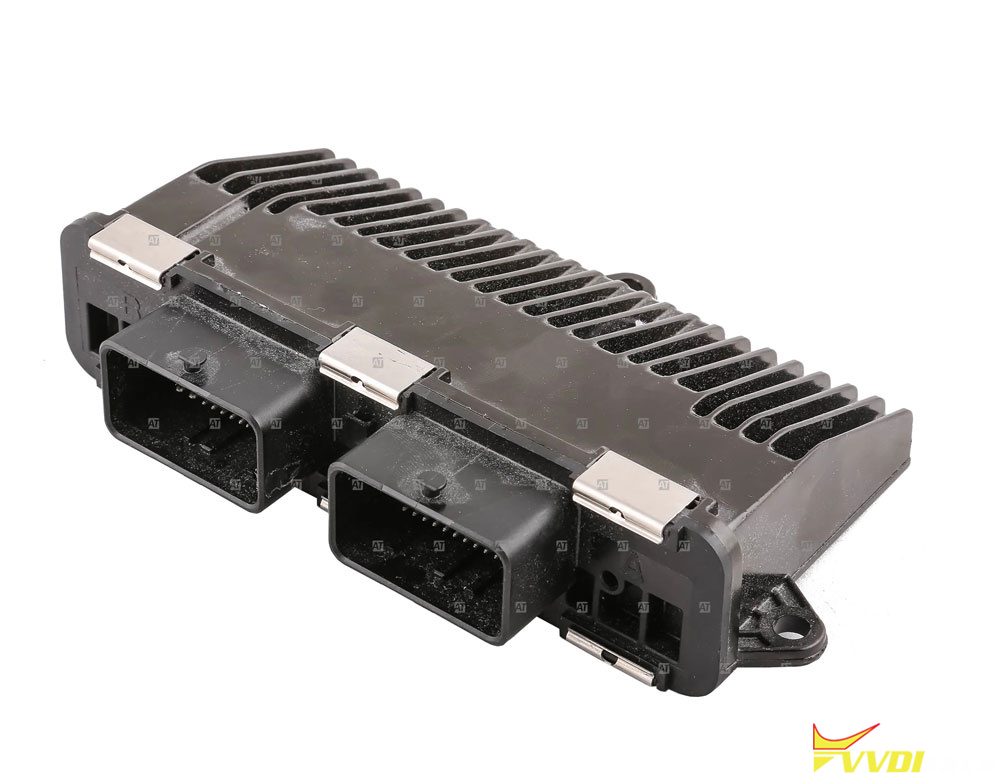

Xhorse Multi Prog Can Am Commander ME17.85 Ecu

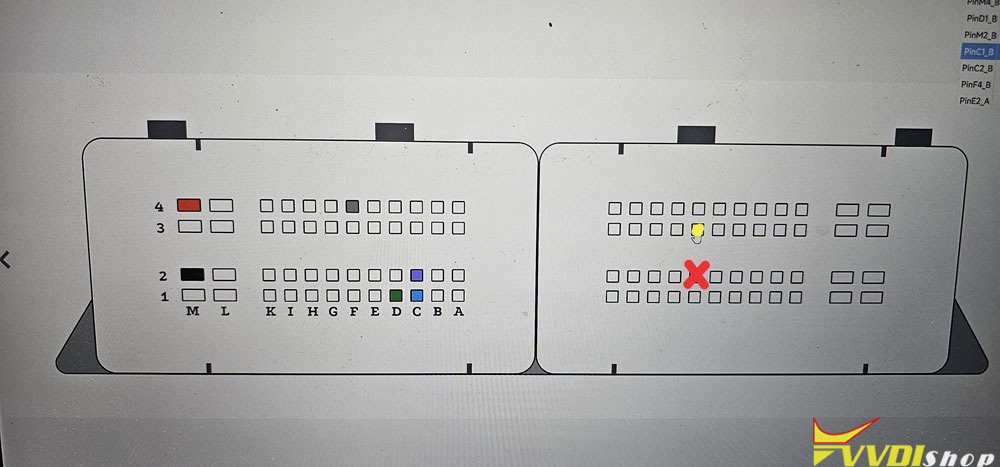

Here is the bench pinout.

Xhorse Multi Prog Can Am Commander ME17.8.5 Ecu 2

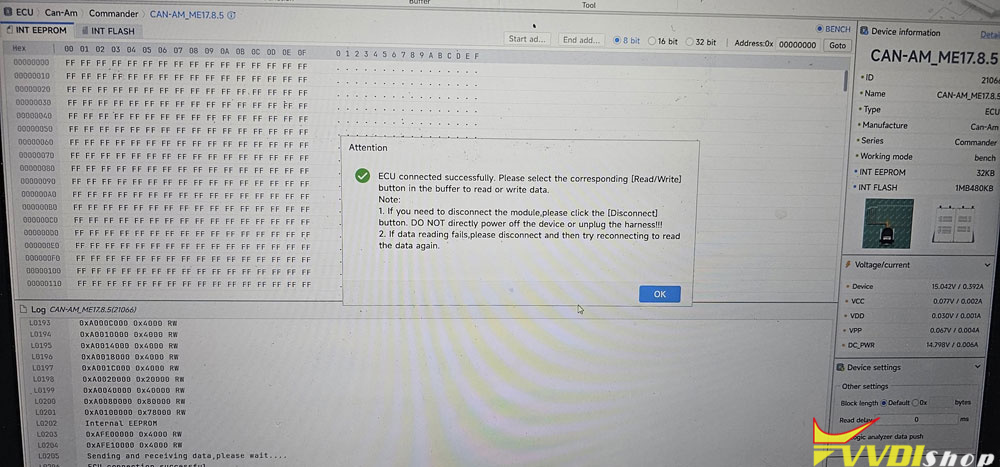

Hit Connect to connect ECU first.

Xhorse Multi Prog Can Am Commander ME17.8.5 Ecu 1

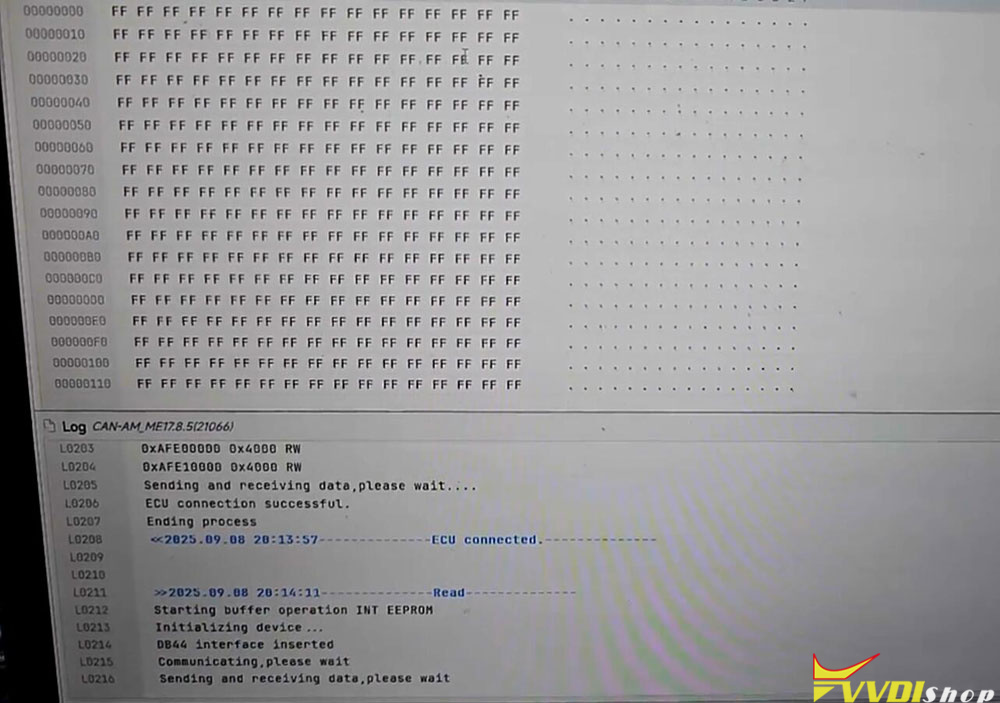

Read INT eeprom successfully.

Xhorse Multi Prog Can Am Commander ME17.8.5 Ecu 3

Xhorse Multi Prog Can Am Commander ME17.8.5 Ecu 4

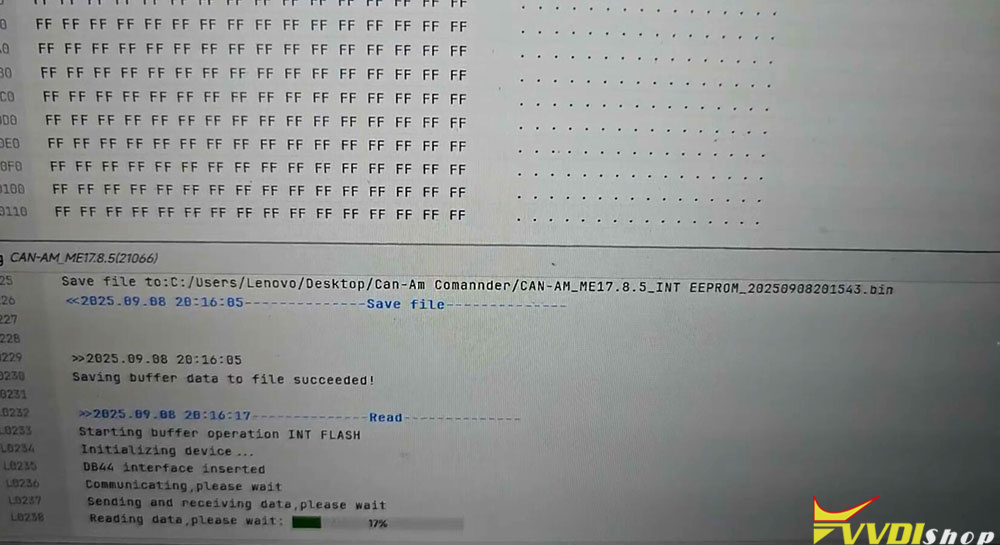

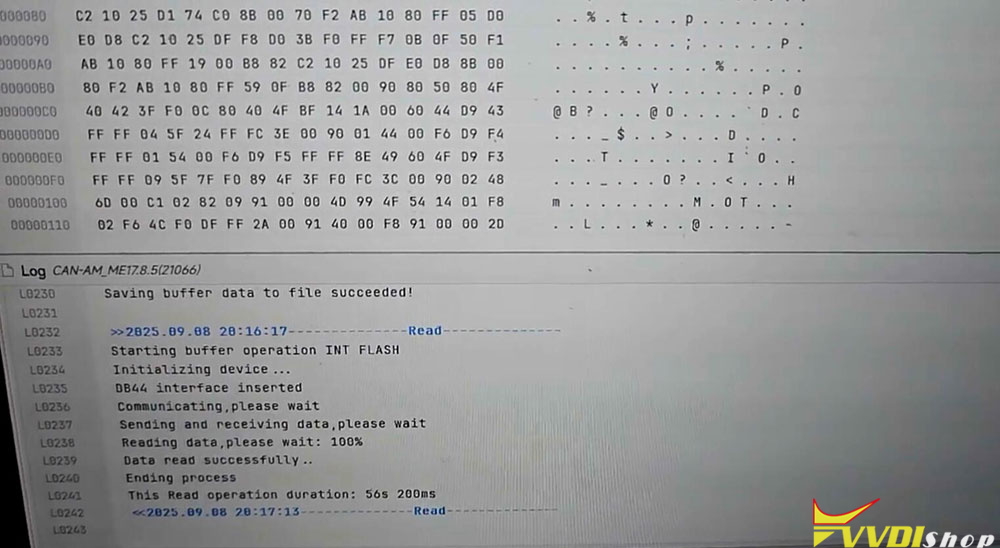

Read INT flash successfully.

Xhorse Multi Prog Can Am Commander ME17.8.5 Ecu 5

Xhorse Multi Prog Can Am Commander ME17.8.5 Ecu 6
