Yamaha NMax 2025 keyless unit pinout to Xhorse Multi Prog.

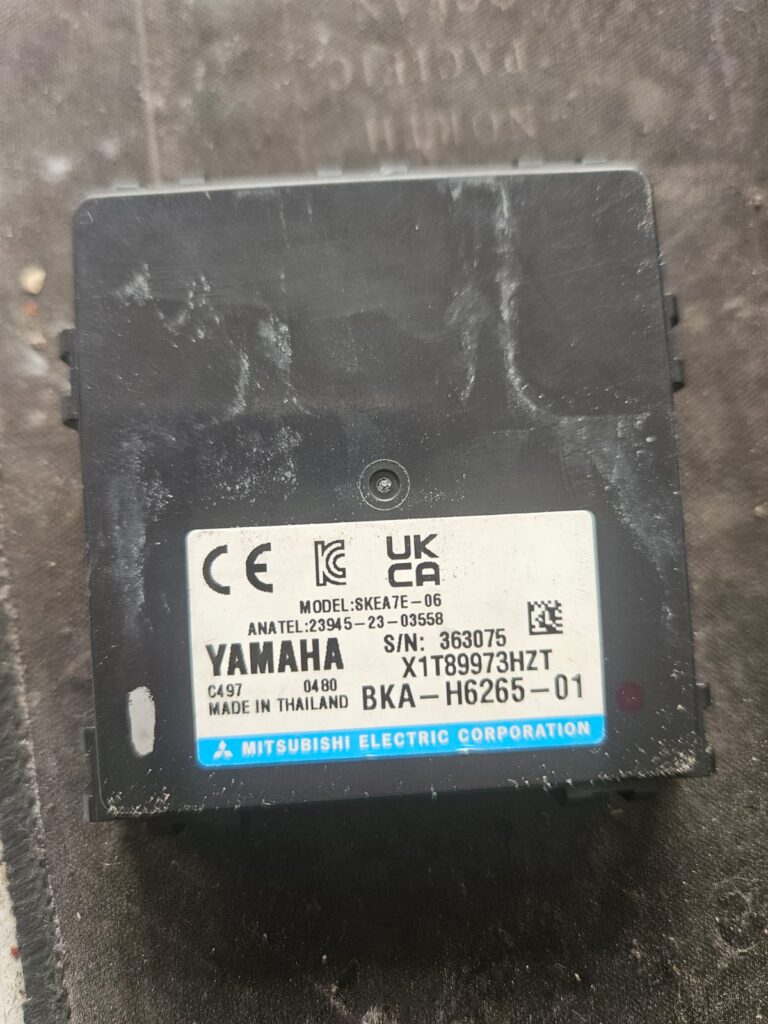

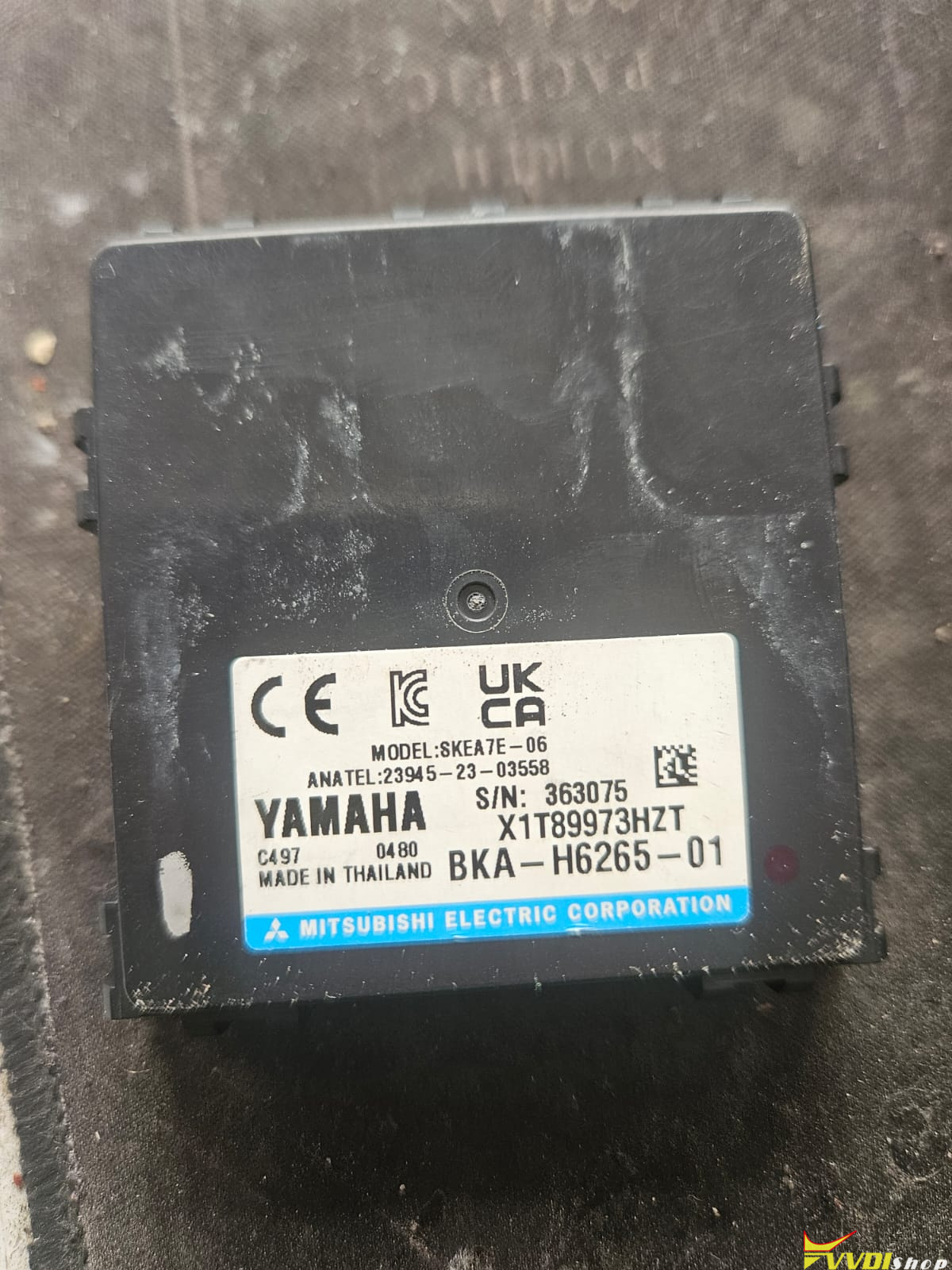

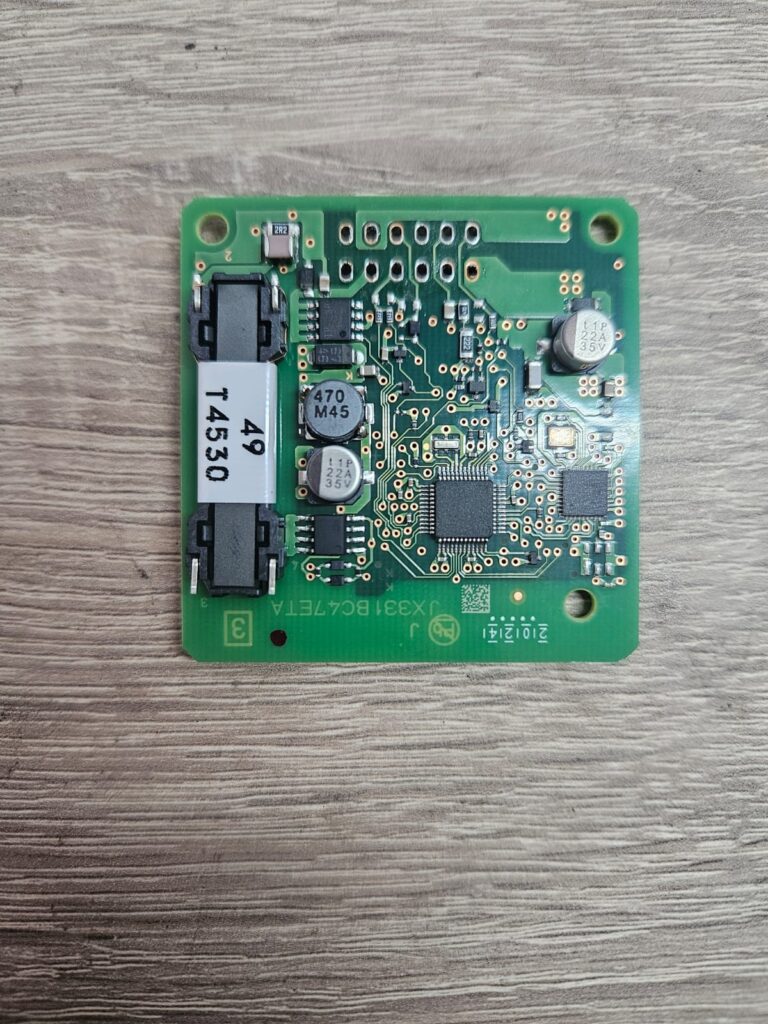

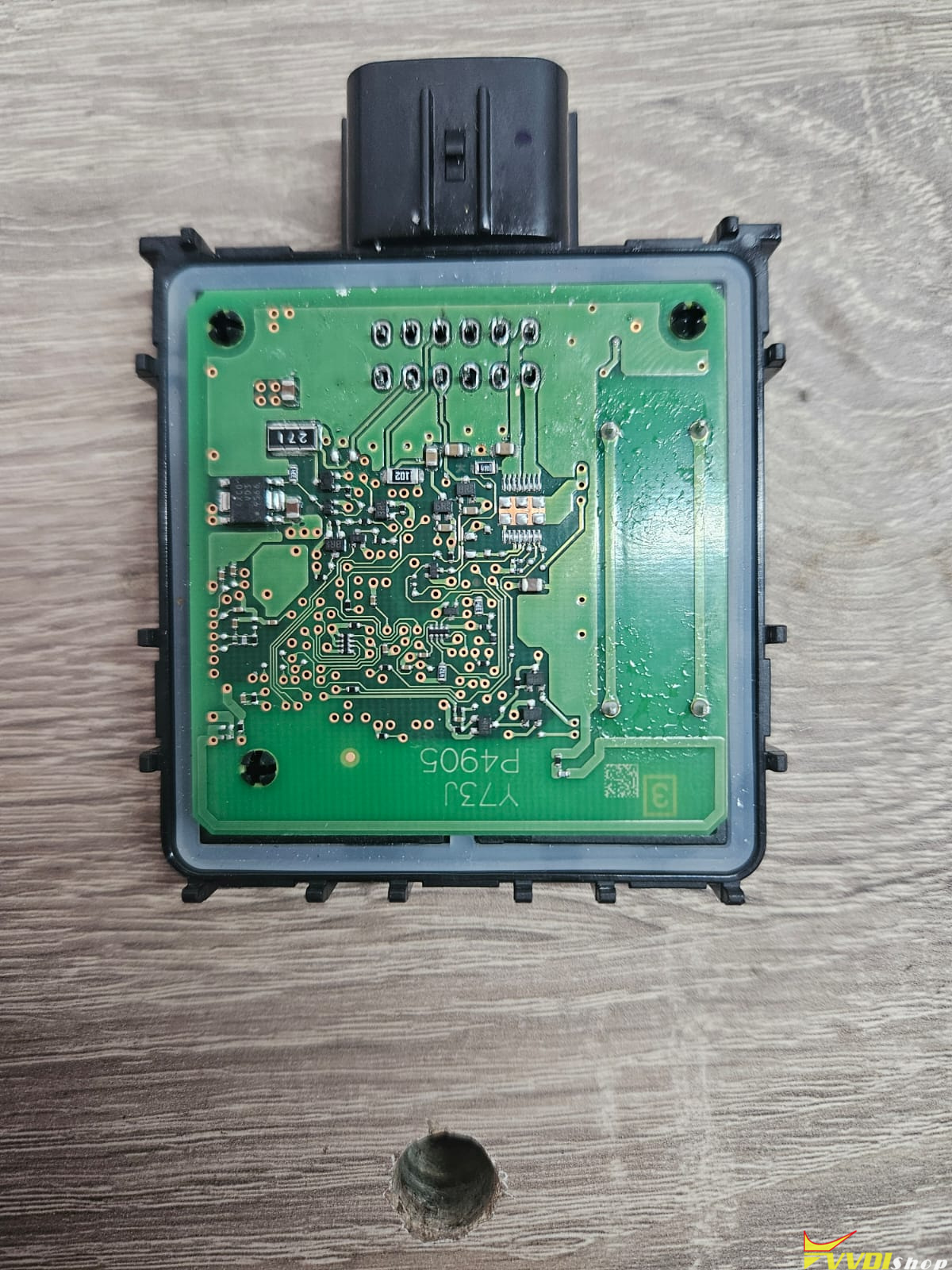

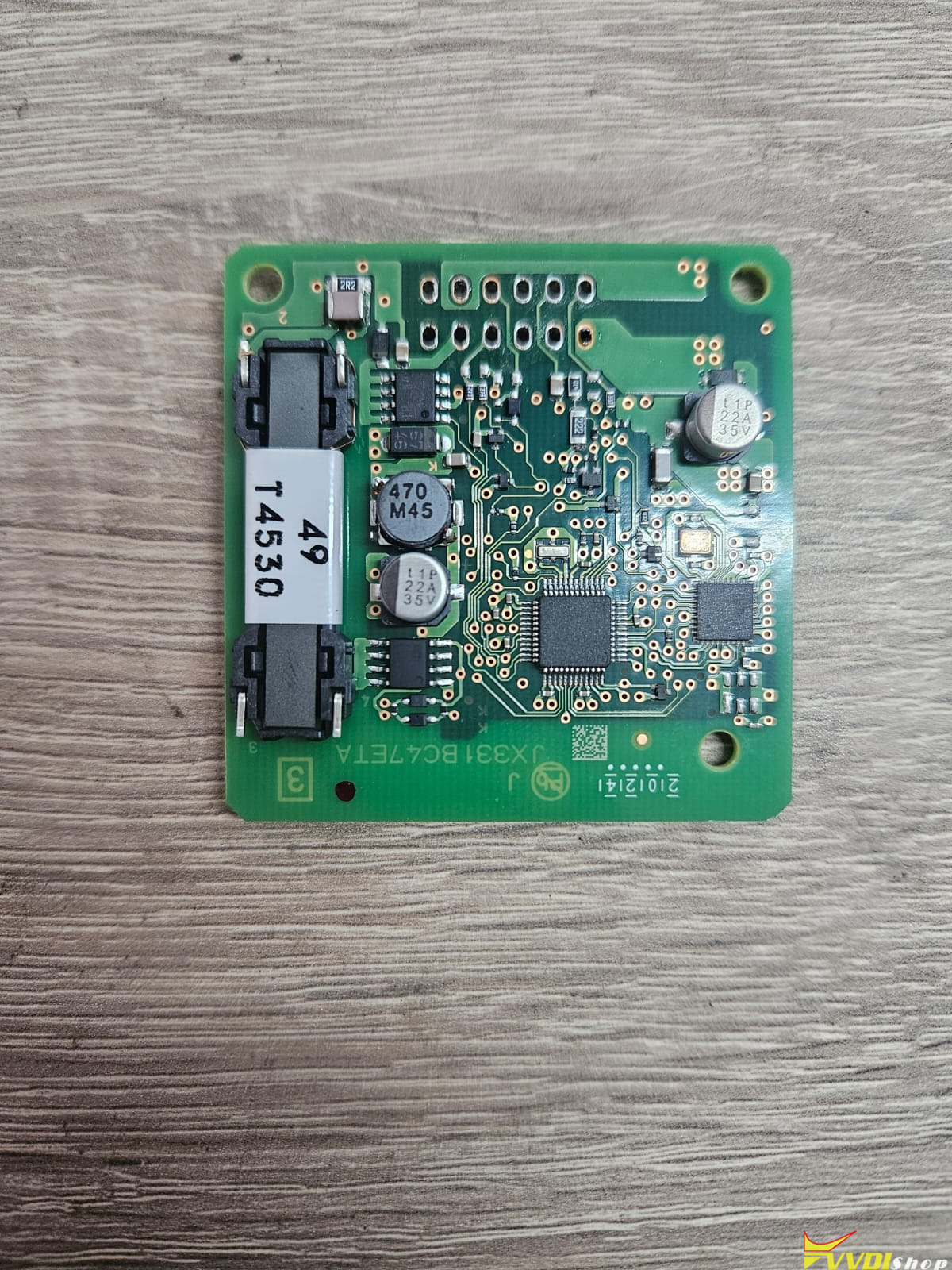

The keyless unit immo box (SCU) looks like this

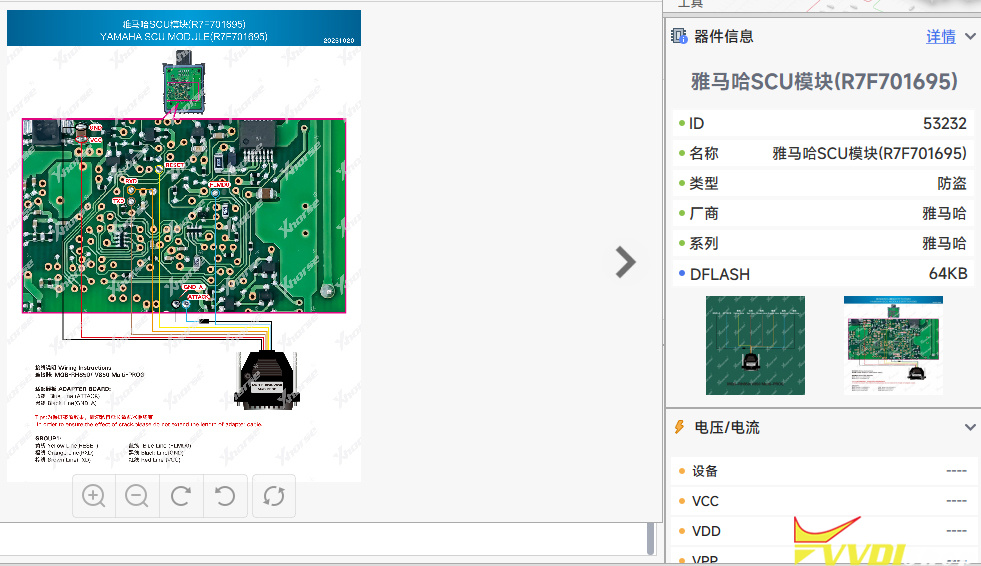

In multi prog software, select Yamaha SCU Module R7F701695.
ID53232
Processor: R7F701695

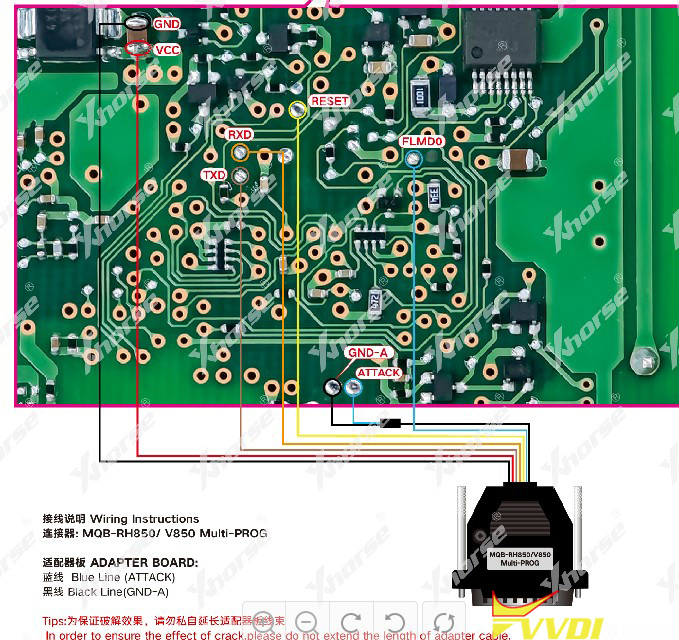

Here is the wiring diagram.
Requires MQB RH850/V850 adapter for multi prog.
