Xhorse Multi Prog Pinout to VAG Airbag 3D0 909 601 E

April 9, 2026 VVDISHOP Xhorse ECU programmer 0

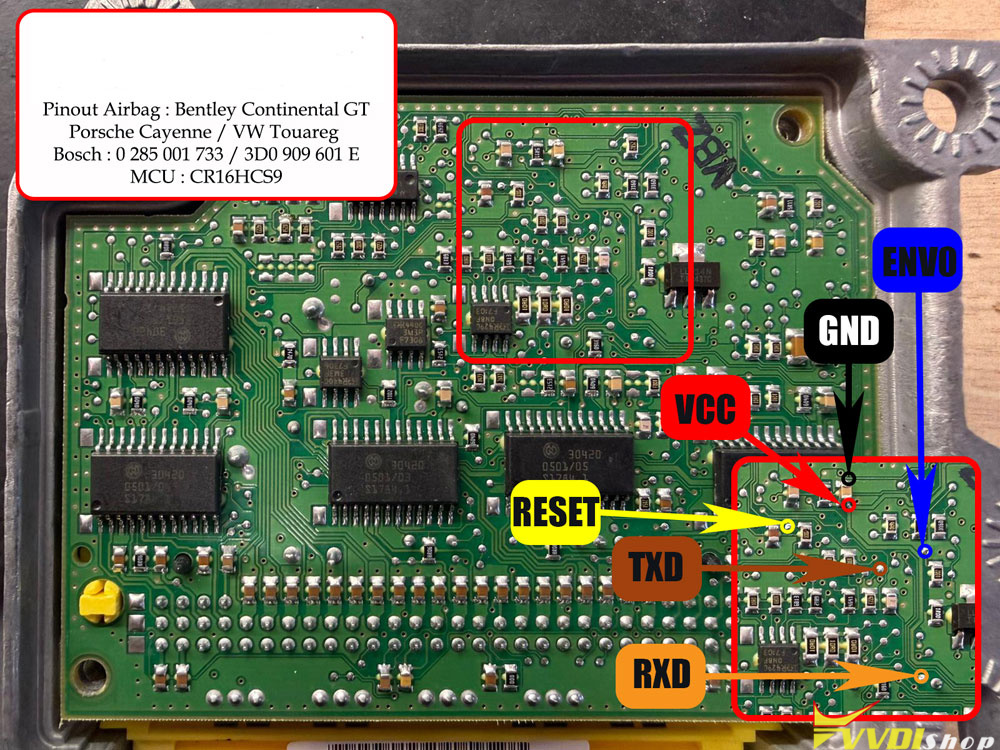

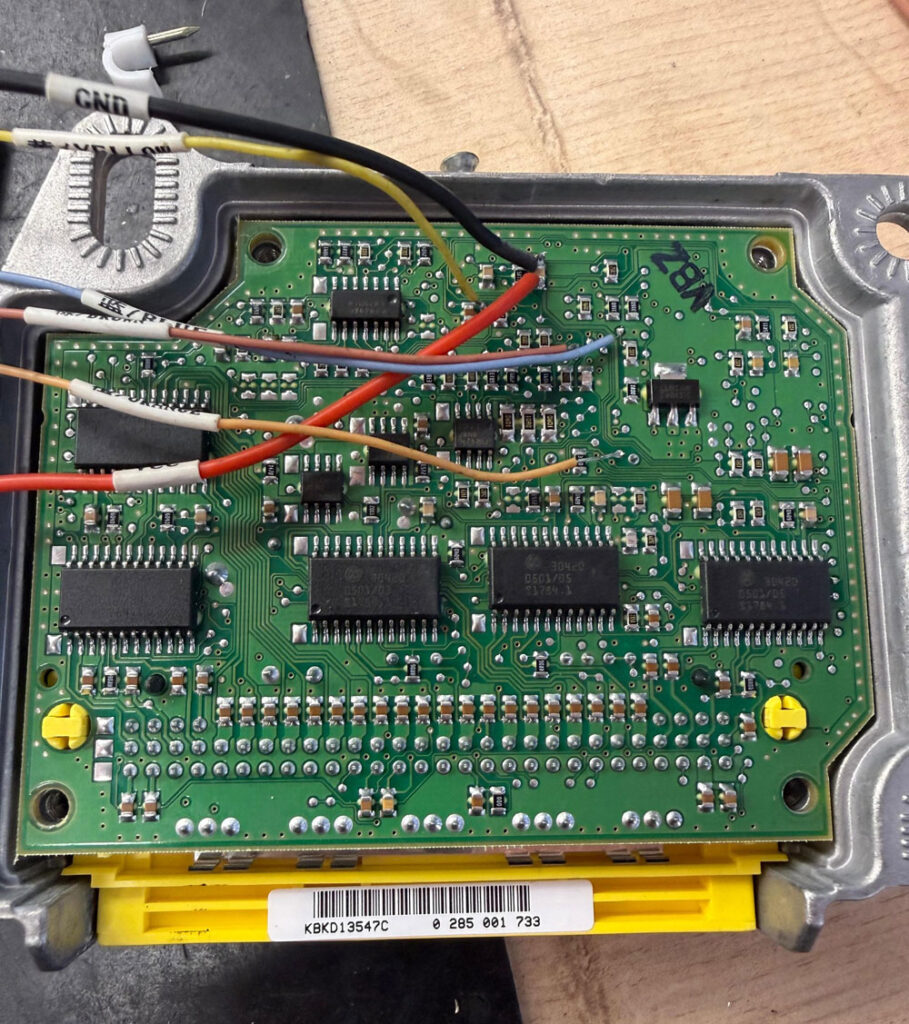

Here comes the Xhorse Multi Prog wiring pinout for Bentley Continental GT/Porsche Cayenne / VW Touareg airbag.

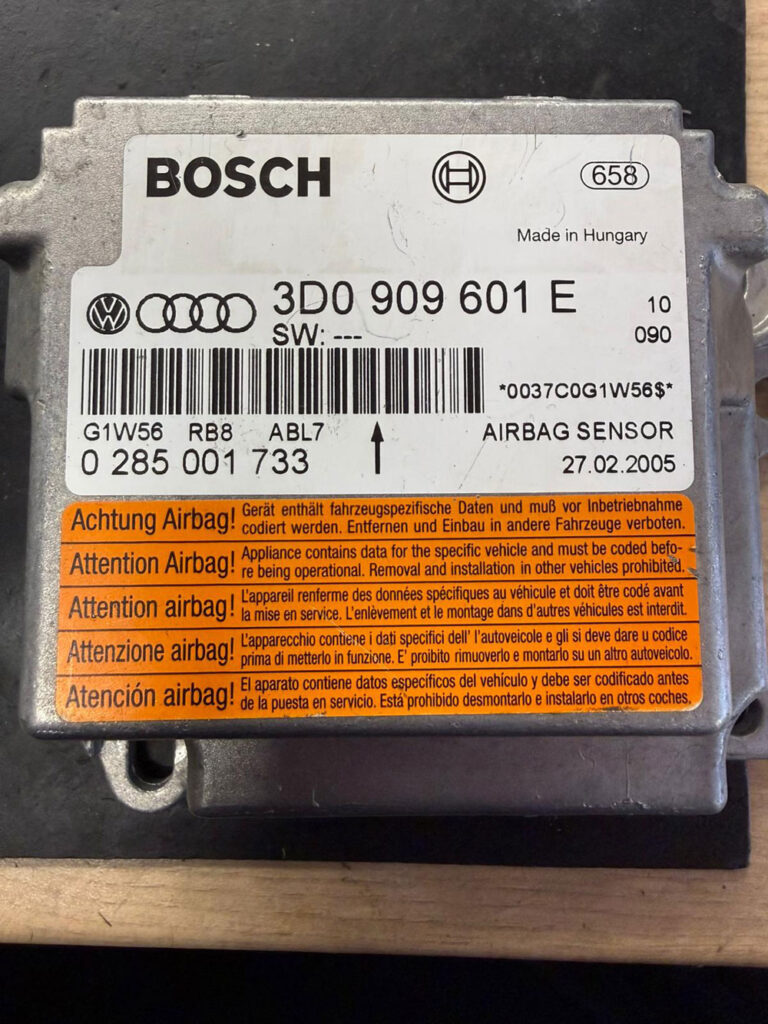

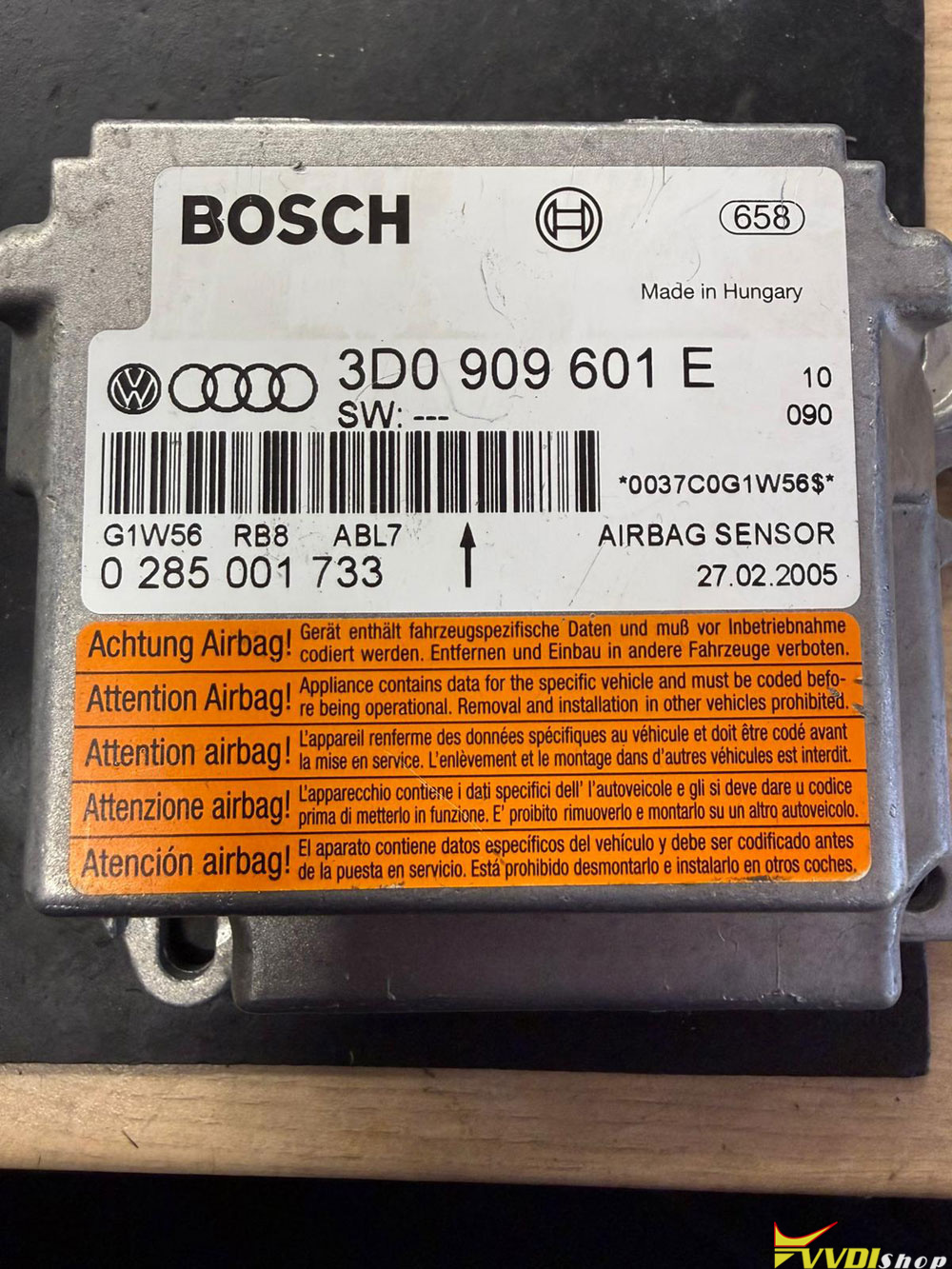

SRS part number:

Bosch : 0 285 001 733 / 3D0 909 601 E

MCU: CR16HCS9

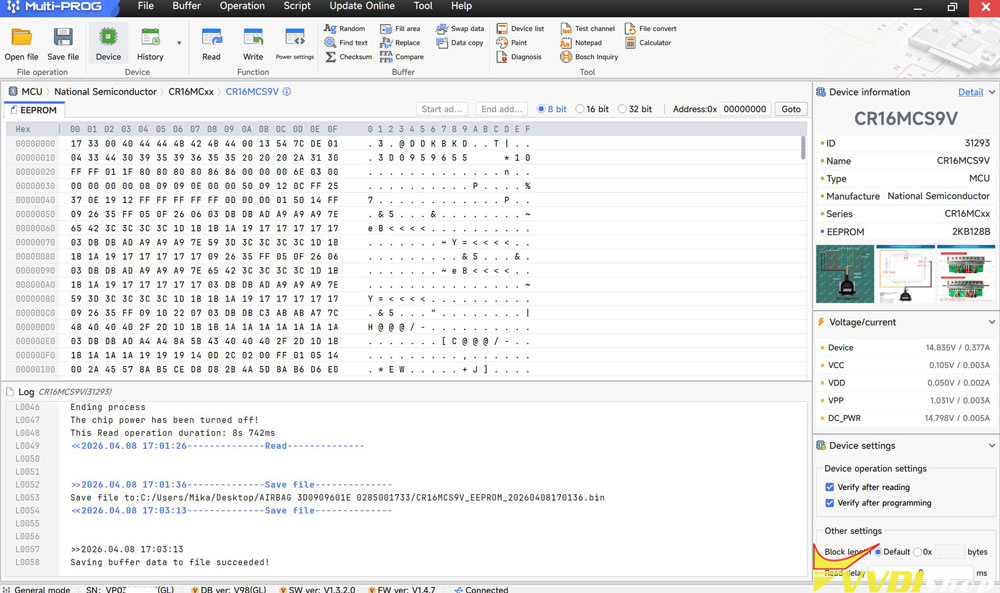

In Multiprog software, select  MCU- National Semiconductor- CR16MCxx- CR16MCS9V.

Credit to Mr. Ballongue.

xhorse multi prog audi airbag pinout 1 xhorse multi prog audi airbag pinout 2 xhorse multi prog audi airbag pinout 3 xhorse multi prog audi airbag pinout 4
