Xhorse Multi Prog Pinout to Renault Captur BCM

January 19, 2026 VVDISHOP Xhorse ECU programmer 0

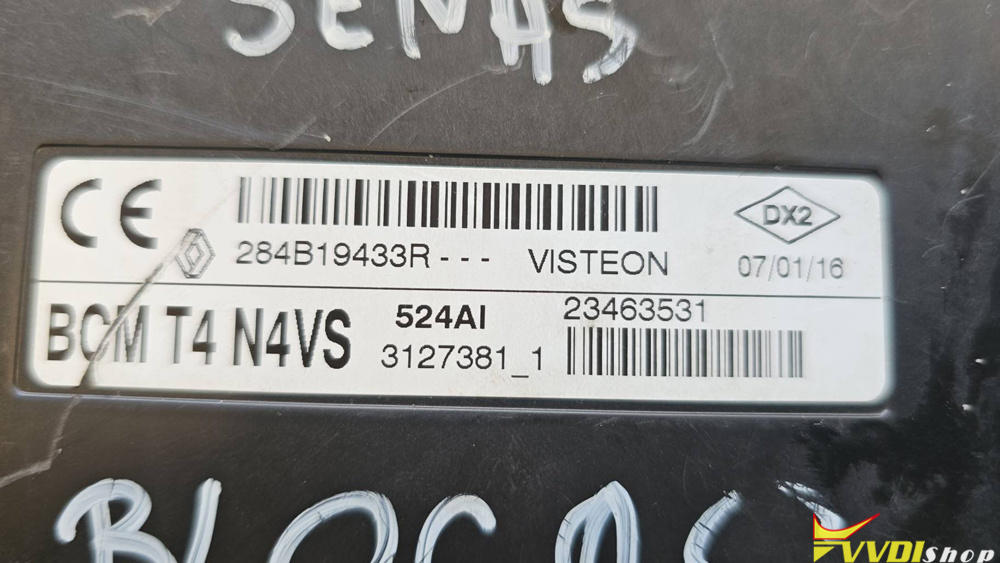

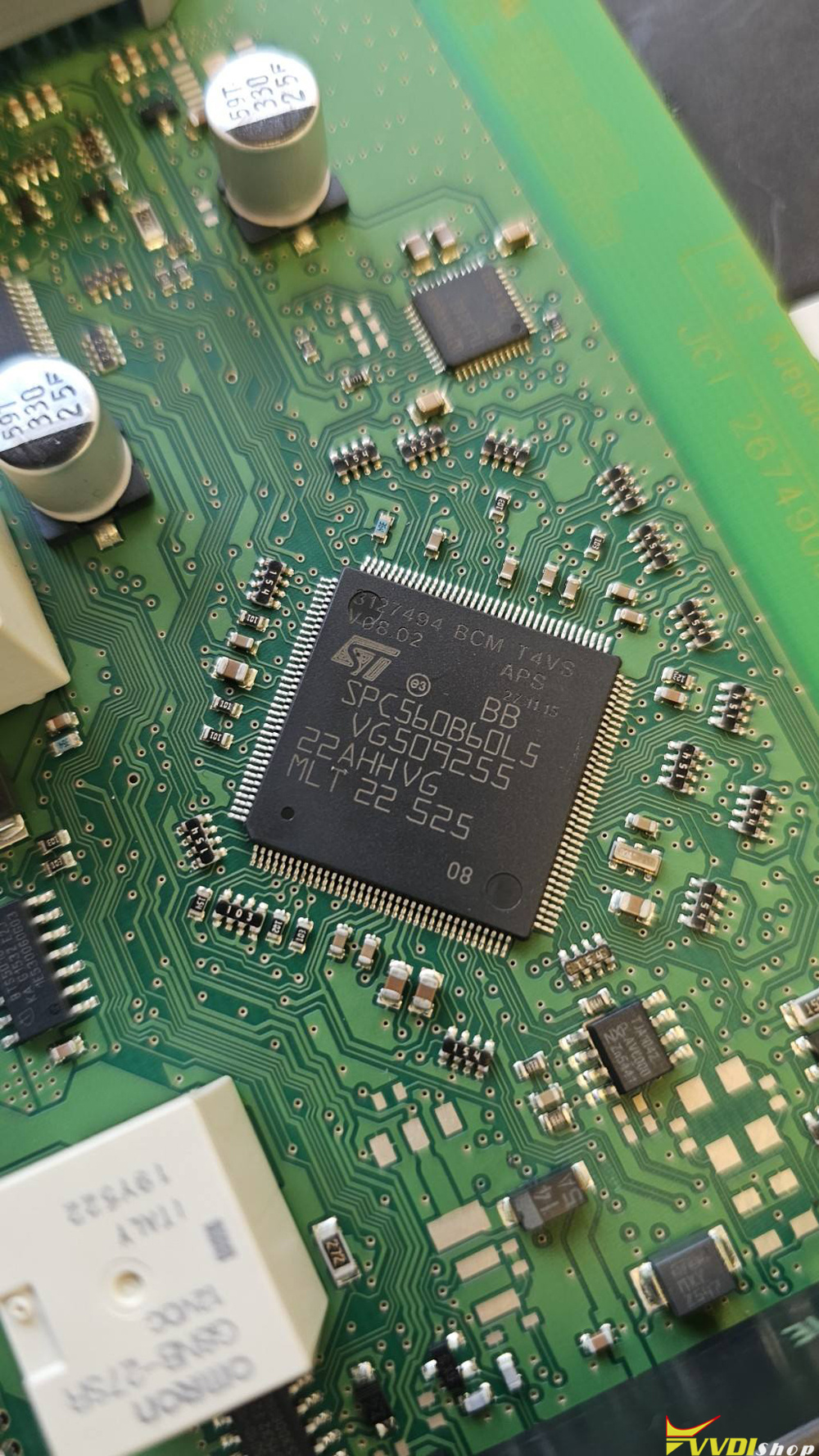

Trying to clone this BCM for a Renault Captur. Where to find the pinout for Xhorse Multi Prog?
xhorse multi prog renault captur bcm pinout 1 xhorse multi prog renault captur bcm pinout 2

Here it is.

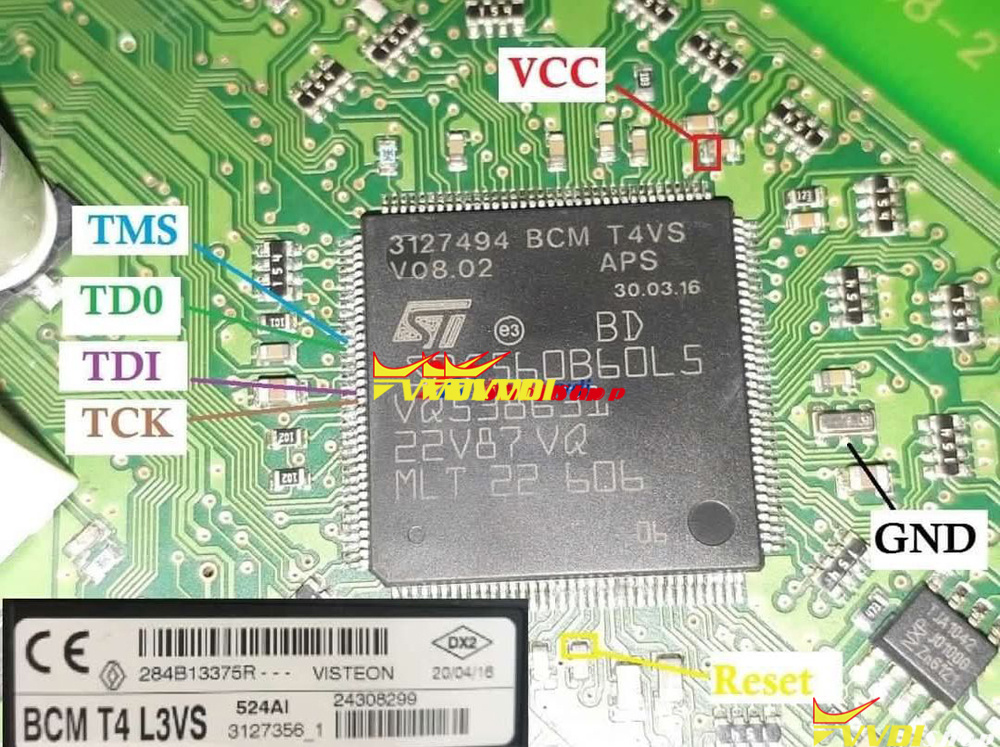

Multi prog pinout to Renault Captur BCM.

MCU Processor:  SPC560B60L5

xhorse multi prog renault captur bcm pinout 3
