Xhorse Multi Prog Pinout to Ford Focus MK3 BCM (EEPROM 95320)

January 8, 2026 VVDISHOP Xhorse ECU programmer 0

Need to clone Ford Focus MK3 BCM module. Where can i find the pinout for Xhorse Multi Prog?

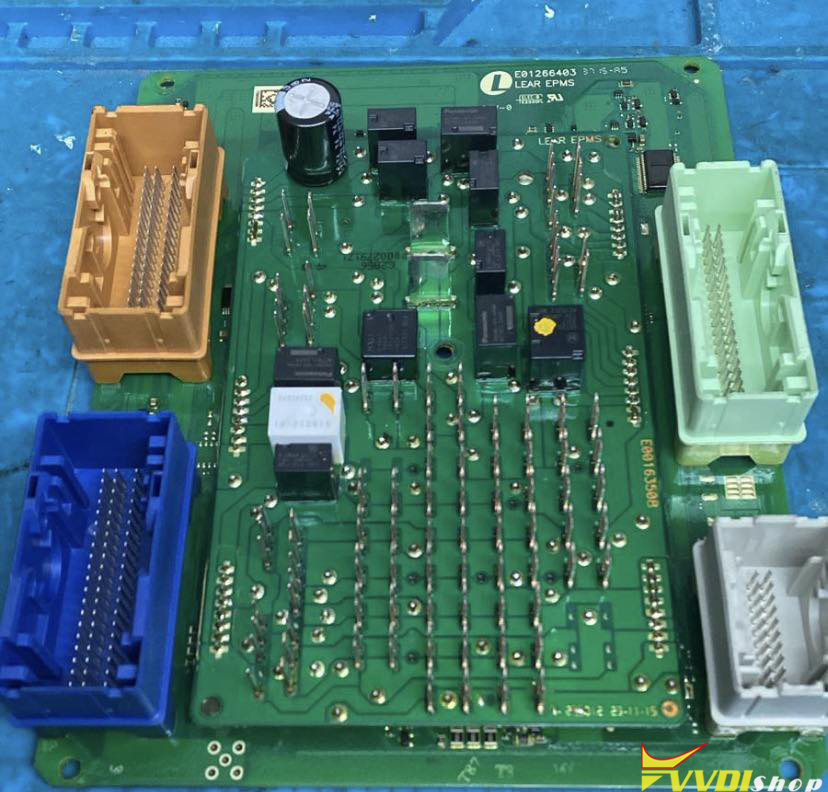

xhorse multi prog ford focus mk3 bcm pinout 1

xhorse multi prog ford focus mk3 bcm pinout 2

Here it is.

Xhorse Multi-Prog
dv6t-14c094-aj CLONE
Ford BCM 2010
Focus mk3 – C-Max mk2
EEPROM 95320 – C-Shadow
CPU SPC560B647L – CFLASH

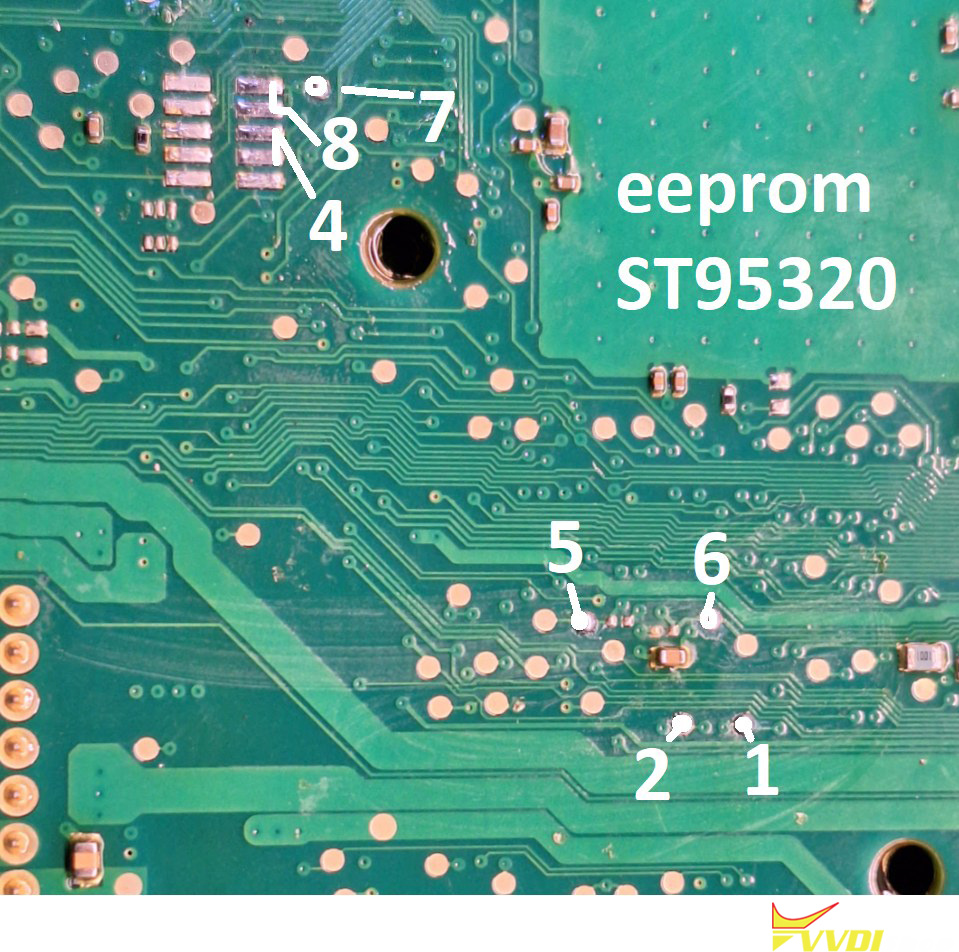

xhorse multi prog ford focus mk3 bcm pinout 3

xhorse multi prog ford focus mk3 bcm pinout 4

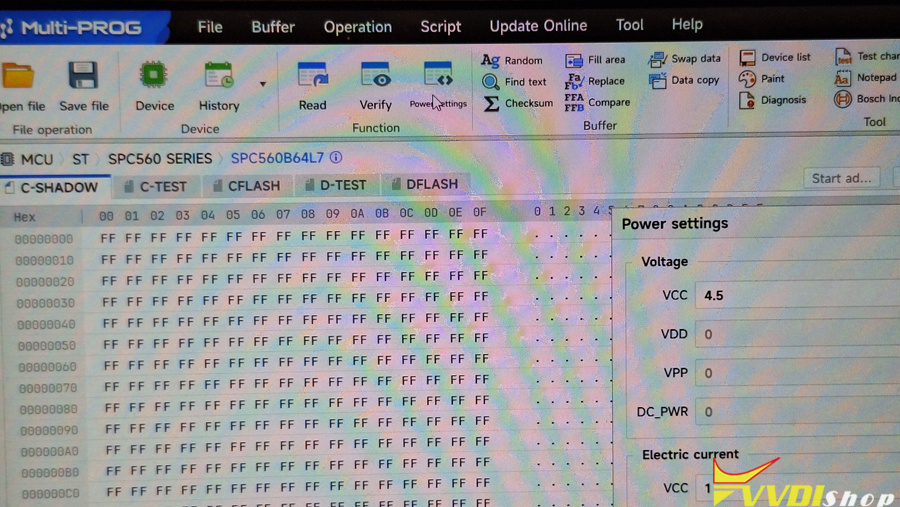

xhorse multi prog ford focus mk3 bcm pinout 5
