Xhorse BMW G Series BDC2 Adapter Installation & Removal Guide

The XHORSE XDNPBGGL BMW BDC2 Adapter is designed for a secure and effortless connection to the BMW G chassis BDC module. Its 3 alignment pins ensure precise positioning, while the locking clips guarantee a stable fit. Follow this step-by-step guide for safe installation and removal.



Safe Connection Steps

  1. Precise Alignment

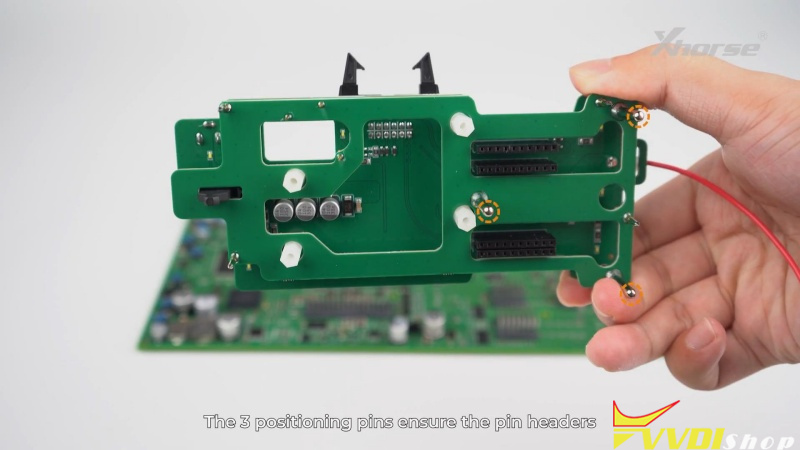

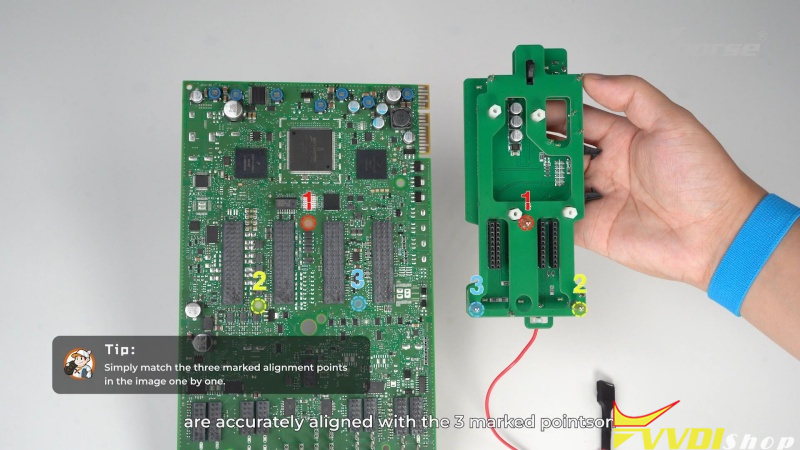

Align the 3 positioning pins on the adapter with the marked points on the BMW G chassis BDC module.



  1. Press & Lock

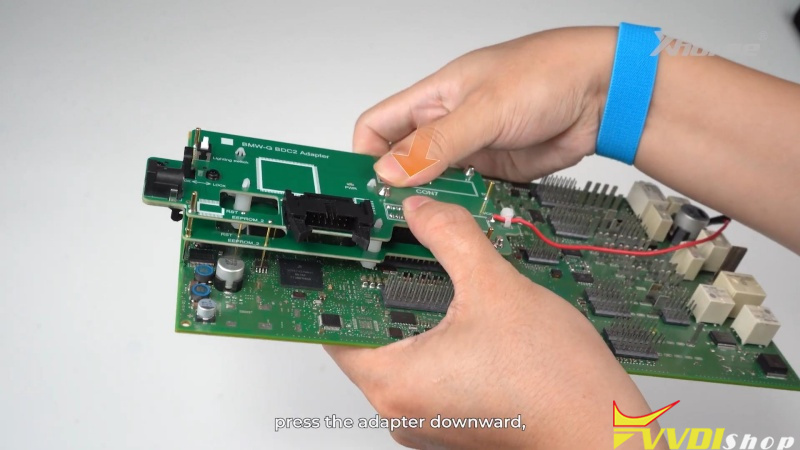

Once aligned, press the adapter downward firmly.

Engage the locking clips to secure the connection.

Xhorse Bmw G Series Bdc2 Adapter Installation Removal Guide (1)

Xhorse Bmw G Series Bdc2 Adapter Installation Removal Guide (2)

Xhorse Bmw G Series Bdc2 Adapter Installation Removal Guide (3)

Xhorse Bmw G Series Bdc2 Adapter Installation Removal Guide (4)

Easy Removal Steps

  1. Unlock the Clips

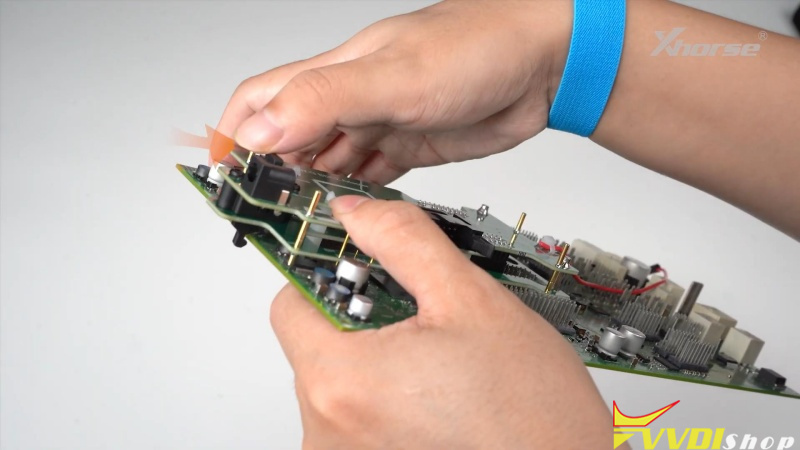

Release the locking clips on the adapter.



  1. Prepare the Module

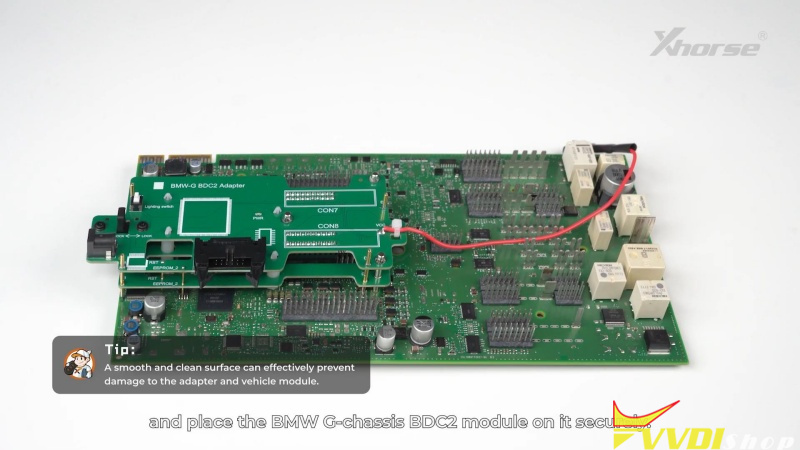

Place the BMW BDC module on a clean, flat surface for stability.



  1. Even Pressure

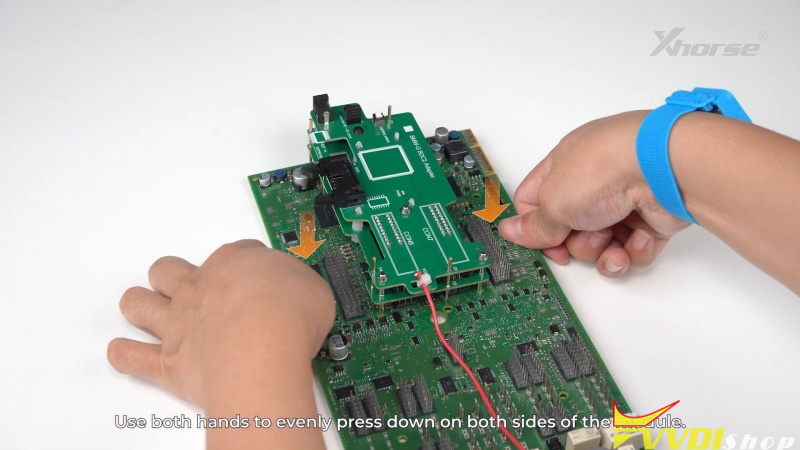

Use both hands to press down evenly on both sides of the module.

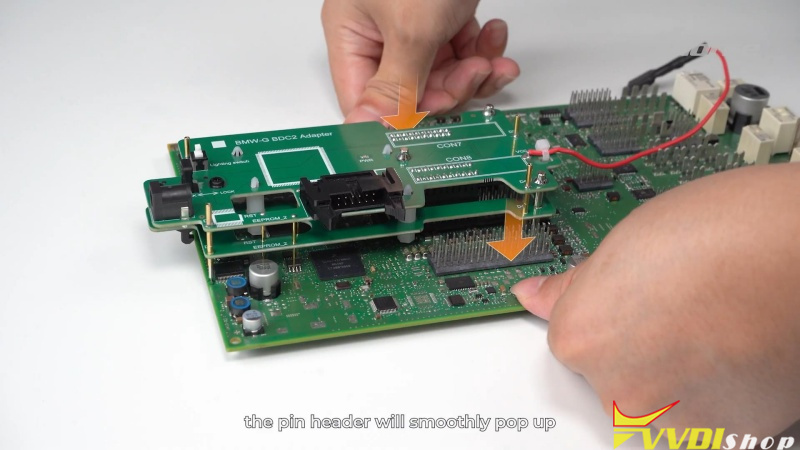

The pin header will smoothly disconnect from the adapter.



  1. Lift Straight Up

Gently lift the adapter vertically to avoid bending pins.

Xhorse Bmw G Series Bdc2 Adapter Installation Removal Guide (5)

Xhorse Bmw G Series Bdc2 Adapter Installation Removal Guide (6)

Xhorse Bmw G Series Bdc2 Adapter Installation Removal Guide (7)



Why Choose the XHORSE BMW BDC2 Adapter?

✅ No Force Needed – 3 alignment pins prevent bending and damage.
✅ Secure Locking – Clips ensure a stable connection.
✅ Safe Removal – Even pressure prevents injury or module damage.



Supported BMW Models

Series Model Year Range
5 Series G30 2016.11 – 2020.06
5 Series G31 2017.03 – 2020.06
5 Series G38 2017.05 – 2020.08
6 Series G32 2017.07 – 2020.06
7 Series G11/G12 2015.07 – 2019.02
X3 F97 2019.04 – 2021.07
X3/IX3 G08 2018.05 – 2021.08
X3 G01 2017.12 – 2021.07
X4 G02 2018.04 – 2021.07
X4 F98 2019.04 – 2021.07
M5 F90 2017.11 – 2020.06



*Works with KEY TOOL PLUS, KEY TOOL MIDI or VVDI2. required to activate BMW-G BDC2 function.
