BMW FRM2 ST10F269 Pinout to Multi Prog & VVDI Prog

November 14, 2025 VVDISHOP Xhorse ECU programmer 0

Here comes the VVDI diagram connection for BMW FRM2 (Footwell Module).

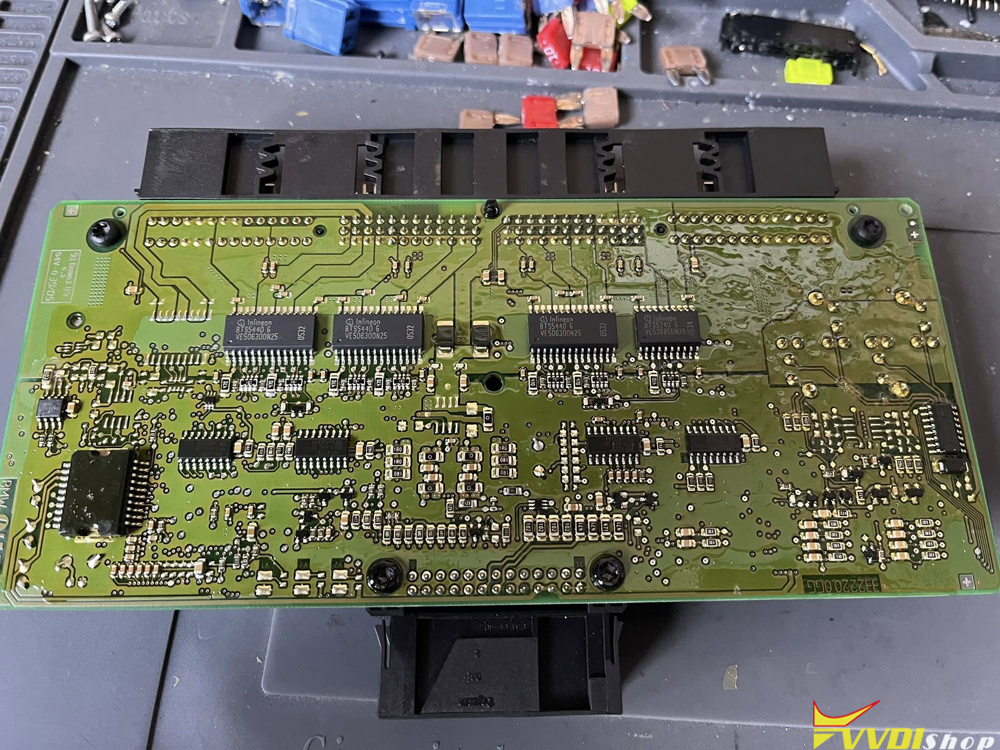

multi prog FRM2 st10f269 pinout 1

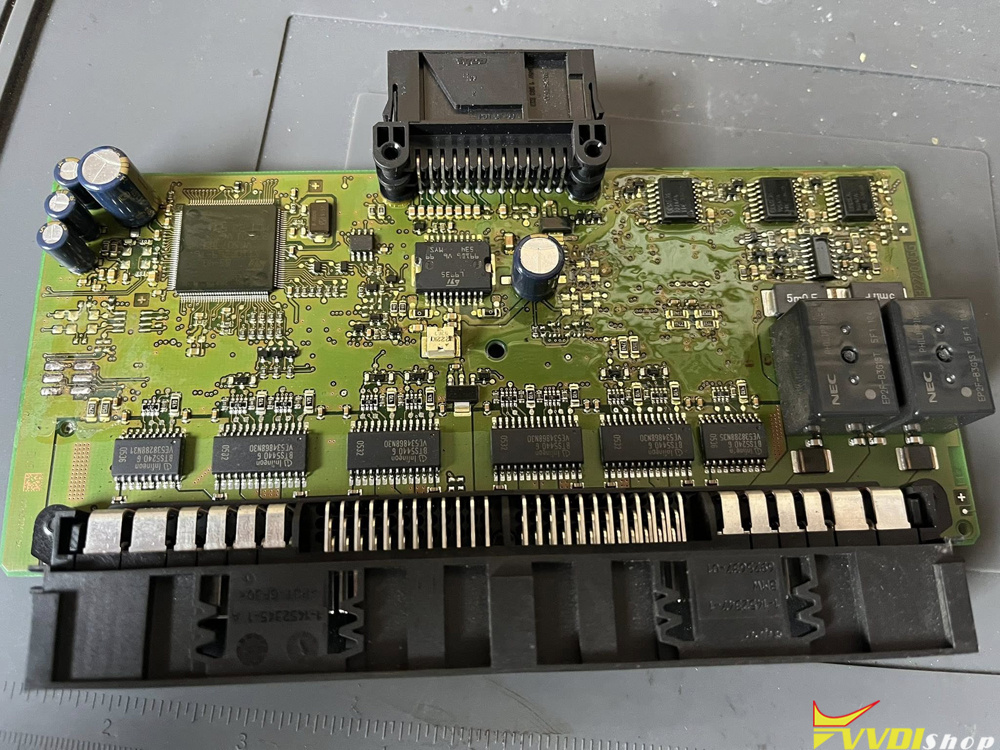

multi prog FRM2 st10f269 pinout 2

Pinout FRM2 st10f269 xhorse Multi prog & vvdi Prog

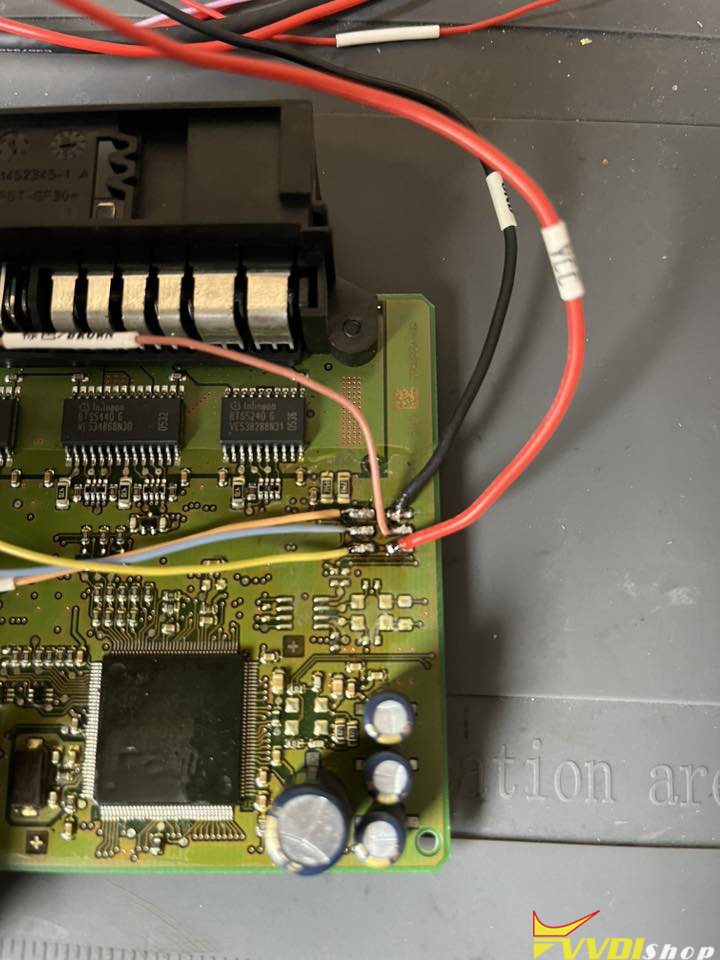

multi prog FRM2 st10f269 pinout 3

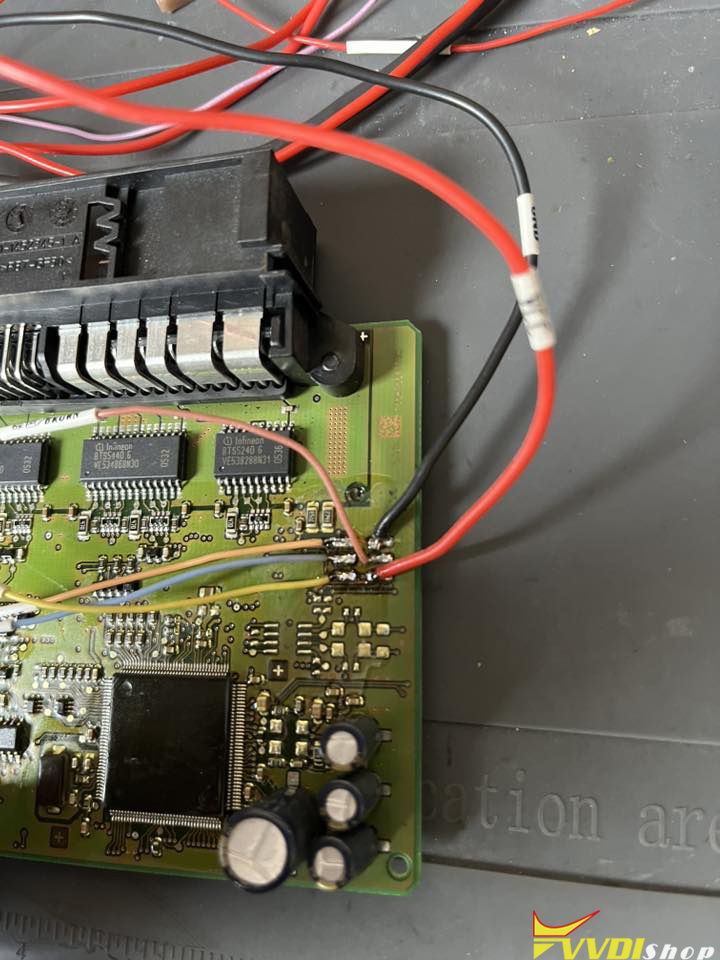

multi prog FRM2 st10f269 pinout 4
You need proper flash and eeprom for your specific FRM. Only FRM3 is possible to recreate based on eeprom.

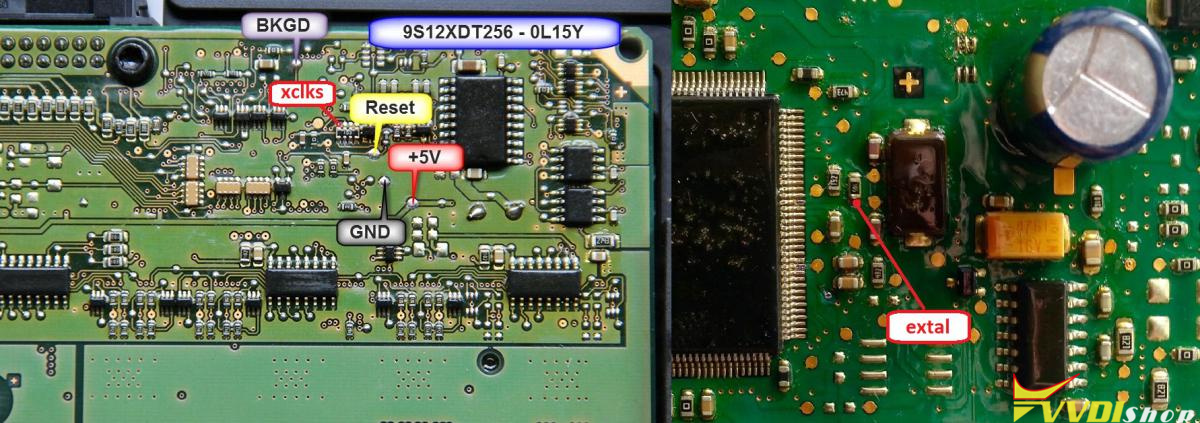

FYI: If it is FRM2 with MC9S12XDT256 – OL15Y, here is the pinout to vvdi.

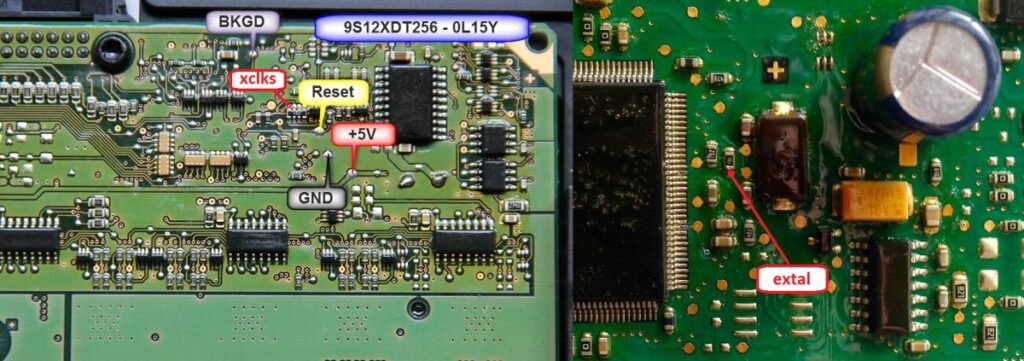

FRM 2 pinout
