How to read Skoda Fabia Simos PCR 2.1 ECU with Xhorse Multi Prog programmer on bench mode.
Reading the Simos PCR 2.1 ECU
Step 1: Selecting the ECU
-
Navigate to the ECU section in the software and search for Skoda Fabia.
-
Select the Simos PCR 2.1 (a Continental ECU) from the list.
Step 2: Pinout Connections
-
Refer to the pinout diagram provided in the software.
-
Use the included ECU adapter and circular connectors to link the Multiprog to the ECU.
-
Ensure all connections are secure before proceeding.

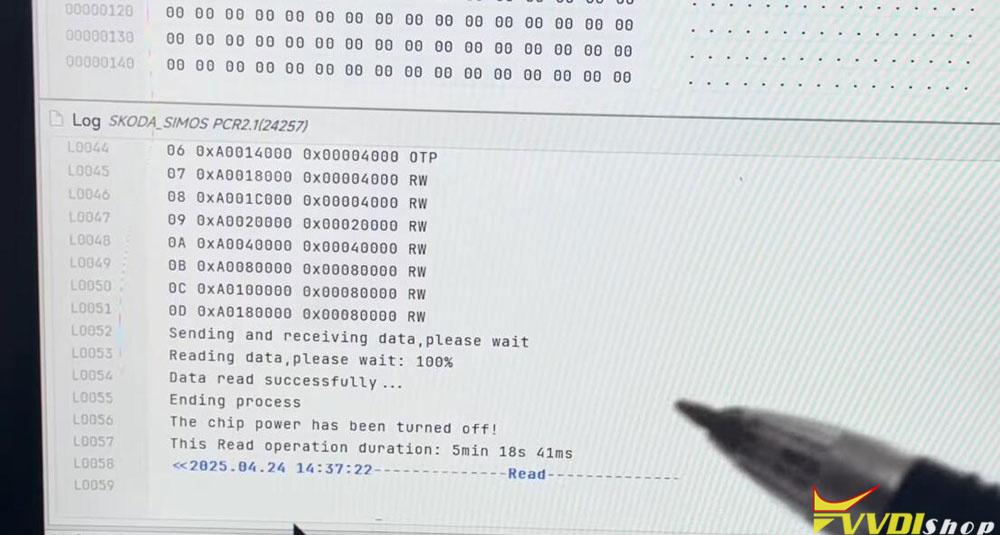

Step 3: Read Internal Flash Data
-
Click “Read” to begin the Flash reading process.
-
The tool communicates with the ECU, displaying progress in real-time.
-
The internal flash read takes approximately 5 minutes and 18 seconds.
- Save flash data.
Step 4: Read EEPROM Data
- The external EEROM read is faster at 43 seconds.
- Save the eeprom data.
